Dahua HDCVI series User Manual

HDCVI Series DVR User’s Manual
67
mouse, burning DVD-ROM and etc.
10
A
RS485 （ RS-485 ）
communication port
RS485_A port. It is the cable A. You
can connect to the control devices
such as speed dome PTZ.
B
RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
11
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
12
Network port
100M Ethernet port
2.2.21 HCVR41XXHS-S2/ HCVR2108HS-S2 Series

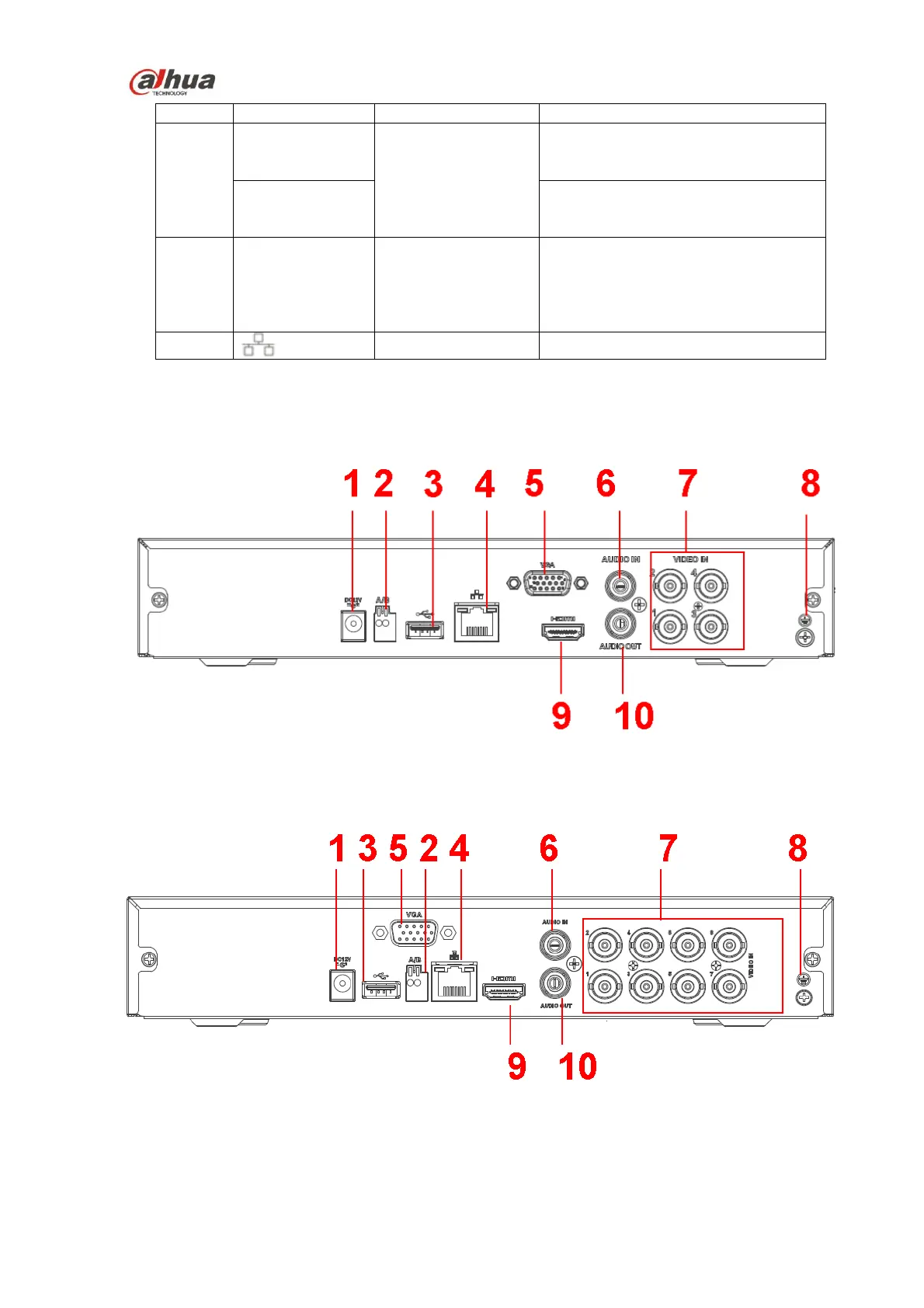

The HCVR4104HS-S2 series rear panel is shown as below. See Figure 2-48.
Figure 2-48
The HCVR4108HS-S2/HCVR2108HS-S2 series rear panel is shown as below. See Figure 2-49.
Figure 2-49
The HCVR4116HS-S2 series rear panel is shown as below. See Figure 2-50.
