Figure 2-19

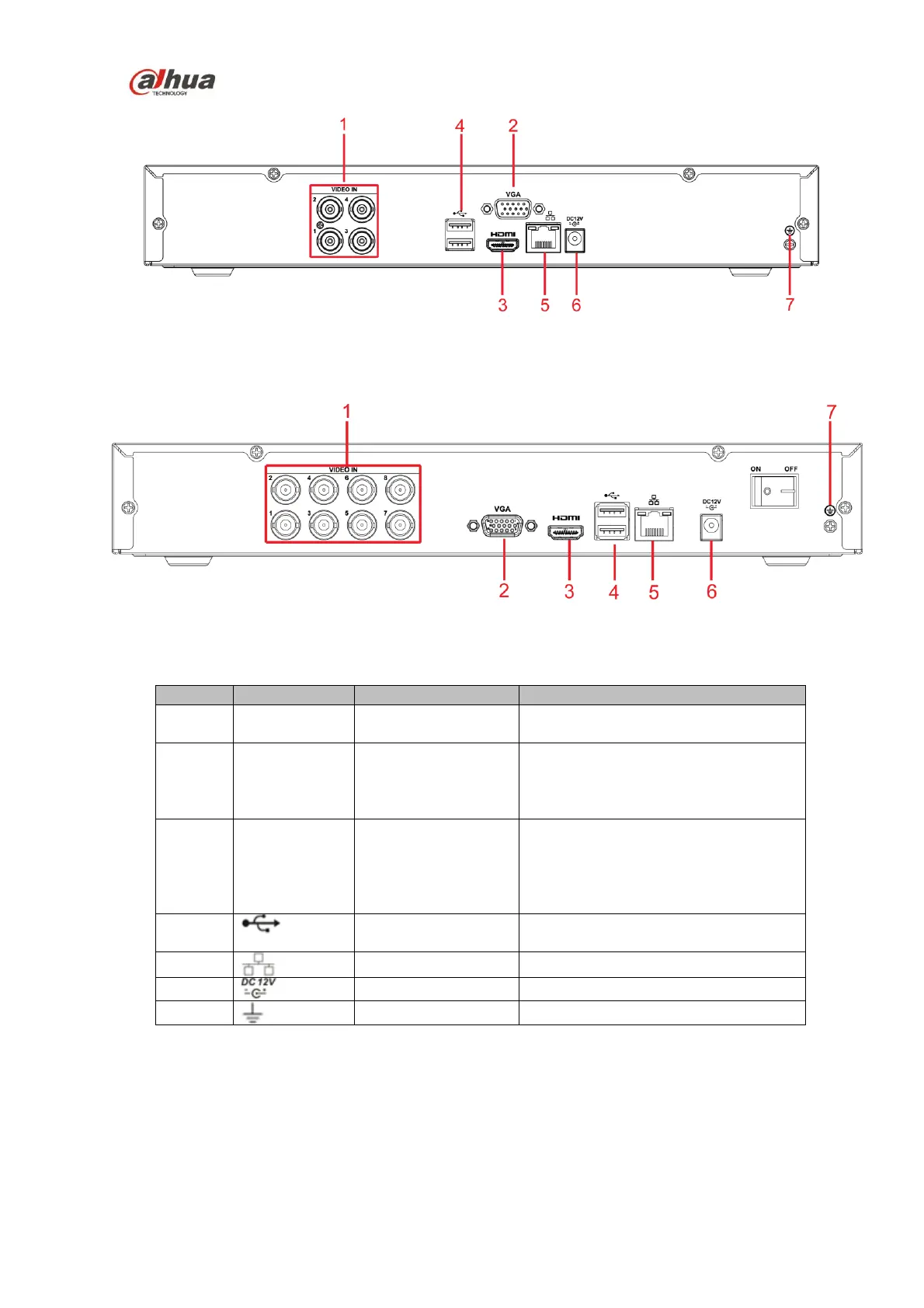

The HCVR5108HC series rear panel is shown as below. See Figure 2-20.
Figure 2-20
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
3
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
4
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
5
Network port
100M Ethernet port
6
Power input port
Input 12V DC.
7
GND
Ground end
2.2.10 HCVR5104HC-V2/HCVR5108HC-V2/HCVR5116HC-V2 Series
The HCVR5104HC-V2 series rear panel is shown as below. See Figure 2-21.
