Figure 2-21

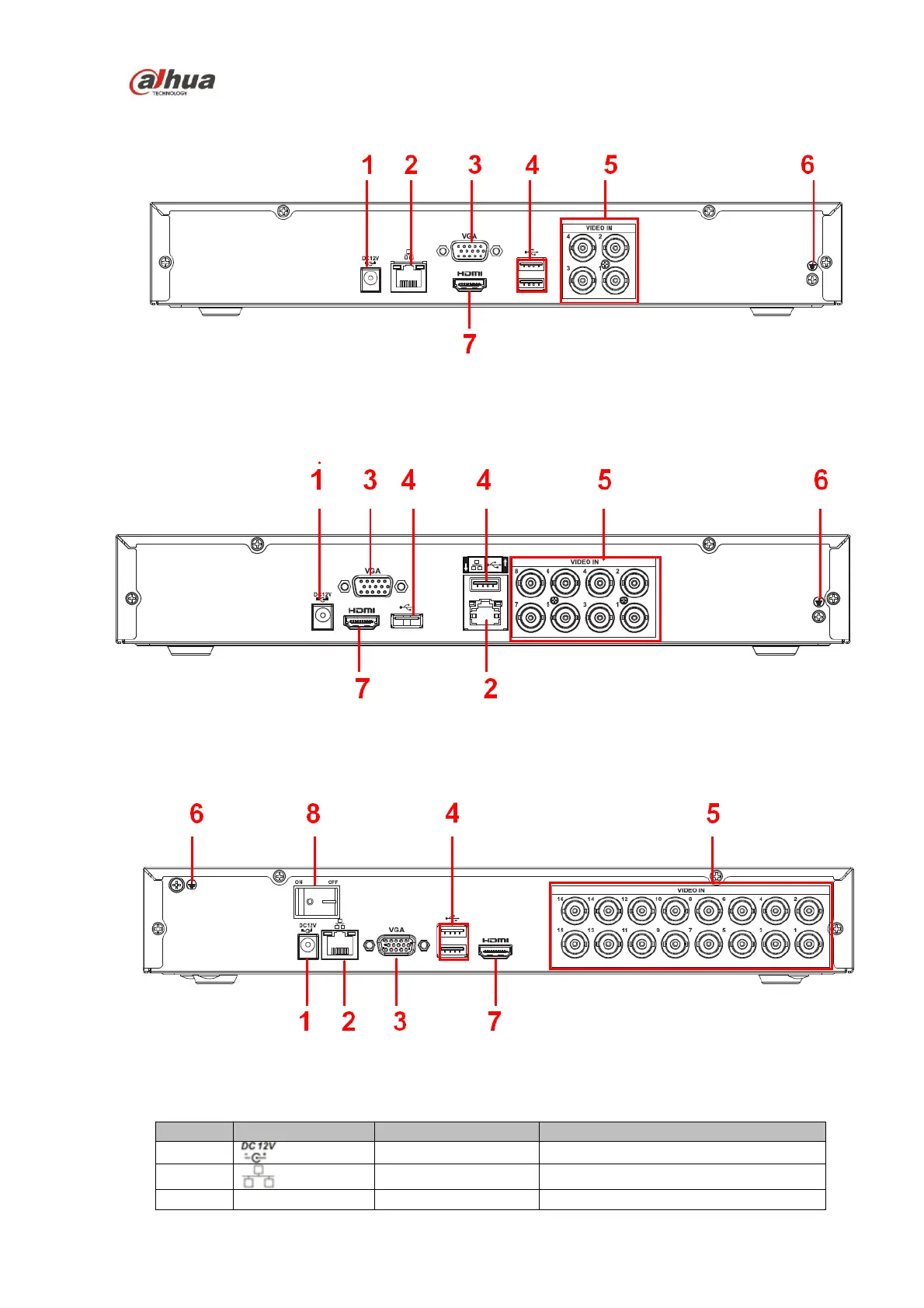

The HCVR5108HC-V2 series rear panel is shown as below. See Figure 2-22.
Figure 2-22
The HCVR5116HC-V2 series rear panel is shown as below. See Figure 2-23.
Figure 2-23
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power input port
Input 12V DC.
2
Network port
100M Ethernet port
3
VGA
VGA video output
VGA video output port. Output
