Figure 2-42

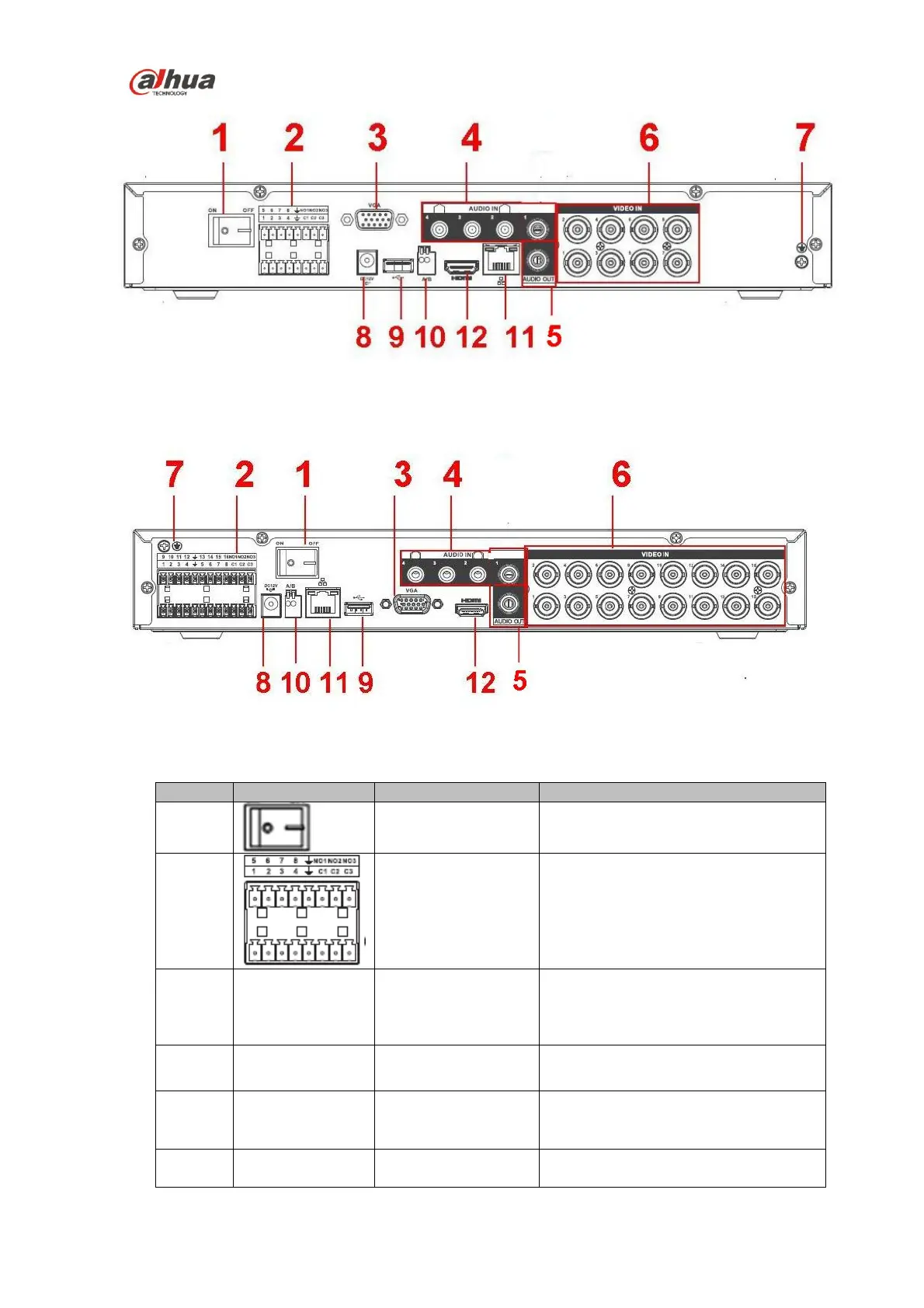

The HCVR5116HE-S2 series rear panel is shown as below. See Figure 2-43.
Figure 2-43
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off button
Power on/off button.
2
Alarm input/Alarm
output
Input/output alarm signal.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
4
AUDIO IN
Audio input port
Connect to audio input device such
as speaker.
5
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
6
VIDEO IN
Video input port
Connect to analog camera, video
input signal.

Dahua HDCVI series Specifications

General

HDD Interface	SATA
Video Compression	H.264/H.265
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Remote Access	DMSS
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity	10% to 90% (non-condensing)
