97
Name
Function
PoE
PORTS
/
Bult-in Switch. Support PoE.
The 4 PoE series product supports total 48V 50W.
The 8 PoE series product supports total 48V 120W.
The 16 PoE series product supports total 120W. One
PoE port max supports 15W.

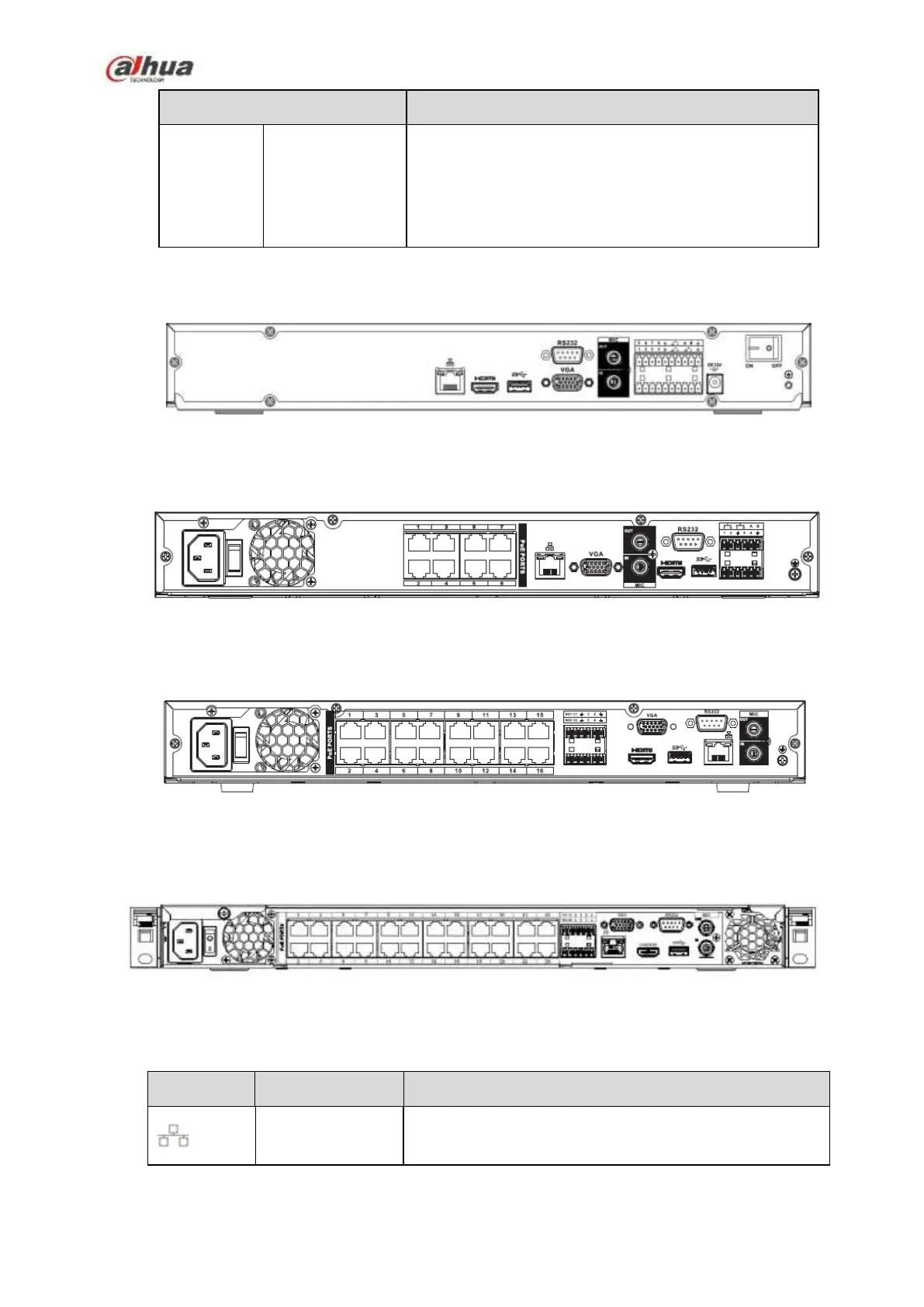

2.2.11 NVR42-4K/52-4KS2/52-8P-4KS2/52-16P-4KS2/5224-24P-4KS2 Series
The NVR42-4K/52-4KS2 series rear panel is shown as below. See Figure 2-44.
Figure 2-44
The NVR52-8P-4KS2 series rear panel is shown as below. See Figure 2-45.
Figure 2-45
The NVR52-16P-4KS2 series rear panel is shown as below. See Figure 2-46.
Figure 2-46
The NVR5224-24P-4KS2 series rear panel is shown as below. See Figure 2-47.
Figure 2-47
Please refer to the following sheet for detailed information.
Icon
Port Name
Function
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
