Dahua NVR100 series User Manual

103
Figure 2-52

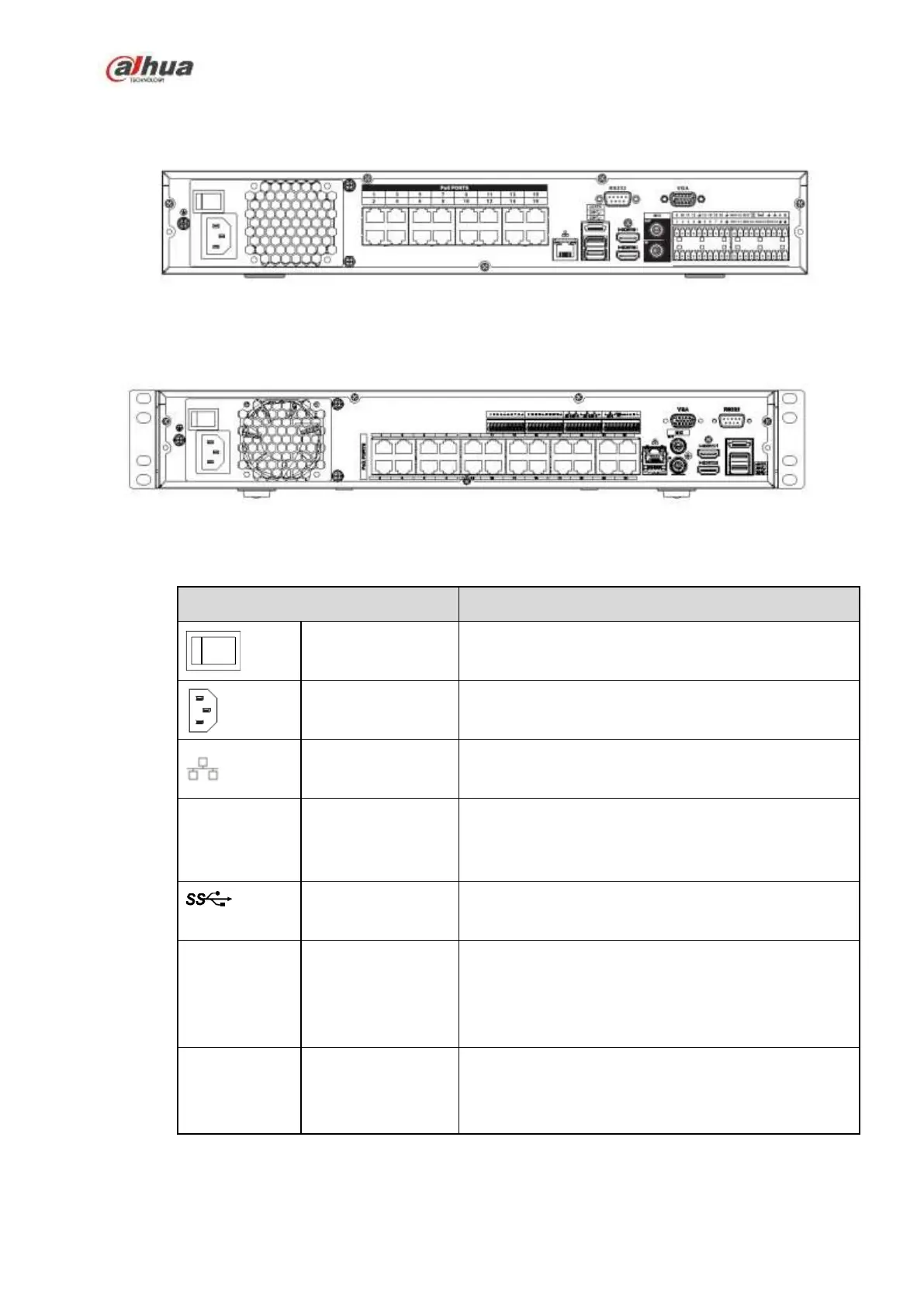

The NVR54-16P-4KS2/NVR58-16P-4KS2 series rear panel is shown as below. See Figure 2-53.
Figure 2-53
The NVR5424-24P-4KS2 series rear panel is shown as below. See Figure 2-54.
Figure 2-54
Please refer to the following sheet for detailed information.
Name
Function
Power switch
Power on-off button
Power input port
Input AC 100~240V.
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
eSATA
eSATA port
External SATA port. It can connect to the device of
the SATA port. Please jump the HDD when there is
peripheral connected HDD.
USB3.0 port
USB3.0 port. Connect to mouse, USB storage
device, USB burner and etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4b.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as
microphone, pickup.
