Dahua NVR100 series - Page 249

239

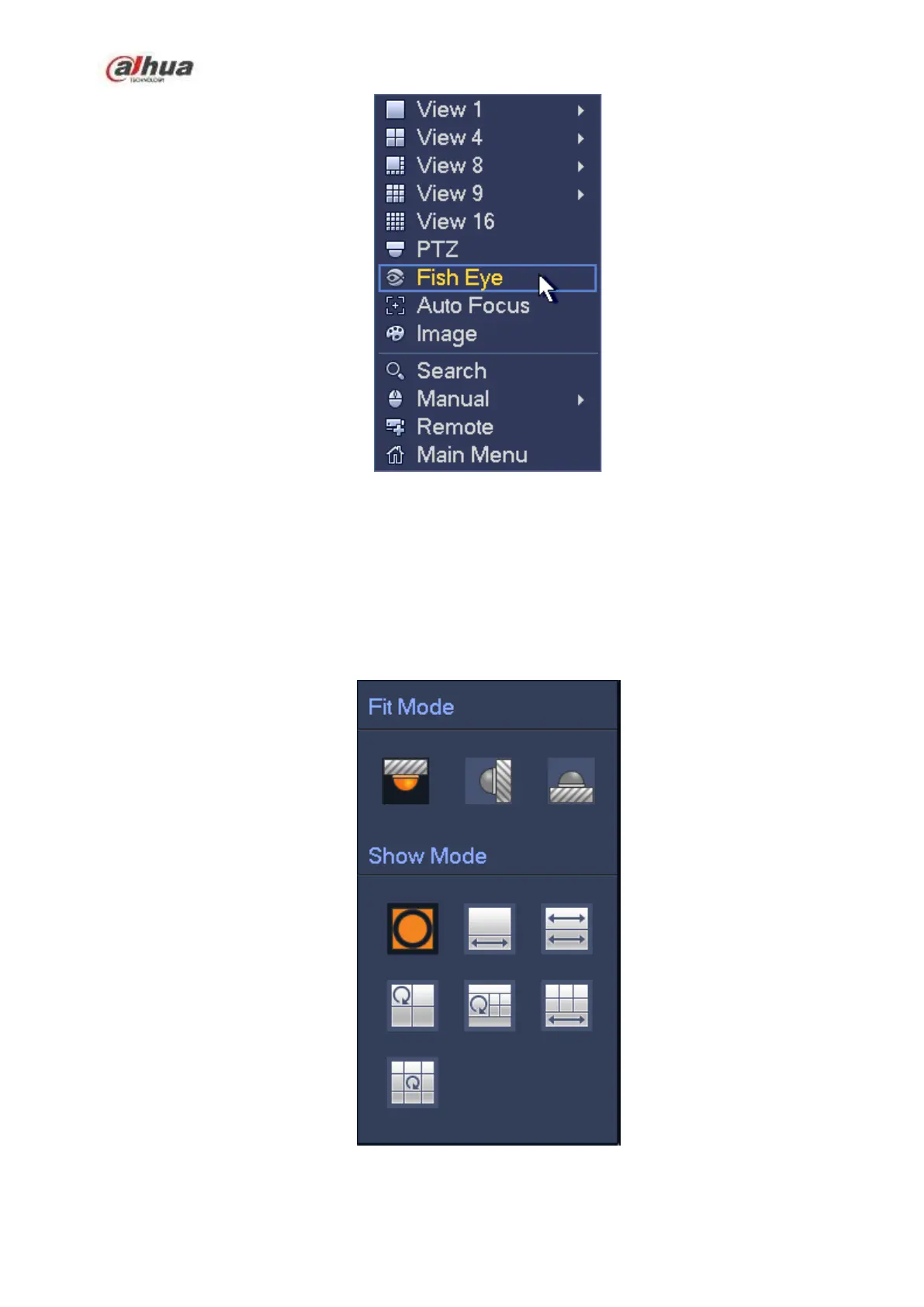

Figure 4-81
Now you can see an interface shown as in Figure 4-82. You can set fish eye installation mode and display
mode.
Note:
 For the non-fish eye channel, system pops up dialogue box to remind you it is not a fish eye channel
and does not support de-warp function.
 If system resources are insufficient, system pops up the corresponding dialogue box too.
Figure 4-82
