Dahua NVR100 series User Manual

88

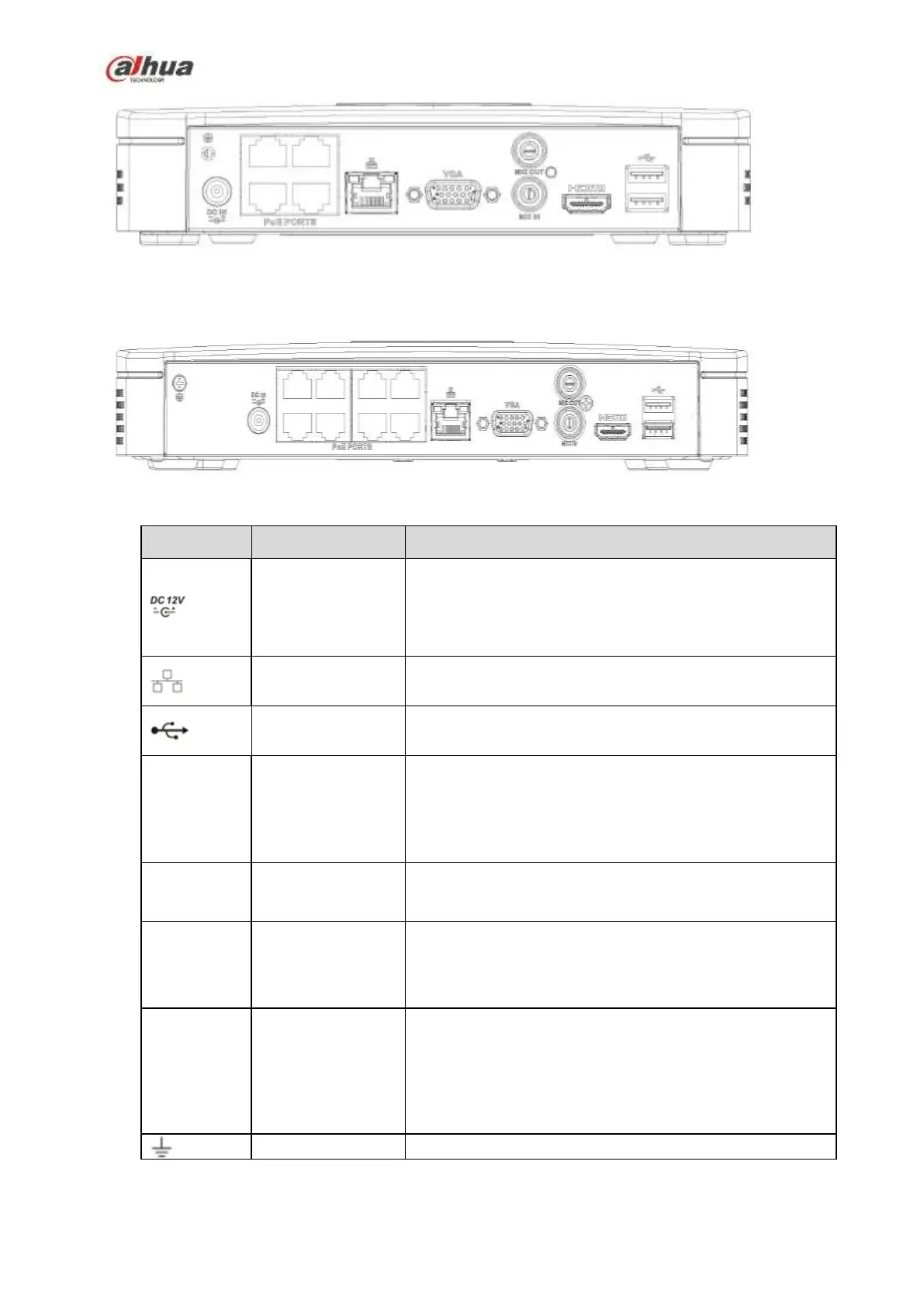

Figure 2-26
The NVR21-8P-S2 is shown as in Figure 2-27.
Figure 2-27
Please refer to the following sheet for detailed information.
Port Name
Connection
Function
Power input port
Power socket
 For NVR21-S2，input DC 12V/2A.
 For NVR21-P-S2，input DC 48V/1.25A.
 For NVR21-8P-S2，input DC 48V/2A.
Network port
10M/100Mbps self-adaptive Ethernet port. Connect to the
network cable.
USB port
USB port. Connect to mouse, USB storage device and
etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as microphone,
pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio signal to
the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
GND
Ground end
