Table 5-33 Tripwire parameters
Parameter Description
Name Customize the rule name.
Direction Set the tripwire direction, including A→B, B→A and A↔B.
Target Filter
Click and then select eective target. With Human and Motor
Vehicle selected by default, the system automatically identies the
person and motor vehicle appeared within the monitoring range.
4. Click OK.
Step 6 Congure alarm schedule and linkage.

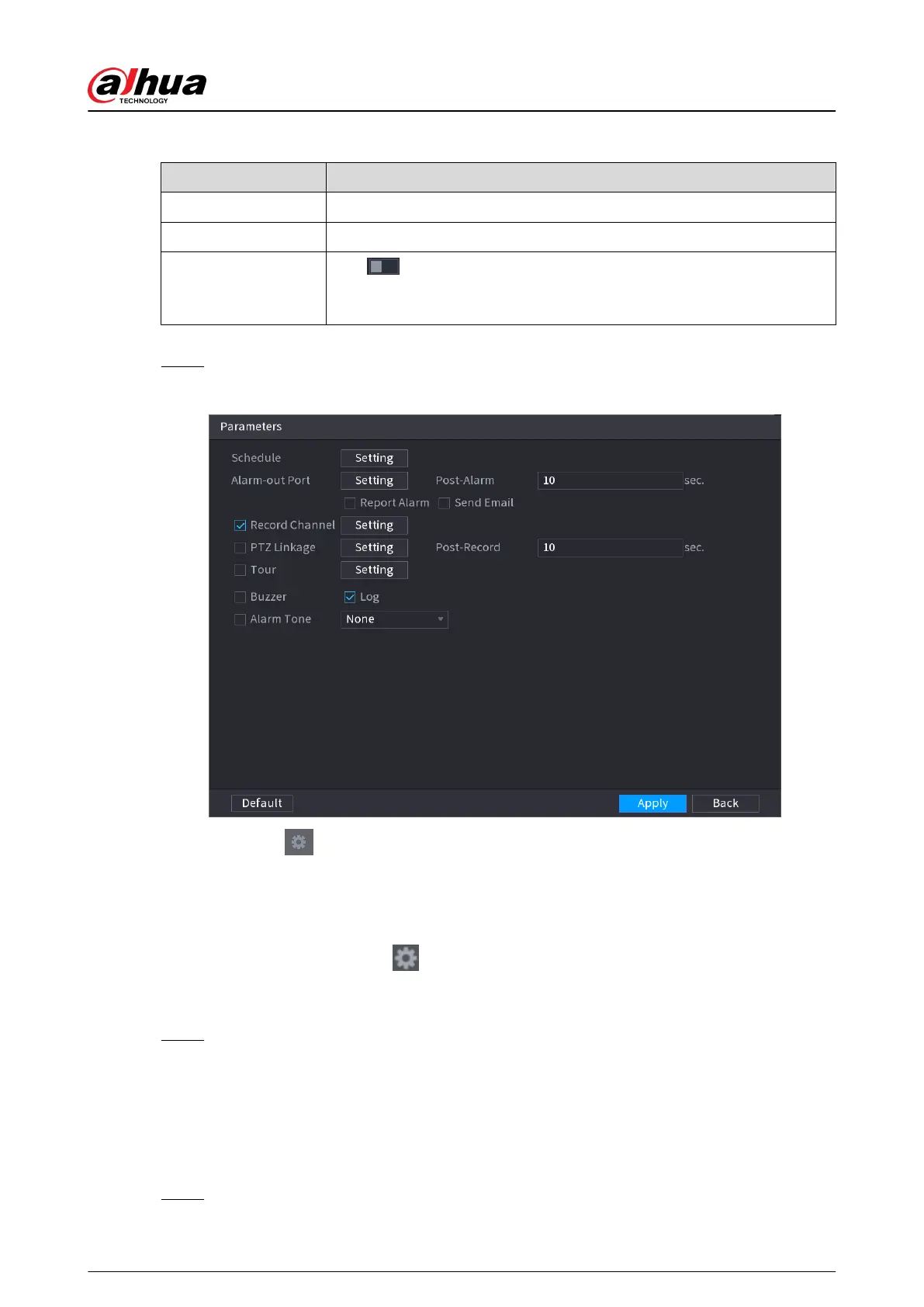

Figure 5-136 Schedule and alarm linkage
1. Click .
2. Click Setting next to Schedule to congure the alarm period.
The system performs linkage actions only for alarms during the arming period.
●
On the time line, drag to set the period.
●
You can also click
to set the period.
3. Congure alarm linkage. For details, see Table 5-50 .
4. Click Apply.
Step 7 Select the Enable checkbox and then click Apply.
5.9.7.2.2 Intrusion
When the detection target passes the edge of the monitoring area, and enters, leaves or traverses
the monitoring area, the system performs an alarm linkage action.
Procedure
Step 1 Select Main Menu > AI > Parameters > IVS.
User's Manual
252
