Icon Port Name Function
PoE PORTS —
Built-in Switch. Support PoE or ePoE function.
●
For ePoE series product, port 1 to port 8 are the
ePoE ports. ePoE port supports 300 meters@100
Mbps, 800 meters@10 Mbps. Port 9 to port 16 are
general PoE ports.
●
The 8 PoE series product supports total 130 W.
●
The 16 PoE series product supports total 130 W.
2.2.5 NVR52-XI/NVR52-8P-XI/NVR-52-16P-XI Series

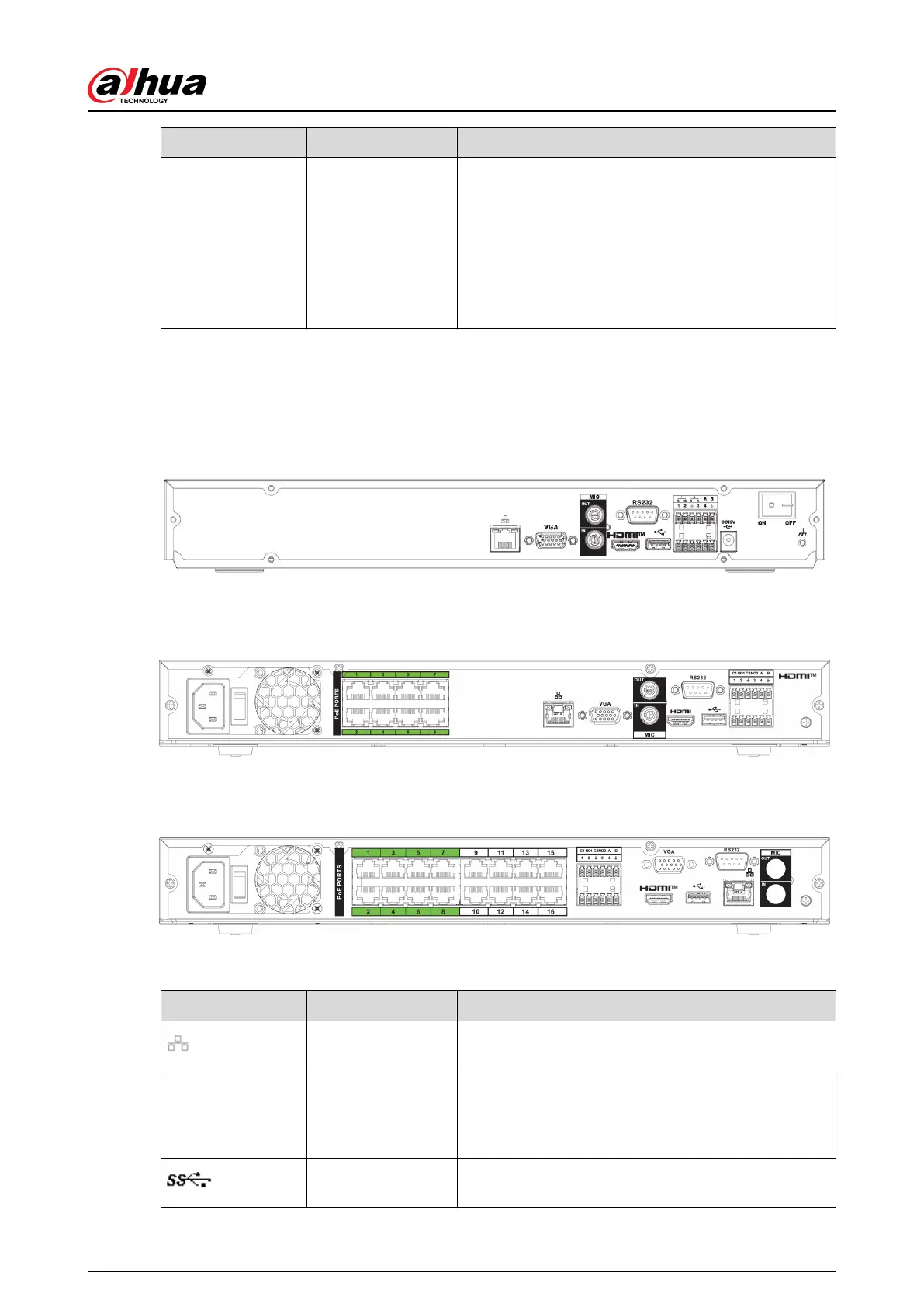

The NVR52-XI series rear panel is shown as below.
Figure 2-55 Rear panel
The NVR52-8P-XI series rear panel is shown as below.
Figure 2-56 Rear panel
The NVR52-16P-XI series rear panel is shown as below.
Figure 2-57 Rear panel
Table 2-21 Ports
Icon
Port Name Function
Network port
10/100/1000 Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Denition
Media Page
High denition audio and video signal output port. It
transmits uncompressed high denition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
USB port
Connect to mouse, USB storage device, USB burner
and more.
User's Manual
32
