5 USB port —
6 16 HDD slot —
After you remove the front panel, you can see there are 16 HDDs. From the left to the right and
from the top to the bottom, it ranges from 1-4, 5-8, 9-12, 13-16.
You can see there are two indicator lights on the HDD bracket.
●
The power indicator light is at the top. The light is yellow after you connected the device to the
power.
●
The read-write indicator light is at the bottom. The blue light ashes when system is reading or
writing the data. In addition to ashing blue light, read-write operation lights of some models of
devices further include the following states. Please refer to the actual device.
Stead red: HDD failure (HDD error).
Flash red: HDD is in a RAID rebuild state.
Red intermittent ashing twice: HDD is in a predicted fault state (including a HDD warning).
Blue and red ashing alternately: HDD is in a positioned state.

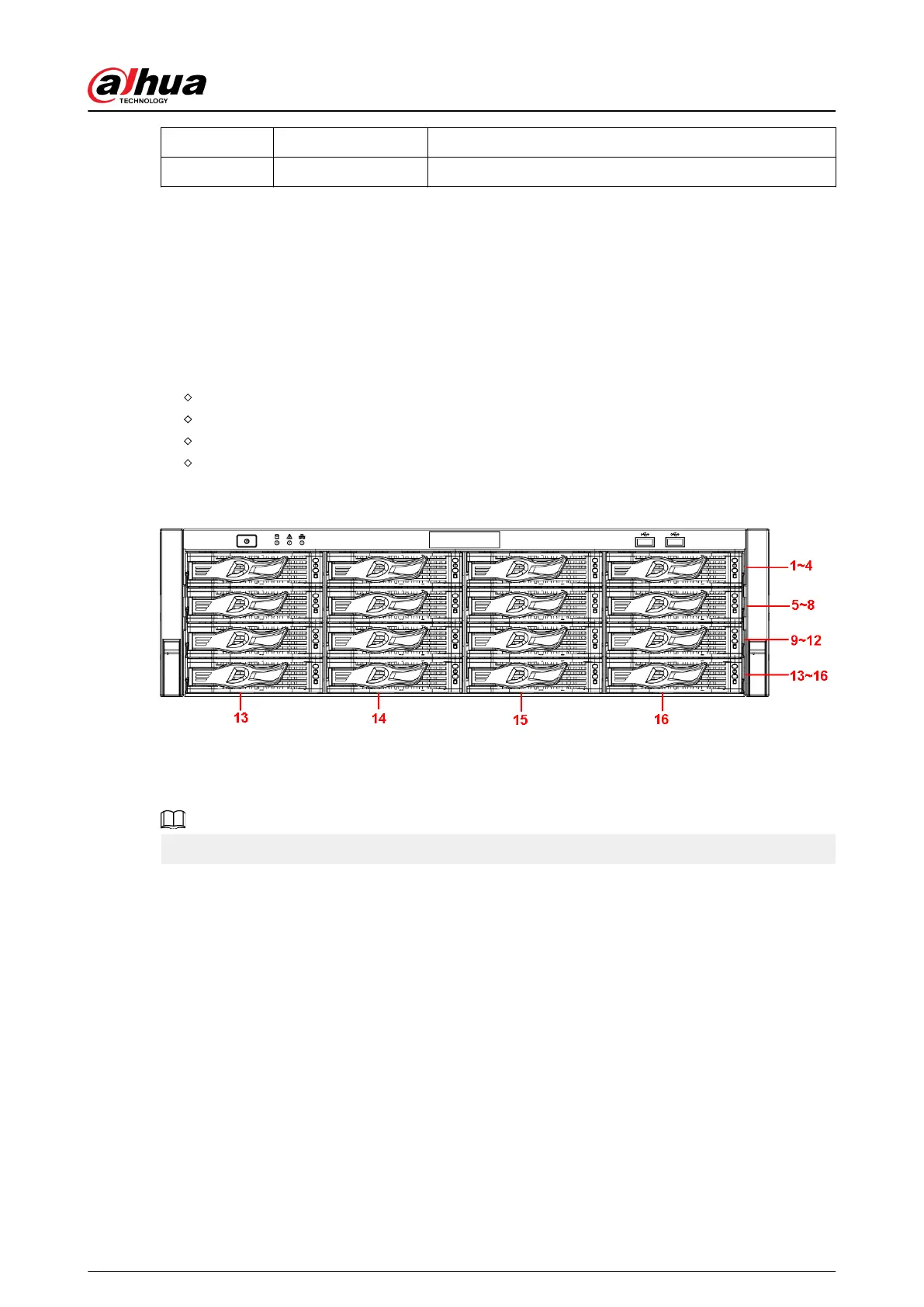

Figure 2-31 Front panel
2.1.16 NVR624-XI Series
The following gures are for reference only.
The front panel of NVR624-XI series is shown as follows.
