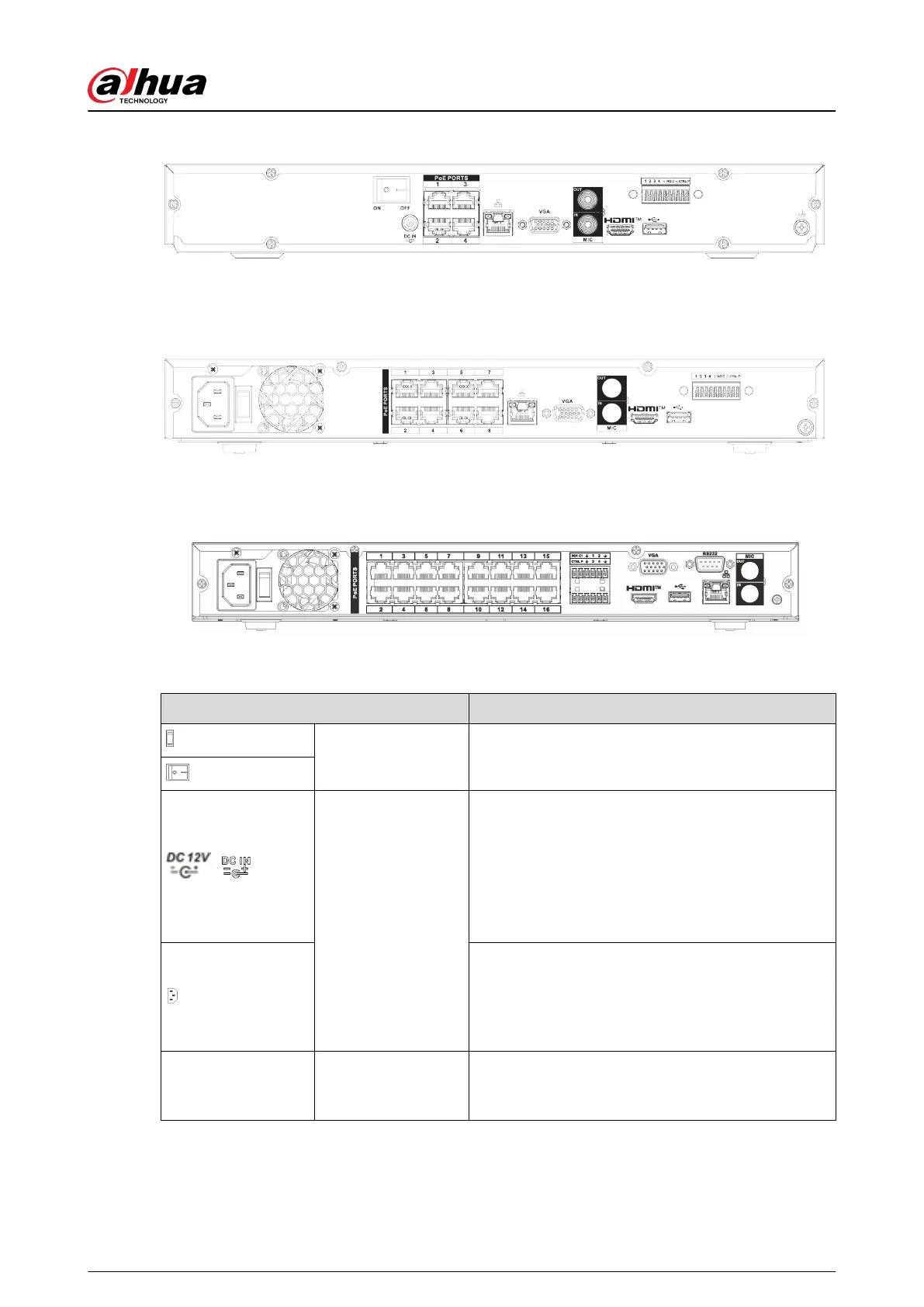

Figure 2-67 Rear panel
The NVR42-8P-4KS2/NVR42-8P-4KS2/L/NVR42-8P-EI/NVR42-8P-4KS3 series rear panel is shown as
below.
Figure 2-68 Rear panel
The NVR42-16P-4KS2/NVR42-16P-4KS2/L/NVR42-16P-4KS3 series rear panel is shown as below.
Figure 2-69 Rear panel
Table 2-24 Rear panel description
Name
Function
Power switch Power on/o button.
/
Power input port
Power socket.
●
For NVR42-4KS2/NVR42-EI/NVR42-4KS3 series,
input 12 VDC/4 A.
●
For NVR42-P-4KS2 series, input 48 VDC/96 W.
●
For NVR42-P-EI/NVR42-P-4KS3 series, input 53
VDC/1.81 A.
Input 90~264-12 VAC 5 A/52 V 2.5 A-190 W.
For NVR42-8P-4KS2/NVR42-16P-4KS2/NVR42-8P-EI/
NVR42-8P-4KS3/NVR42-16P-4KS3 series product
only.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such as
microphone, pickup.
User's Manual
39
