The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128-XI series
rear panel is shown as below.

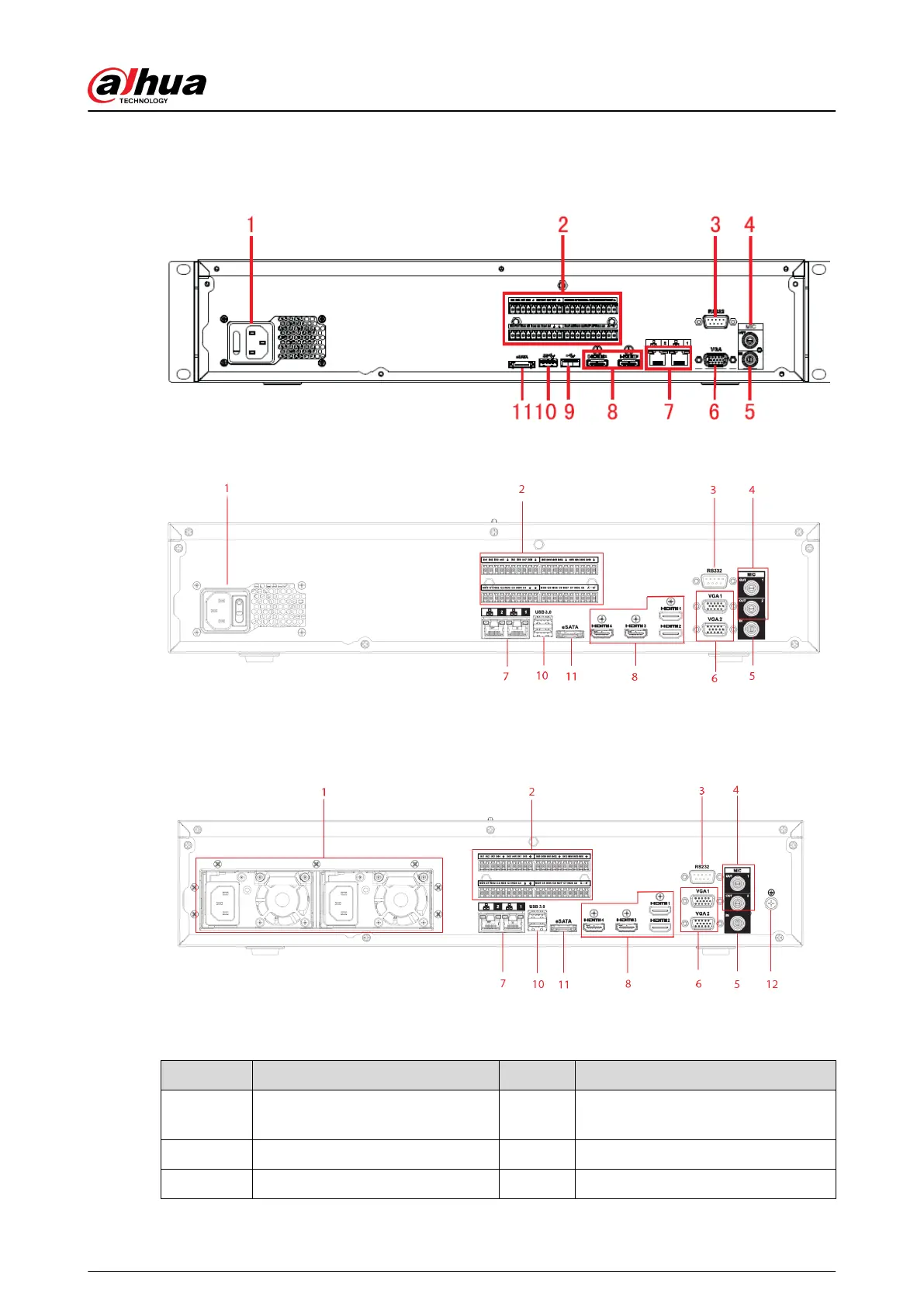

Figure 2-99 Rear panel (2)
Figure 2-100 Rear panel (3)
The NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below.
Figure 2-101 Rear panel (4)
Table 2-43 Ports description
No.
Function No. Function
1 Power socket. 2
Alarm input/alarm output/RS-485
port
3 RS-232 port 4 Audio output
5 Audio input 6 VGA port
