Advanced Settings 79

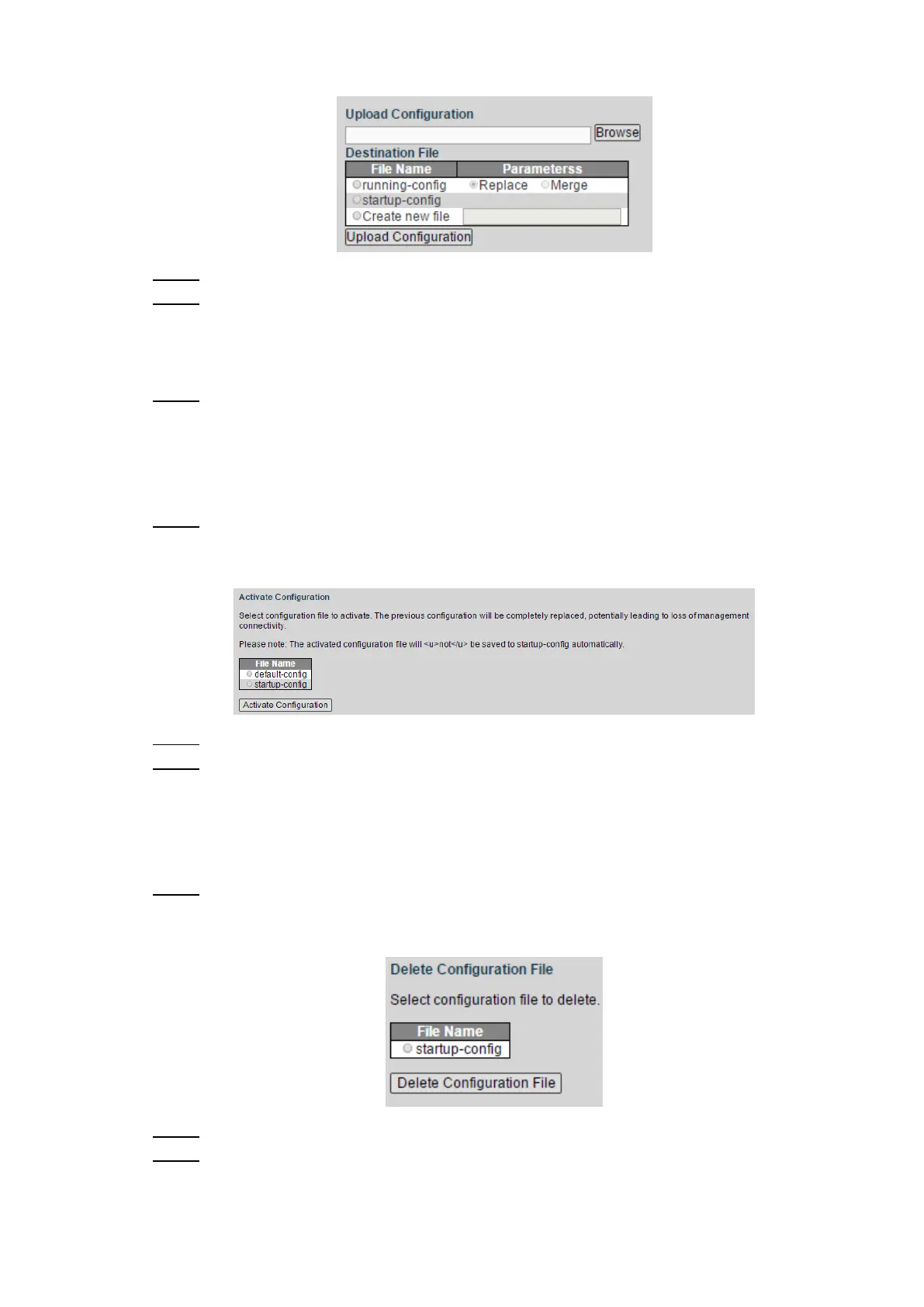

Upload configuration Figure 4-131
Click Broswe, and select the configuration file to upload. Step 2
Select the File Name and the Parameters in Destination File. Step 3
running-config
sartup-config
Create new file
Click Upload Configuration. Step 4
4.4.4.4 Activate
You can activate the configuration file.
Select Advanced > Maintenance > Configuration > Activate. Step 1
The Activate Configuration interface is displayed. See Figure 4-132.
Activate configuration Figure 4-132
Select the File Name, default-config and startup-config are selectable. Step 2
Click Activate Configuration. Step 3
4.4.4.5 Delete
You can delete the configuration file.
Select Advanced > Maintenance > Configuration > Delete. Step 1
The Delete Configuration File interface is displayed. See Figure 4-133.
Delete configuration file Figure 4-133
Select the File Name. Only startup-config can be selected currently. Step 2
Click Delete Configuration File. Step 3
