8
2.4 Digital Extension VTH Settings
a) On the extension VTH menu, from System->Project, you can input project password
(002236) to go to the project interface.
b) Set current VTH as extension VTH.

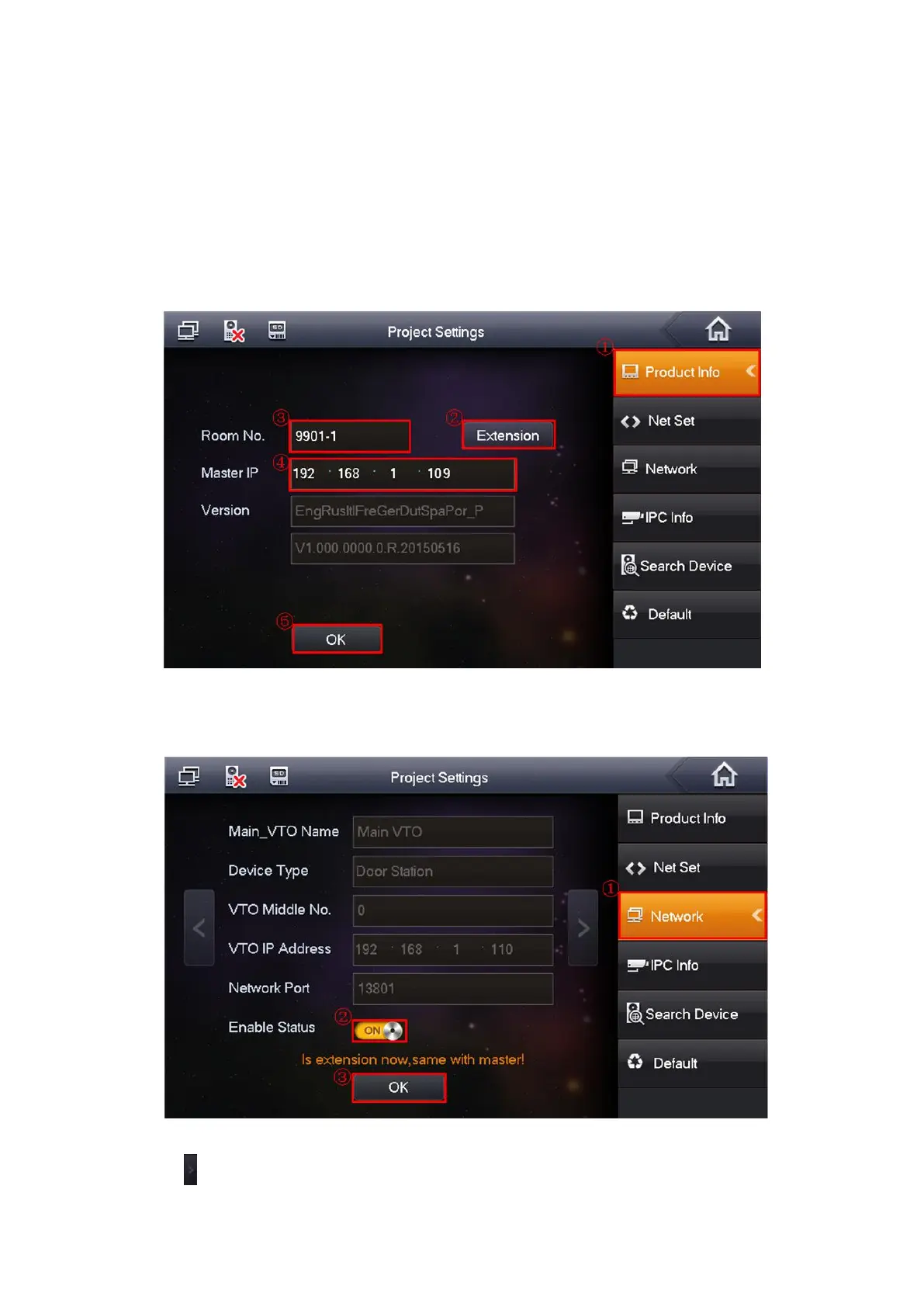

Step1 Press Product Info, See Figure 2-10
Step2 Press Master, Master icon becomes Extention icon.
Step3 Set Room No. (i.e. 9901-1), input IP Address, Subnet Mask and Gateway.
Step4 In Master IP, input IP of the master VTH.
Figure 2-10
c) Click Network on the right pane and then enable current function. See Figure 2-11.
Figure 2-11
d) Click to go to the next page to set extension VTO. Enable current function and then click
OK.
To Next Page
