Dahua VTO2000A User Manual

21
5.2 VTH Installation
Important
The center of the device shall be 1400mm-1600mm height from the ground.
5.2.1 Installation Mode 1
a) Secure the installation bracket on the wall. Use three M4×30 screws to fix.

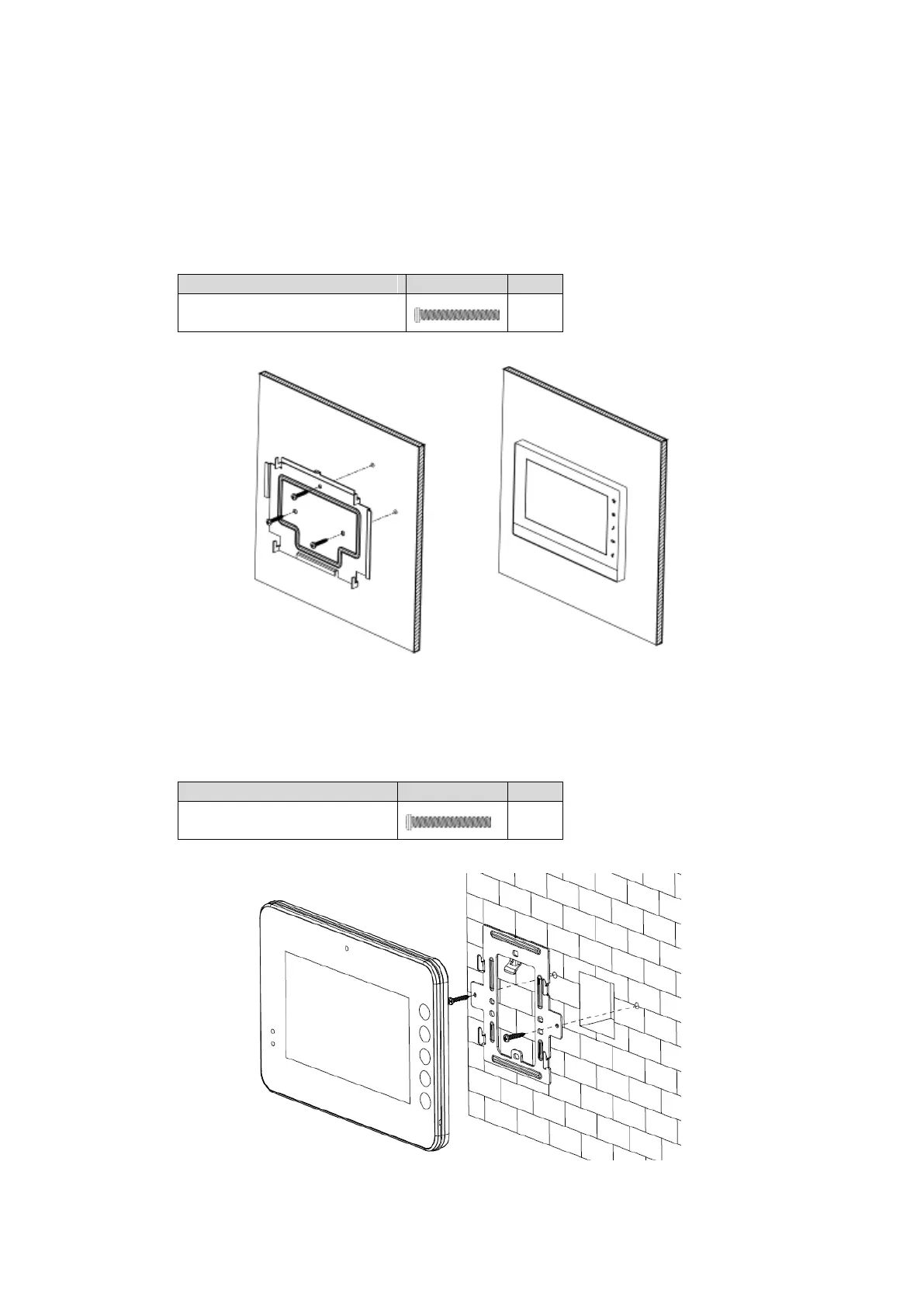

b) Fix the device on the installation bracket and then use the clip to secure. See Figure 5-1.
Component Name
Icon
No.
M4×30 crosshead pan head
thread
3
Figure 5-1
5.2.2 Installation Mode 2
a) Secure the installation bracket on the wall. Use thirty-two M4×30 screws to fix.
b) Fix the device on the installation bracket and then use the clip to secure. See Figure 5-2.
Component Name
Icon
No.
M4×30 crosshead pan head
thread
2
Figure 5-2
