Dahua XVR4108C-S2 User Manual

211

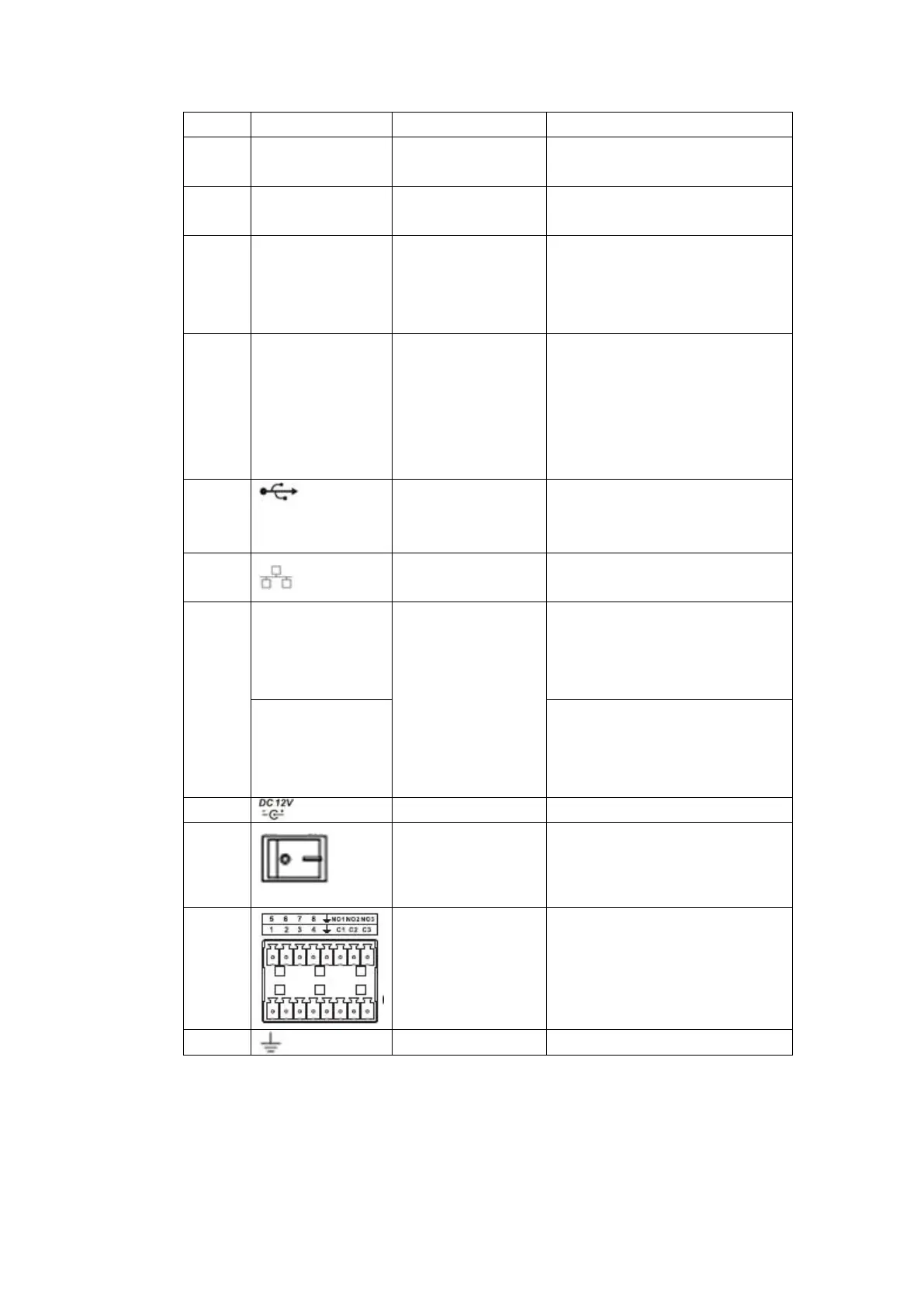

video input signal.
2
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
3
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
5
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
6
USB2.0 port
Connect to USB storage
device, mouse, burning
DVD-ROM and etc.
7
Network port
100M Ethernet port
8
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
9
Power input port
Input 12V DC.
10
Power on-off
button
Power on/off button.
11
Alarm input/Alarm
output
Input/output alarm signal.
12
GND
Ground end
2.2.13 HCVR5104HE-V2/HCVR5108HE-V2/HCVR5116HE-V2 Series
The HCVR5104HE-V2 series rear panel is shown as below. See Figure 2- 33.
