Dahua XVR4108C-S2 User Manual

519
Important
Add/cancel IP CAM function is for some series product only.

Add IP CAM: Click it; you can add corresponding X IP channels. Here X refers to the
product channel amount. Please refer to chapter 1.3 Specifications for IP channel
amount information. System needs to restart to activate new setup.
For example, there is a 4-channel analog device, after the A/D switch, it can max
supports 4 analog channels and 4 IP channels. Once it has become the 3+1 mode (3
analog channels+1 IP channel), you click button, system becomes
3+5 mode (3 analog channels+5 IP channel).

Cancel IP CAM: Click it, you can cancel IP channel. System needs to restart to
restore original status.
5.10.2 Network
5.10.2.1 TCP/IP

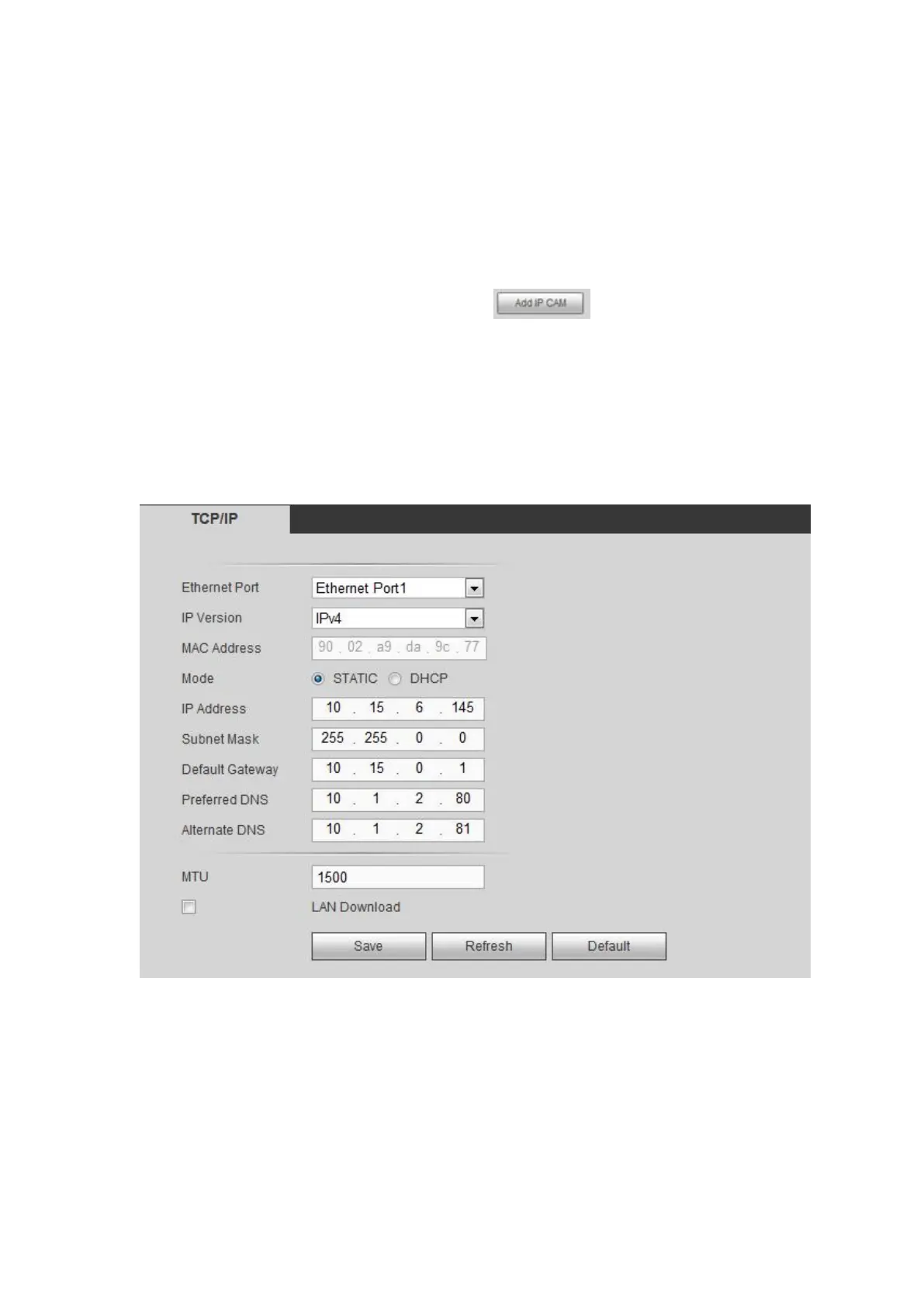

The single-Ethernet port interface is shown as in Figure 5- 40.
Figure 5- 40
The dual-Ethernet port interface is shown as in Figure 5- 41.

Dahua XVR4108C-S2 Specifications

General

Brand	Dahua
Model	XVR4108C-S2
Category	DVR
Language	English
