XVR51H/XVR51XXHE/XVR71XXHE/XVR51XXH-4M/XVR51XXH-4KL/XVR71XXHE-4KL

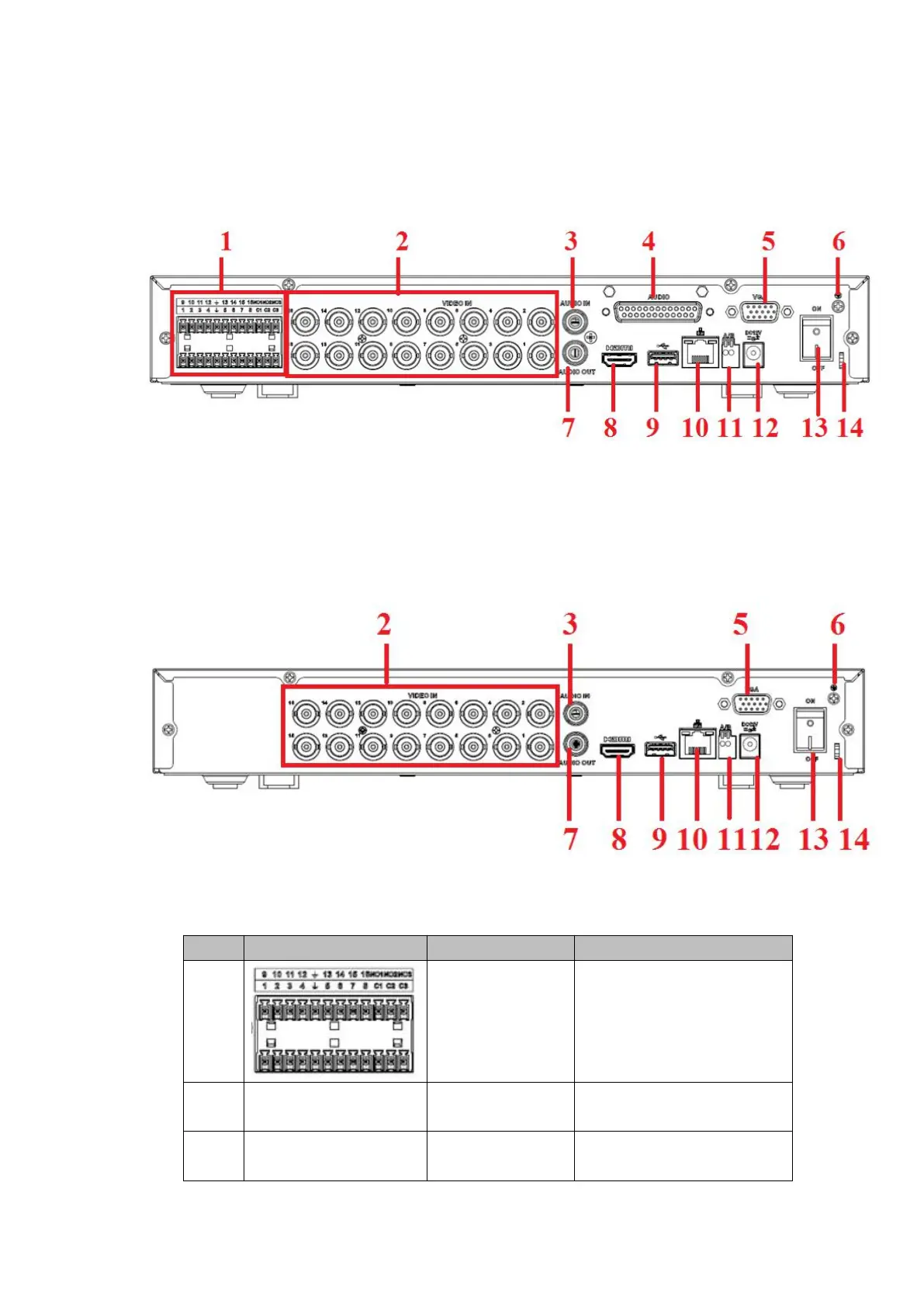

series rear panel is shown as below. See Figure 2- 55.
The following figure is based on HCVR4116HE-S3/HCVR5116HE-S3/HCVR7116HE-S3
/XVR4116HE/XVR5116HE/XVR7116HE series.
Figure 2- 55
The HCVR71XXH-S3/XVR71XXH/XVR51XXH-S2/XVR51XXHE-S2 rear panel is shown
as below. See Figure 2- 56.
The following figure is based on the HCVR7116H-S3/XVR7116H/
XVR51XXH-S2/XVR51XXHE-S2.
Figure 2- 56
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Alarm input/Alarm
output
Input/output alarm signal.
2
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
3
AUDIO IN
Audio input port
Connect to audio input
device such as speaker.

Dahua XVR4108C-S2 Specifications

General

Brand	Dahua
Model	XVR4108C-S2
Category	DVR
Language	English
