standard definition (CVBS) and analog HD (CVI, AHD or Other). For XVR series
product, each channel supports all types of signal connection (analog signal/IP
signal). For analog signal connection, the default setup is AUTO, that is to say, no
matter what analog signal (CVBS, CVI, AHD or other analog HD signal) connected;
the XVR can automatically recognize the signal and display the proper image. There
is no need to set manually.
If the auto recognition error occurred, XVR series product supports manual setup too.
The manual setup featuring high recognition speed and usually there is no error. For

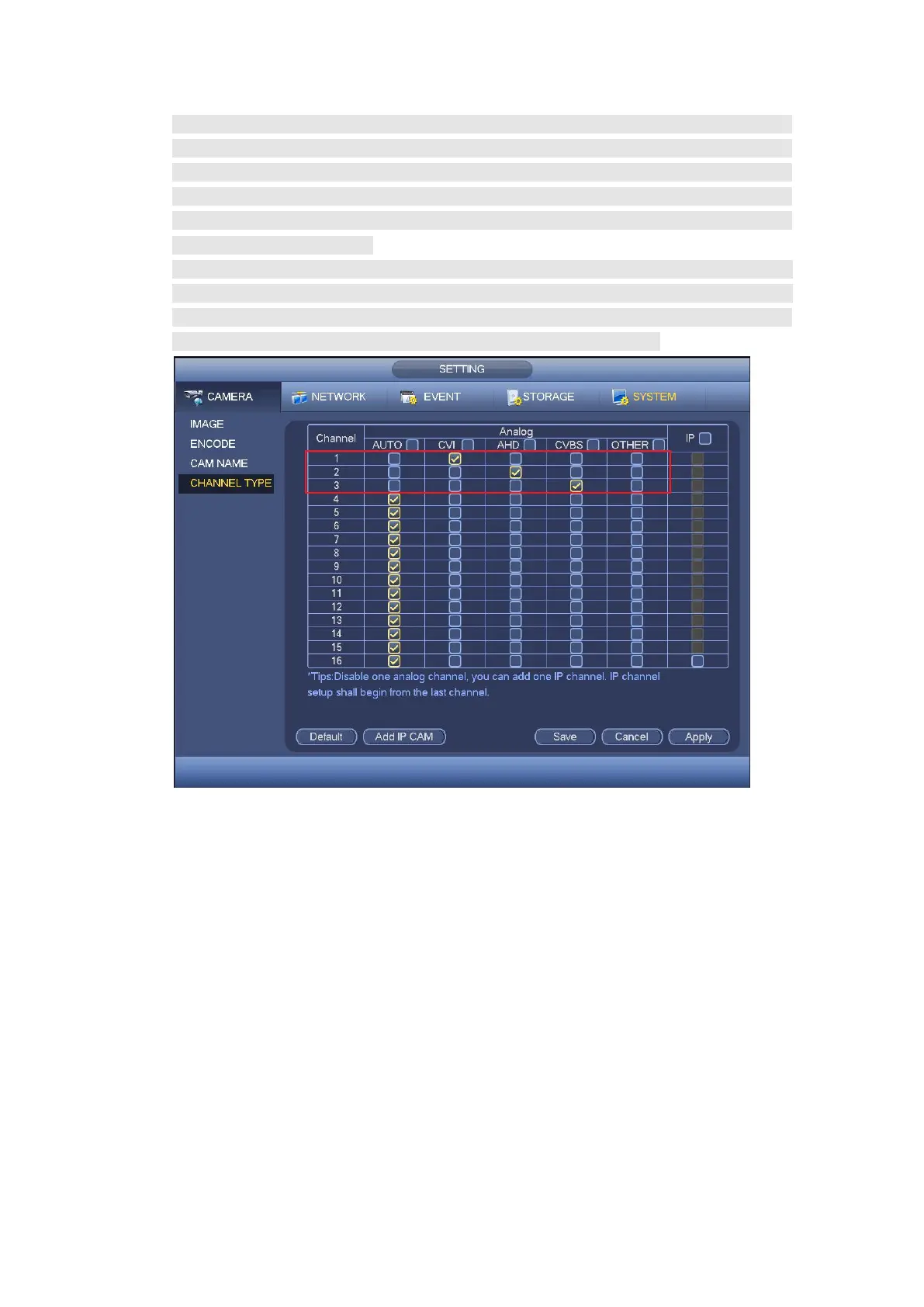

example, in Figure 4- 112, you can set channel 1 to connect to CVI camera, channel 2
to connect to AHD camera, channel 3 to connect to CVBS camera.
Figure 4- 112
Important
Add/cancel IP CAM function is for some 4/8/16-channel series product only.
Add IP CAM: Click it; you can add corresponding X IP channels. Here X refers to the
product channel amount such as 4/8/16. System needs to restart to activate new
setup. See Figure 4- 113 (XVR series product) or Figure 4- 114 (HCVR series
product).
