Figure 2- 12

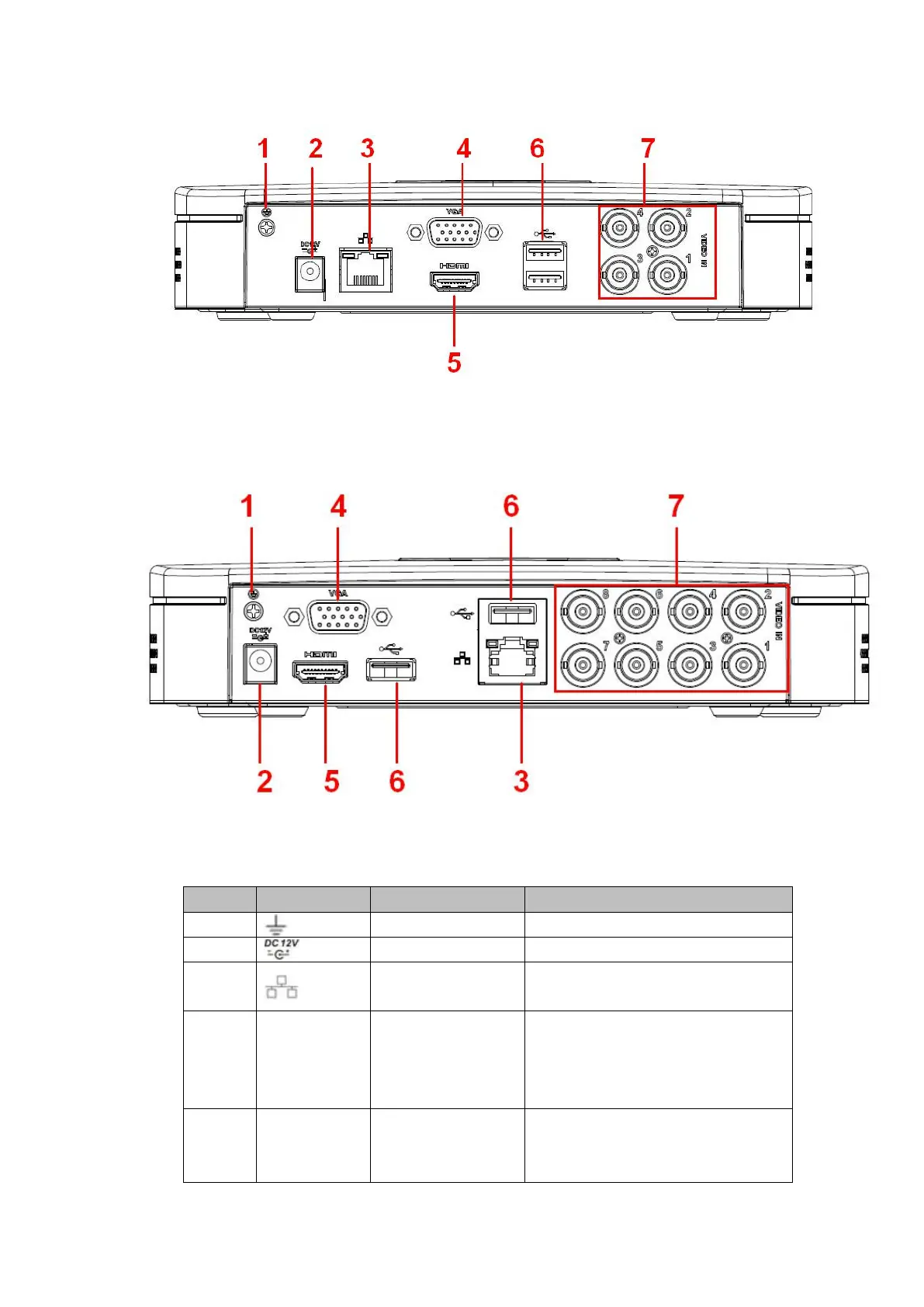

The HCVR5108C-V2 rear panel is shown as below. See Figure 2- 13.
Figure 2- 13
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
GND
Ground end
2
Power input port
Input 12V DC.
3
Network port
100M Ethernet port
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
5
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
