3) Now you can add device. Please do not input default port number such as the TCP port
in the mapping port number. The device ID here shall be the same with the ID you input in
Figure 4- 131. Click Add button to complete the setup.
4) Now you can boot up the proxy server. When you see the network status is Y, it means
your registration is OK. You can view the proxy server when the device is online.
Important
The server IP address can also be domain. But you need to register a domain name
before you run proxy device server.
4.9.2.13 Alarm Centre

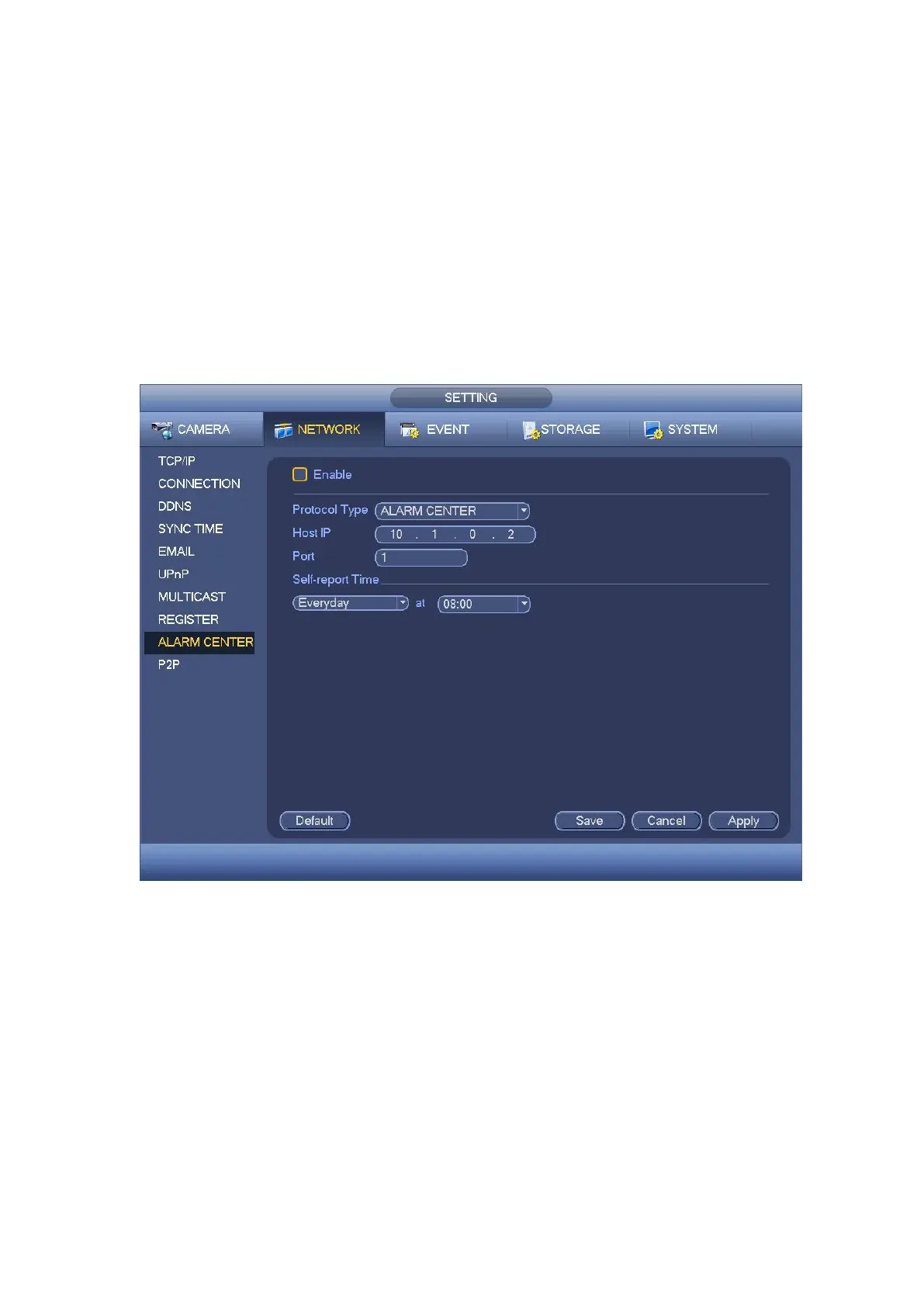

This interface is reserved for you to develop. See Figure 4- 132.
Figure 4- 132
4.9.2.14 P2P
You can use your cell phone to scan the QR code and add it to the cell phone client.
Via the SN from scanning the QR code, you can access the device in the WAN. Please
refer to the P2P operation manual included in the resources CD.
From main menu->Setting->Network->P2P, you can go to the following interface, the P2P
interface is shown as in Figure 4- 133.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
