Dahua XVR4108HS User Manual

231

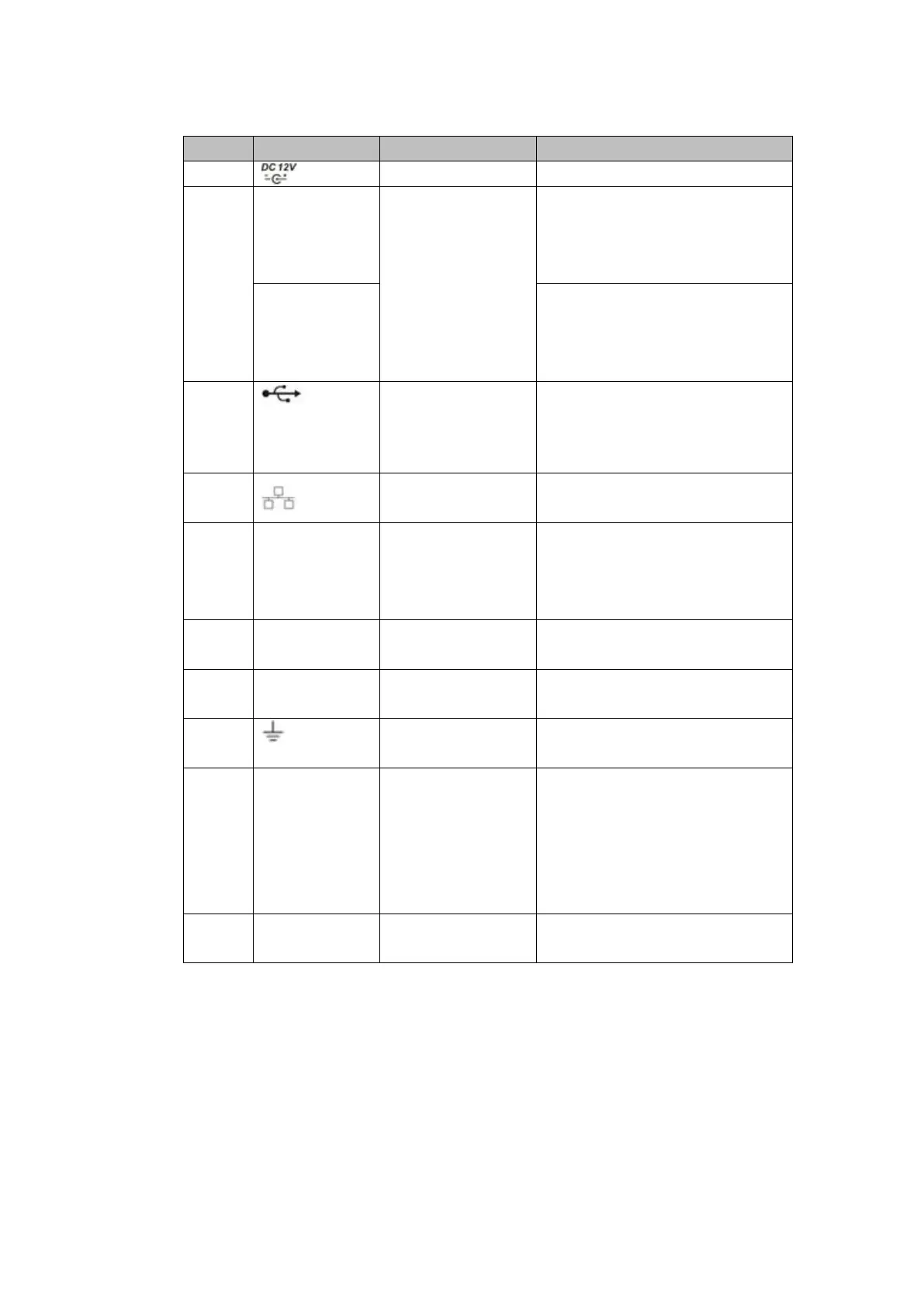

Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power input port
Input 12V DC.
2
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
3
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
4
Network port
100M Ethernet port
5
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
6
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
7
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
8
GND
Ground end
9
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
10
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.24 HCVR21XXHS-S3/HCVR41XXHS-S3/HCVR51XXHS-S3/HCVR7104H
S-S3
/XVR21XXHS/XVR41XXHS/XVR51XXHS/XVR7104HS/XVR51XXHS-4
M/XVR51XXHS-4KL/ XVR41XXHS-S2/ XVR51XXHS-S2 Series
The
HCVR2116HS-S3/HCVR41XXHS-S3/51XXHS-S3/XVR2116HS/XVR41XXHS/XVR51XX
HS/ XVR51XXHS-4M/XVR51XXHS-4KL series rear panel is shown as below. See Figure
2- 60.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
