284

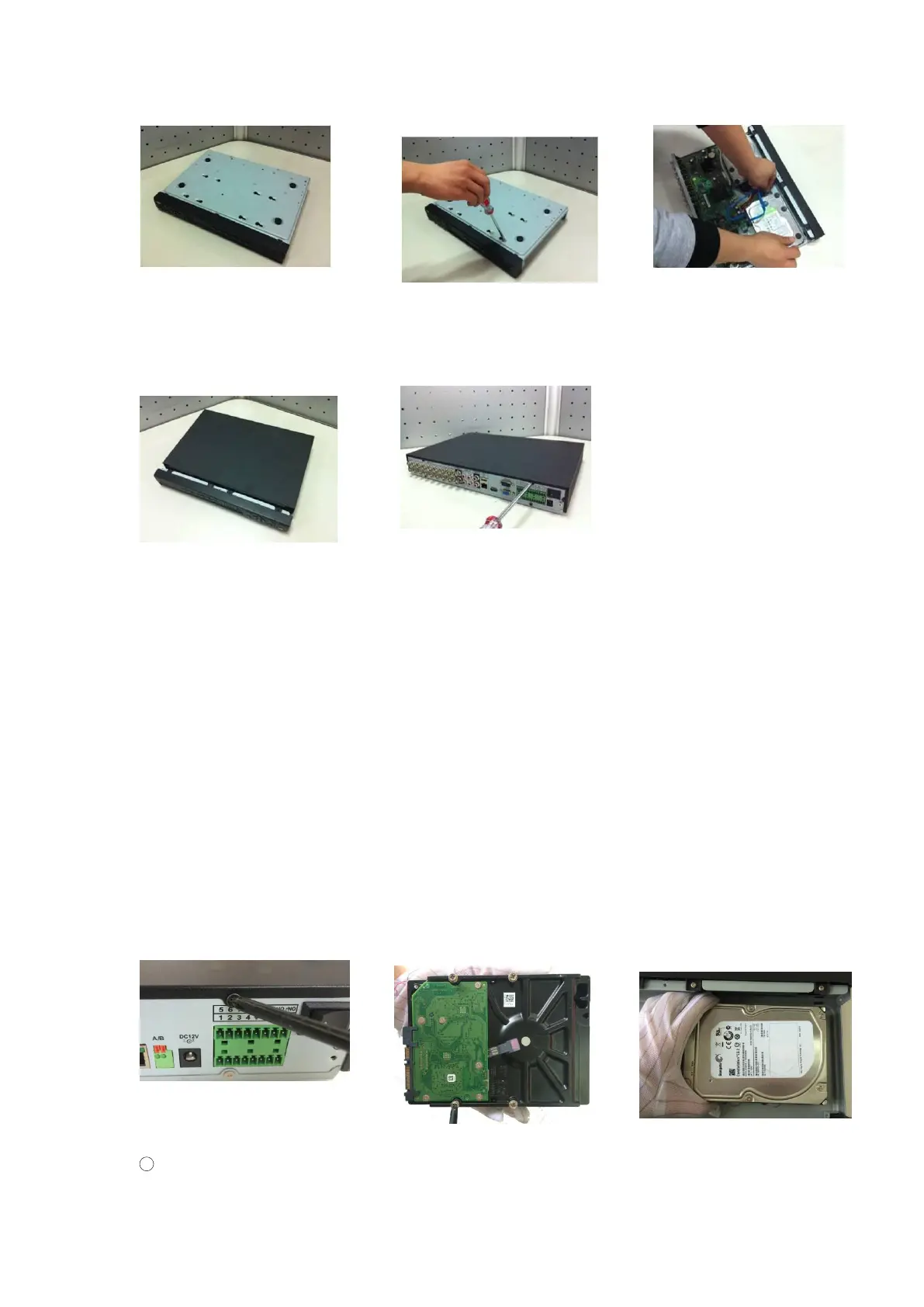

④ Turn the device upside down and
then turn the screws in firmly.
⑤Fix the HDD firmly.
⑥Connect the HDD cable and
power cable.
⑦Put the cover in accordance with the
clip and then place the upper cover
back.
⑧Secure the screws in the rear panel
and the side panel.
Important:
You can connect the HDD data cable and the power cable first and then fix the HDD
in the device.
Please pay attention to the front cover. It adopts the vertical sliding design. You need
to push the clip first and then put down.
3.3.4 The 1U Series
The 1U series includes
HCVR52XXA-V2/HCVR72XXA-V2/HCVR42XXA-S2/HCVR4216AN-S2/HCVR52XXA-S2/
HCVR5216AN-S2/HCVR720XA-S2/XVR42XXA/XVR4216AN/XVR52XXA/XVR5216AN/X
VR72XXA/XVR7216AN/HCVR720XAN-4K/XVR42XXA-S2/XVR42XXAN-S2/
XVR52XXA-S2/ XVR52XXAN-S2 and etc.
This series DVR has two SATA HDDs.
1
Loosen the screws of the upper
② Fix four screws in the HDD
③ Place the HDD in accordance
