Dahua XVR4108HS User Manual

269
SN
Icon
Name
Note
6
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
7
GND
Ground end
8
AUDIO
OUT
Audio output
port
Connect to video output device such as sound box.
9
A
RS485
(RS-485)
communicati
on port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
10
Power input
port
Input 12V DC.
11
Power switch
Power on/off button.
12
Power cable
fastener
Use clamp to secure the power cable on the device in
case there is any loss.
2.2.39 HCVR720XAN-4K Series

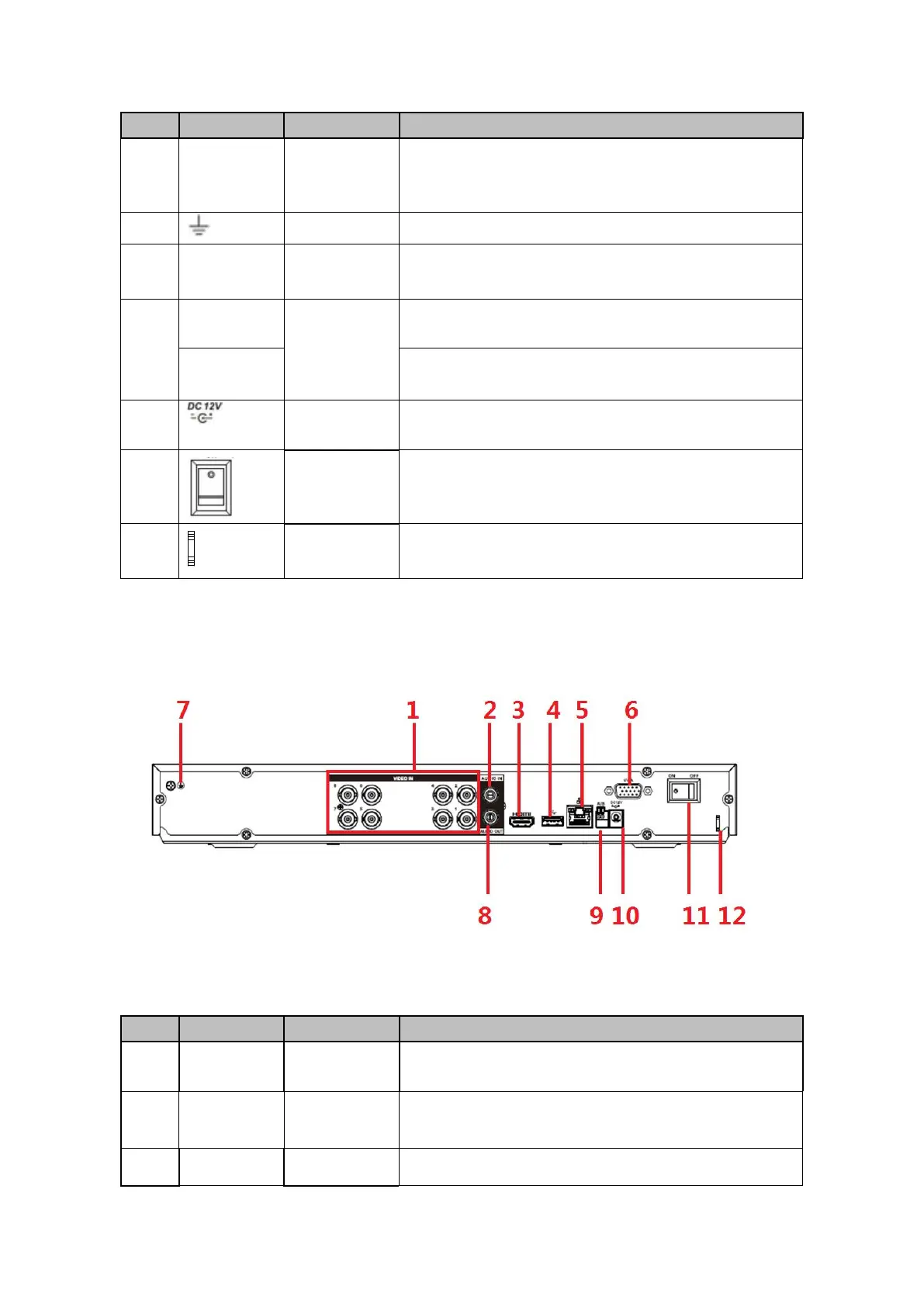

This series product rear panel is shown as in Figure 2- 91.
Here we use HCVR7108AN-4K for an example.
Figure 2- 91
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
3
HDMI
High
High definition audio and video signal output port. It

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
