Dahua XVR4108HS User Manual

244
SN
Icon
Name
Note
14
VIDEO
OUT
Video output
port
Connect to output devices such as TV.
2.2.31 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44L-S2 Series

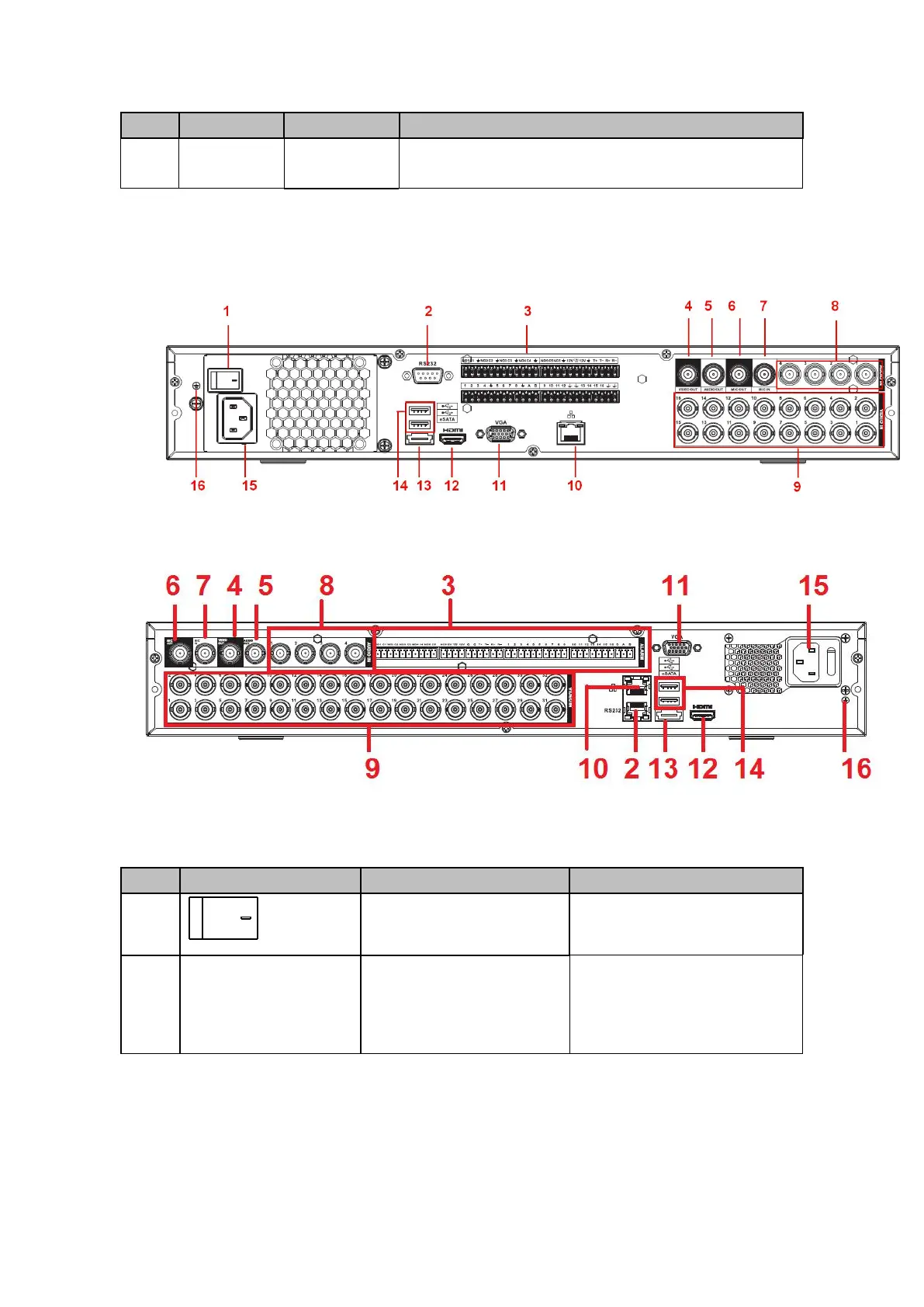

This series products’ rear panel is shown as below. See Figure 2- 77.
The following figure is based on the HCVR5416L-V2 series product.
Figure 2- 77
The HCVR4432L-S2 rear panel is shown as below. See Figure 2- 78.
Figure 2- 78
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power switch
Power on/off button.
2
RS-232
RS-232 debug COM.
It is for general COM debug to
configure IP address or
transfer transparent COM
data.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
