437

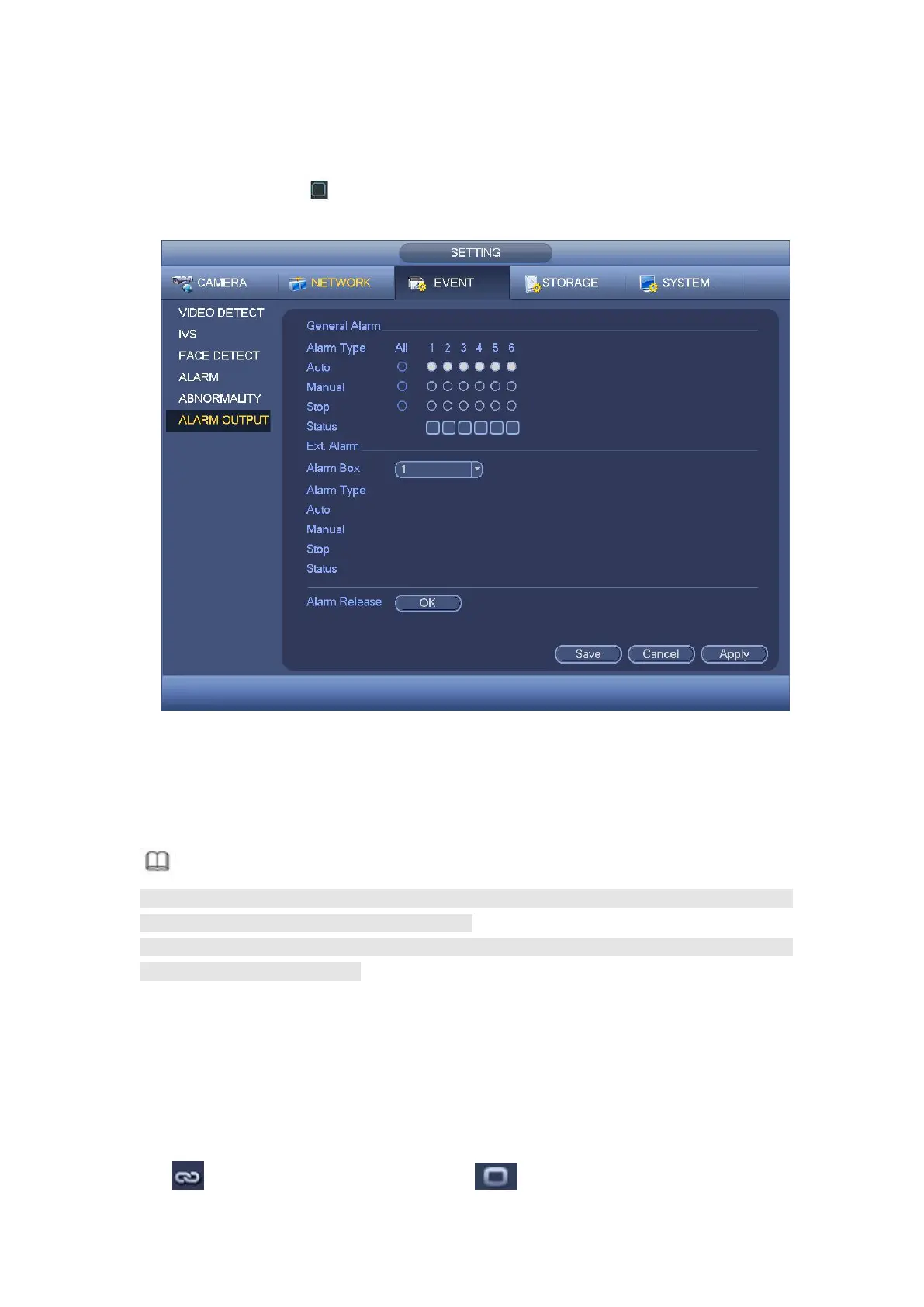

4.9.3.10 Alarm Output
Here is for you to set proper alarm output such as auto, manual. See Figure 4- 169.
Please highlight icon to select the corresponding alarm output.
Click Apply or Save to complete setup.
Figure 4- 169
4.9.4 Storage
4.9.4.1 Schedule
4.9.4.1.1Record
Note
You need to have proper rights to implement the following operations. Please make
sure the HDDs have been properly installed.
After the system booted up, it is in default 24-hour regular mode. You can set record type
and time in schedule interface.
In the main menu, from Setting->Storage->Schedule, you can go to schedule menu.
See Figure 4- 173.
Please note you need to go to main menu->Setting->System->General->Holiday to
set holiday date first, otherwise, there is no holiday setup item.
Channel: Please select the channel number first. You can select “all” if you want to
set for the whole channels.
: Sync connection icon. Select icon of several dates, all checked items

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR4108HS and is the answer not in the manual?

Dahua XVR4108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
USB2 USB 2.0
Power SupplyDC12V/2A
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
HDCVI Camera1080p@25/30 fps, 720p@25/30 fps
AHD Camera1080p@25/30 fps, 720p@25/30 fps
TVI Camera1080p@25/30 fps, 720p@25/30 fps
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output1 HDMI, 1 VGA
Display Split1/4/8/9
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart PhoneiPhone, iPad, Android
HDD1 SATA Port, up to 6TB
Video Input8 channels
IP Camera Input8+2 channel, each channel up to 5MP
Recording Resolution1080N, 720P, 960H, D1, HD1, CIF
Record RateMain Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate32 Kbps–6144 Kbps per channel
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution1920×1080, 1280×1024, 1280×720
Network InterfaceRJ-45 port (10/100M)
InteroperabilityONVIF
Working Environment-10°C to +55°C / 10% to 90% RH
Weight0.75kg (without HDD)
Two-way TalkReuse audio input/output channel 1
