Dahua XVR4108HS User Manual

345
4.3.9 Record Control
Please refer to chapter 4.9.4.5 for detailed information.
4.3.10 Alarm Output
Please refer to chapter 4.9.3.10 for detailed information.
4.3.11 Remote Device
Please refer to chapter 4.9.1.1 for detailed information.
4.3.12 Video Matrix
Please refer to chapter 4.9.5.3 for detailed information.
4.3.13 Main menu
Please refer to chapter 4.6 for detailed information.
4.4 Navigation Bar
You need to go to the Main menu->Setting->System->General to enable navigation
bar function; otherwise you cannot see the following interface.

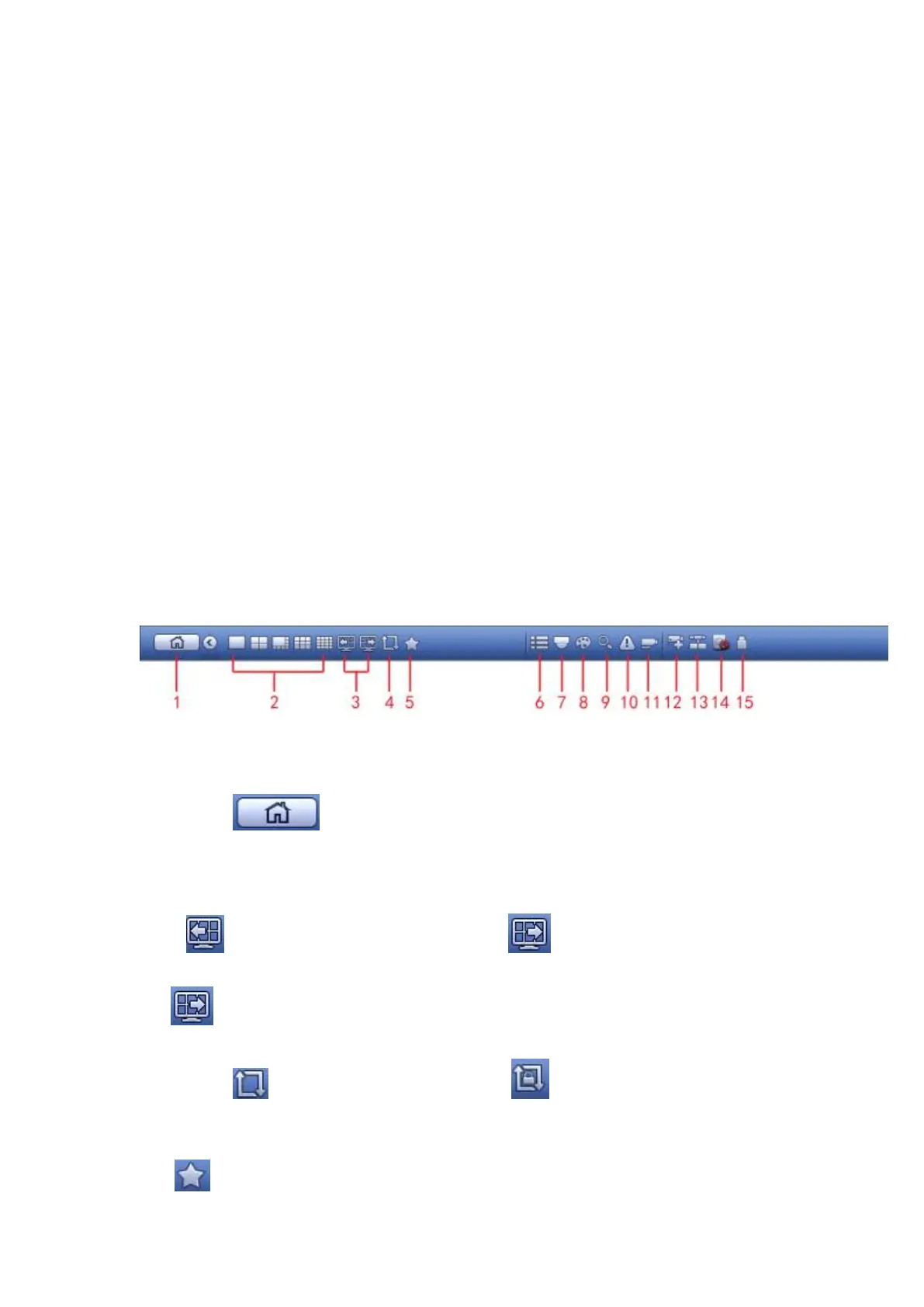

The navigation bar is shown as below. See Figure 4- 66.
Figure 4- 66
4.4.1 Main Menu
Click button to go to the main menu interface.
4.4.2 Output Screen
Select corresponding window-split mode and output channels.
4.4.3 Previous/Next Screen
Click to go to the previous screen, click to go to the next screen. For
example, if you are using 4-split mode, the first screen is displaying the channel 1-4,
click , you can view channel 5-8.
4.4.4 Tour
Click button to enable tour, the icon becomes , you can see the tour is in
process.
4.4.5 Favorites
Click , system pops up add/edit favorites. See Figure 4- 67.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
