291
Model
HFD23/005-1ZS
HRB1-S-DC5V
times/MIN）
times/MIN）
Working Temperature
-30℃～+70℃
-40℃～+70℃
3.8 RS485
When the DVR receives a camera control command, it transmits that command up the coaxial
cable to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any
data to the unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on
the DVR.
Since RS485 is disabled by default for each camera, you must enable the PTZ settings first.
This series DVRs support multiple protocols such as Pelco-D, Pelco-P.
To connect PTZ devices to the DVR:
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the
DVR.

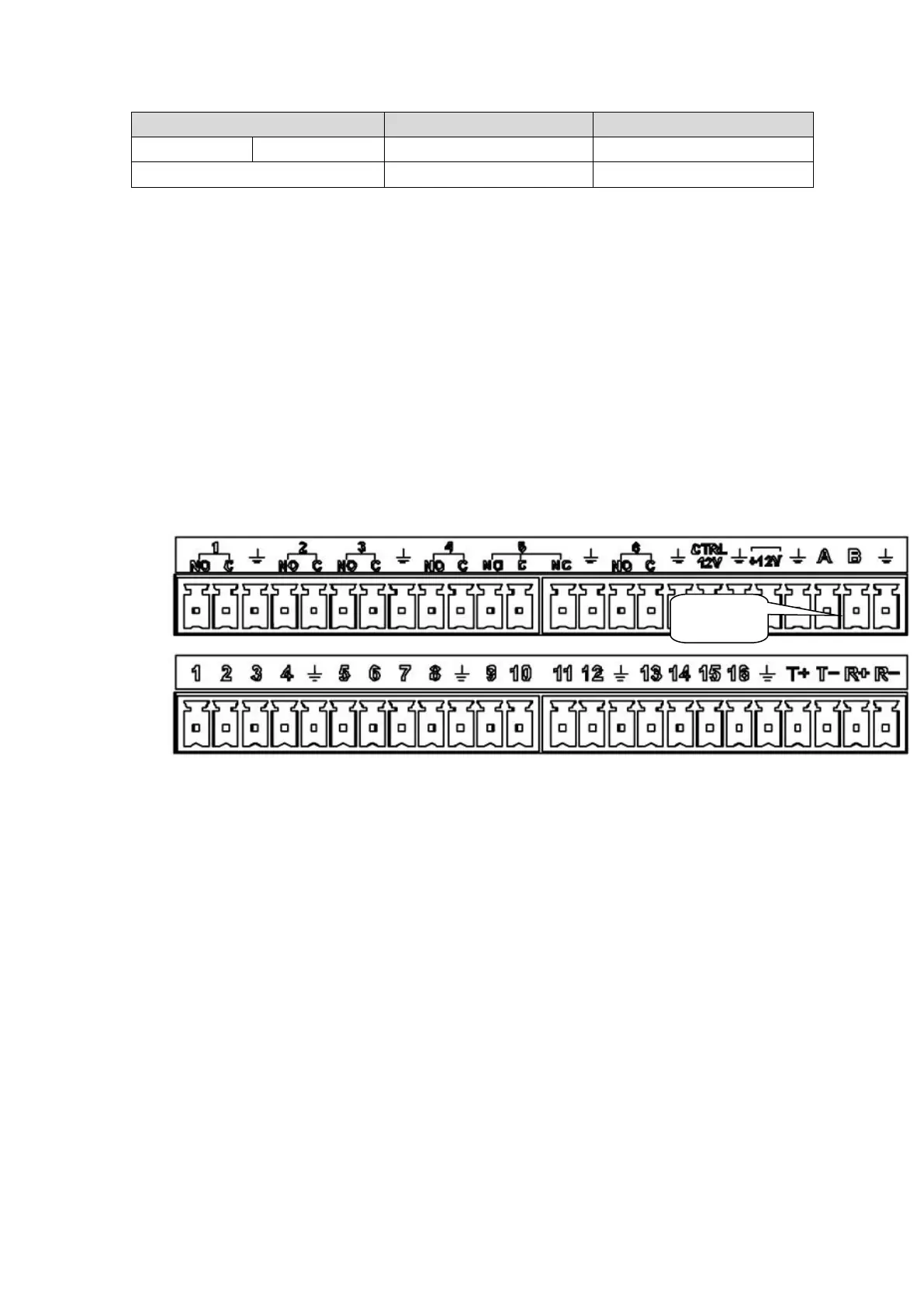

Figure 3- 3
3.9 Other Interfaces
There are still other interfaces on the DVR, such as USB port.
485 Port

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR4108HS and is the answer not in the manual?

Dahua XVR4108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
USB2 USB 2.0
Power SupplyDC12V/2A
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
HDCVI Camera1080p@25/30 fps, 720p@25/30 fps
AHD Camera1080p@25/30 fps, 720p@25/30 fps
TVI Camera1080p@25/30 fps, 720p@25/30 fps
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output1 HDMI, 1 VGA
Display Split1/4/8/9
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart PhoneiPhone, iPad, Android
HDD1 SATA Port, up to 6TB
Video Input8 channels
IP Camera Input8+2 channel, each channel up to 5MP
Recording Resolution1080N, 720P, 960H, D1, HD1, CIF
Record RateMain Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate32 Kbps–6144 Kbps per channel
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution1920×1080, 1280×1024, 1280×720
Network InterfaceRJ-45 port (10/100M)
InteroperabilityONVIF
Working Environment-10°C to +55°C / 10% to 90% RH
Weight0.75kg (without HDD)
Two-way TalkReuse audio input/output channel 1
