Dahua XVR4108HS User Manual

457

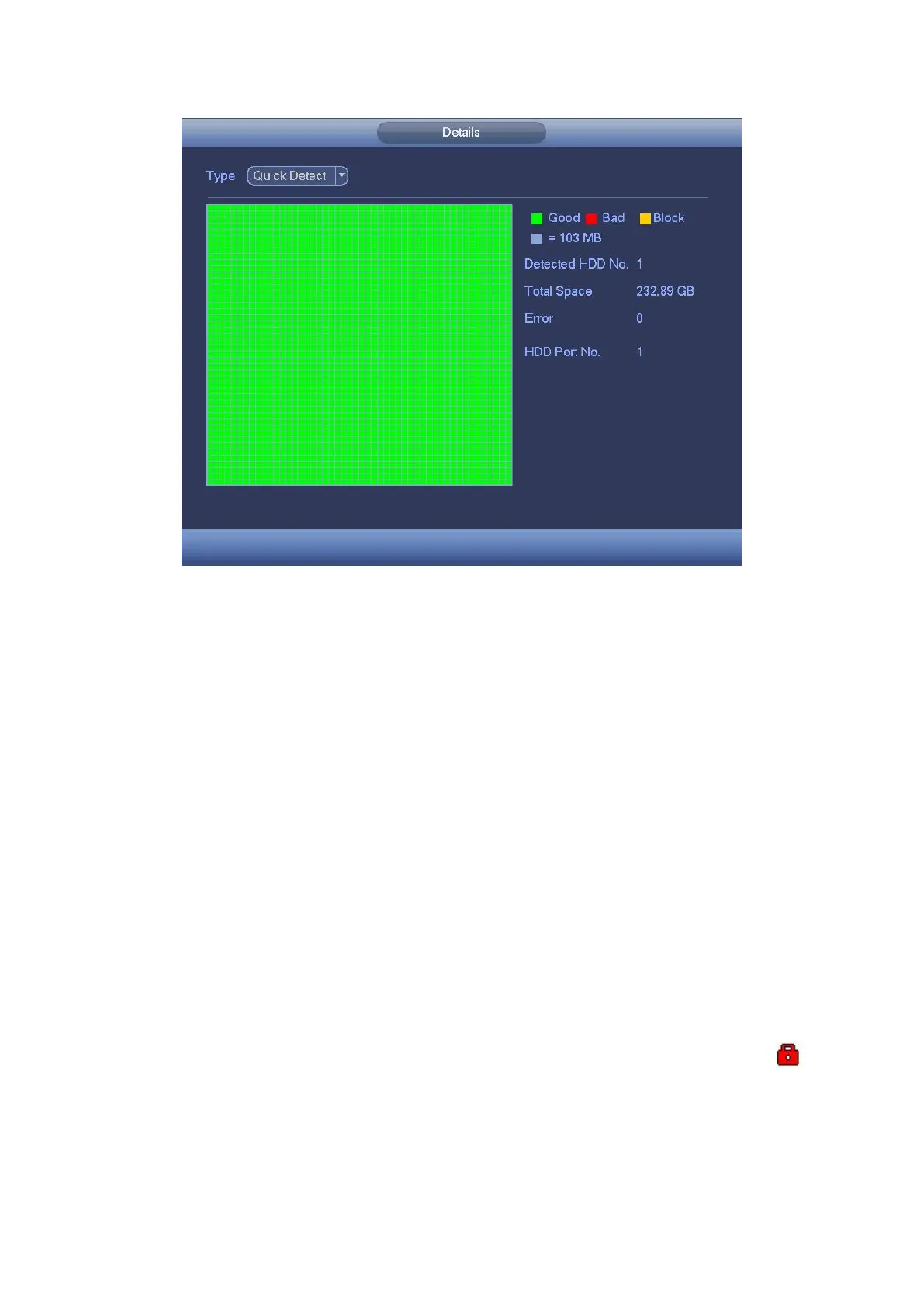

Figure 4- 196
4.9.5 System
4.9.5.1 General
4.9.5.1.1Device
General setting includes the following items. See Figure 4- 197.

Device ID: Please input a corresponding device name here.

Device No: Here you can set device number.

Language: System supports various languages: Chinese (simplified), Chinese
(Traditional), English, Italian, Japanese, French, Spanish (All languages listed here
are optional. Slight difference maybe found in various series.)

Video standard: There are two formats: NTSC and PAL.

Instant playback: It is to set playback time you can view in the preview interface. The
value ranges from 5 to 60 minutes.

Auto logout: Here is for you to set auto logout interval once login user remains
inactive for a specified time. Value ranges from 0 to 60 minutes.

Monitor channels when logout: Here you can set channels you want to view when
your account has logged out. Click the button and then cancel the channel name box,
you need to login to view the corresponding video. The channel window displays
in preview interface.

IPC Time Sync: You can input an interval here to synchronize the DVR time and IPC
time.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
