257
SN
Icon
Name
Note
13
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
14
Network port
1000Mbps Ethernet port
15
VIDEO IN
Video input port
Connect to analog camera, video
input signal.

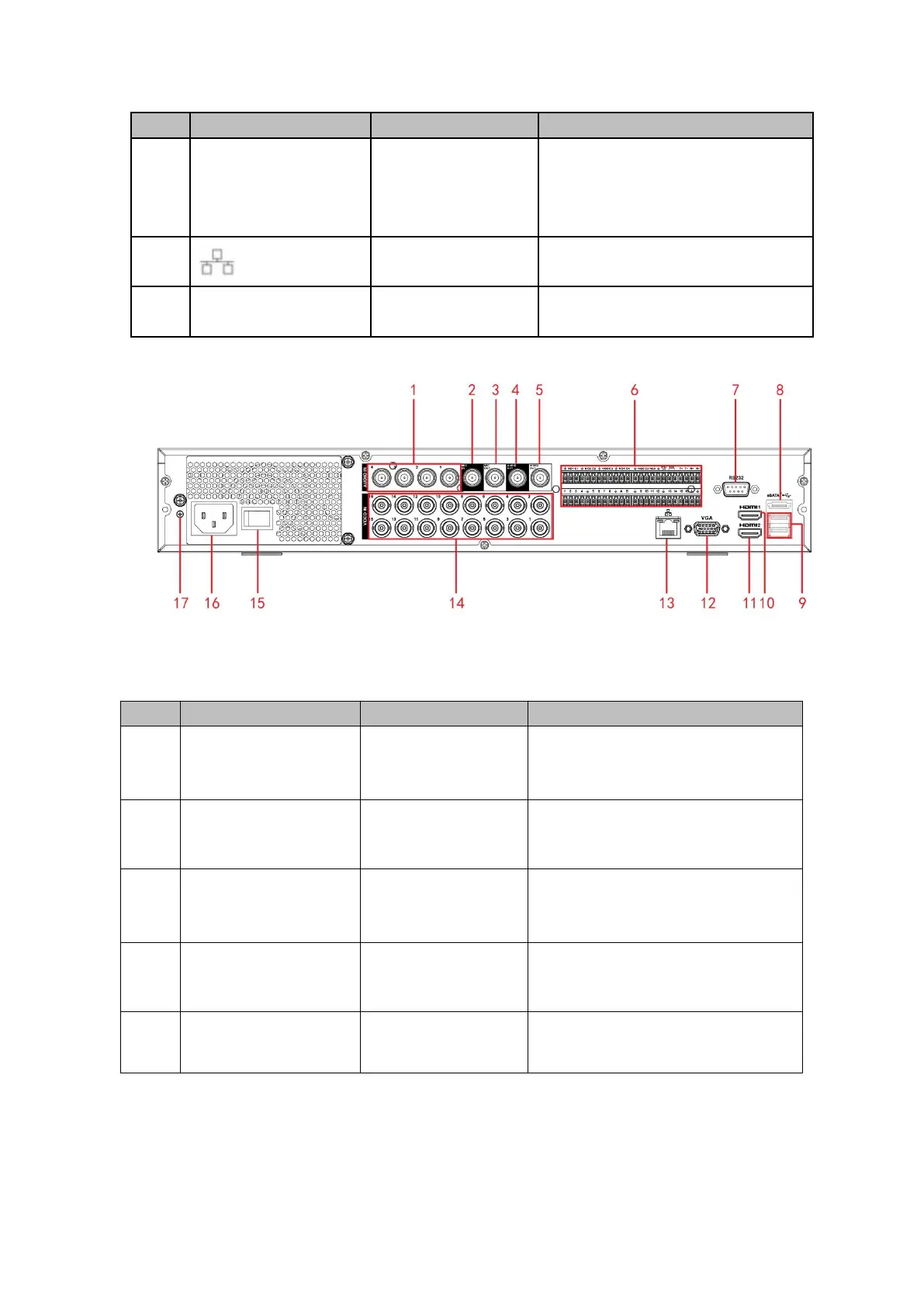

The XVR5416L/XVR7408L/XVR7416L rear panel is shown as below. See Figure 2- 85.
Figure 2- 85
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
AUDIO IN
Audio input port
It is to receive the analog audio
signal output from the devices such
as microphone.
2
MIC OUT
Audio output port
Audio output port. It is to output the
analog audio signal to the devices
such as the sound box.
3
MIC IN
Audio input port
It is to receive the analog audio
signal output from the devices such
as microphone.
4
AUDIO OUT
Audio output port
Audio output port. It is to output the
analog audio signal to the devices
such as the sound box.
5
VIDEO OUT
Video output port
Connect to video output devices
such as TV.
