265
SN
Icon
Name
Note
supplying when there is peripheral
connected HDD.
11
HDMI 1
High Definition
Media Interface 1
High definition audio and video
signal output port. It outputs the
same video source as VGA/TV.
Support mouse operation and
control.
12
RS-232
RS232 debug COM.
It is for general COM debug to
configure IP address or transfer
transparent COM data.
13
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
14
Network port
1000Mbps Ethernet port
15
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
16
HDMI2
High Definition
Media Interface 2
High definition audio and video
signal output port. Support
multiple-window video matrix
output. Support tour function.
17
Ground terminal
Ground

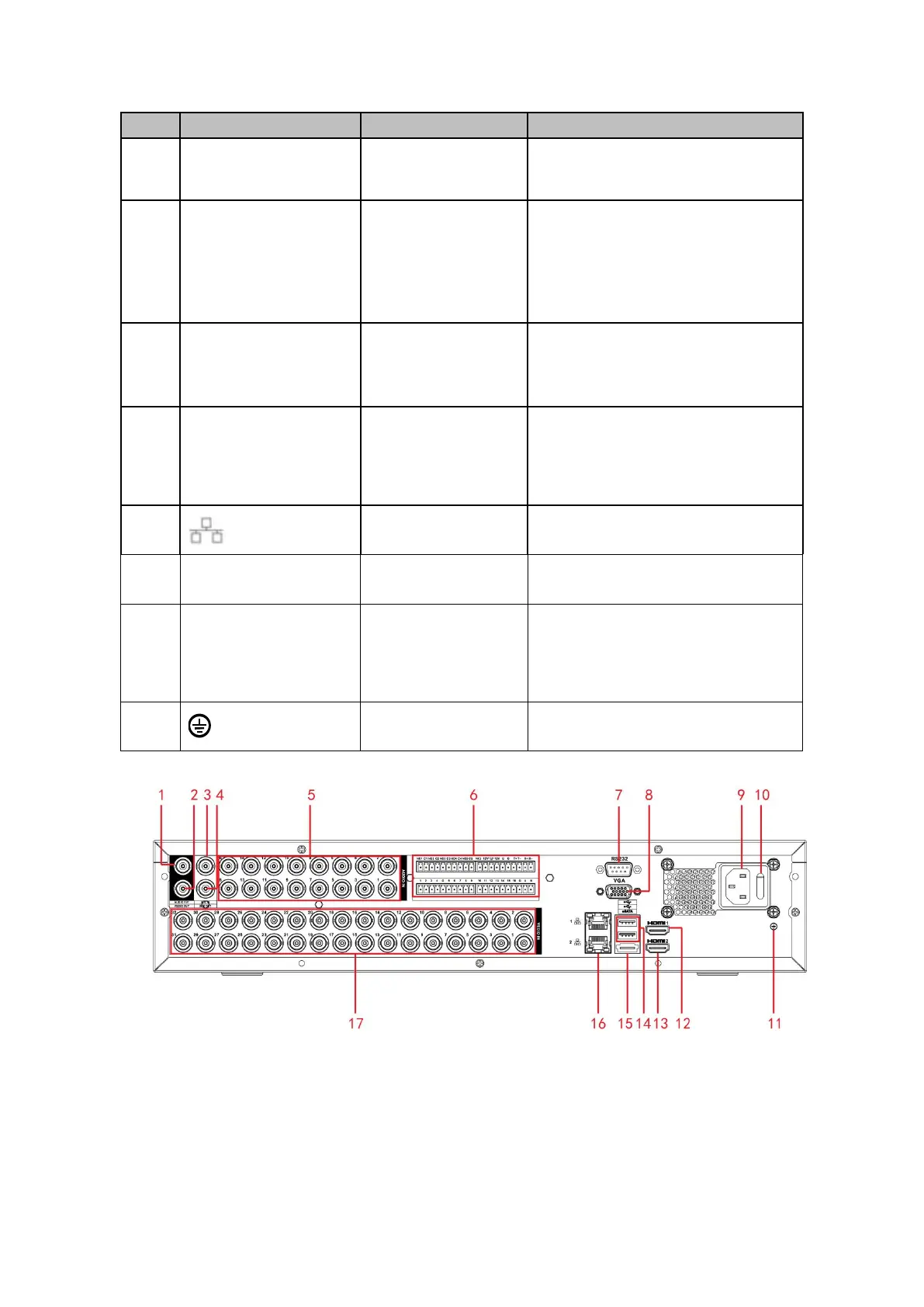

The XVR5832S rear panel is shown as below. See Figure 2- 89.
Figure 2- 89
Please refer to the following sheet for detailed information.
