Dahua XVR4108HS User Manual

350
3
Calendar

The blue highlighted date means there is picture or file. Otherwise, there is no
picture or file.

In any play mode, click the date you want to see, you can see the
corresponding record file trace in the time bar.
4
Playback
mode
and
channel
selection
pane.
 Playback mode:1/4/9/16/customized. (It may vary due to different series.)
 In 1-window playback mode: you can select 1-16 channels.
 In 4-window playback mode: you can select 4 channels according to your
requirement.
 In 9-window playback mode, you can switch between 1-8 and 9-16 channels.
 In 16-window playback mode, you can switch between1-16 and 17-32
channels.
 In customized mode, you can select one or more channel(s) you want to
playback at the same time. See chapter 4.7.1.4.
 The time bar will change once you modify the playback mode or the channel
option.
5
Card
number
search

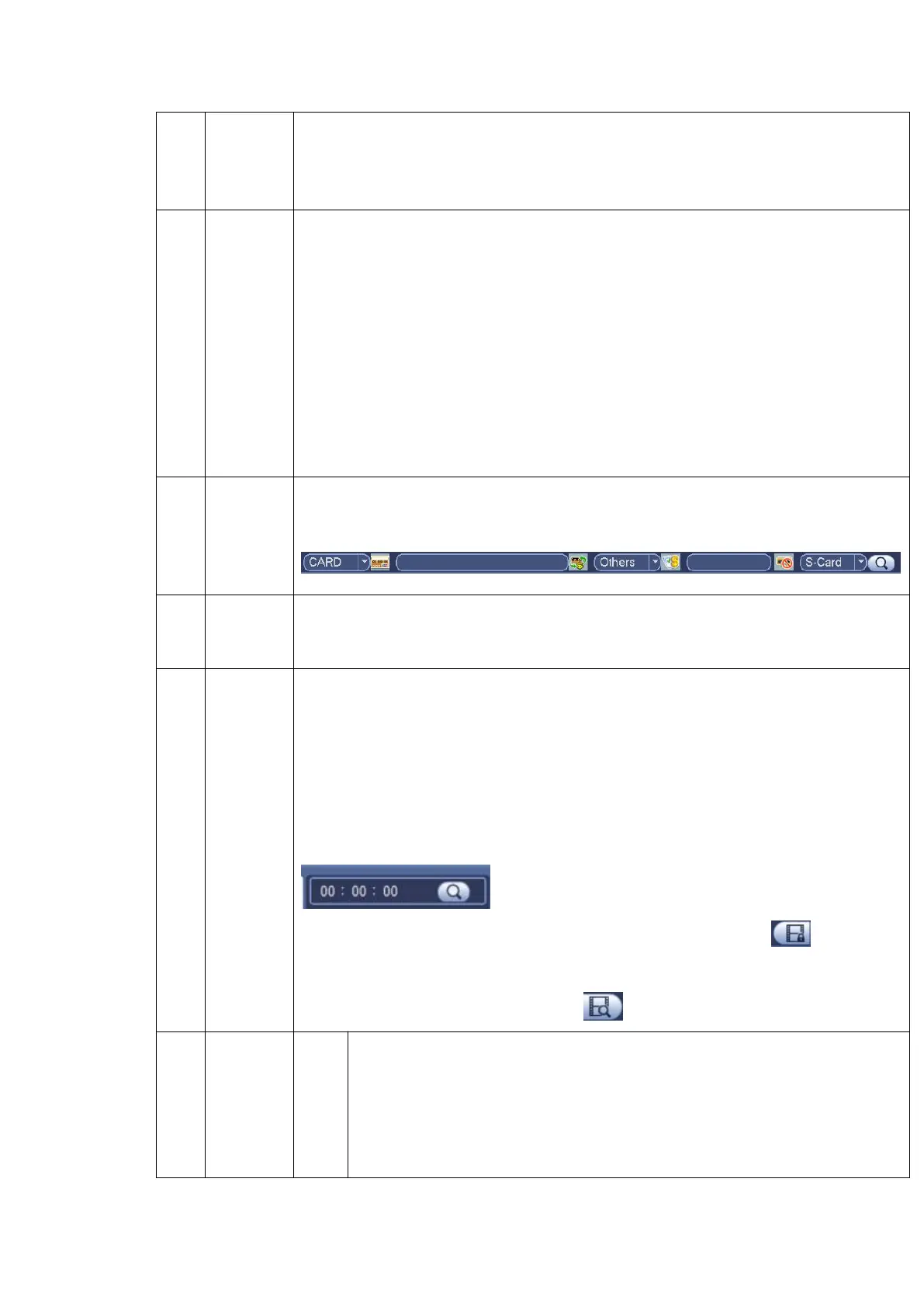

The card number search interface is shown as below. Here you can view card
number/field setup bar. You can implement advanced search.
6
Mark file
list button
Click it to go to mark file list interface. You can view all mark information of current
channel by time. Please refer to chapter 4.7.1.3 for detailed information.
Please note only the product of this icon supports mark function.
7
File list
switch
button

Double click it, you can view the picture/record file list of current day.

The file list is to display the first channel of the record file.
 The system can display max 128 files in one time. Use the

│and │

or the
mouse to view the file. Select one item, and then double click the mouse or click the
ENTER button to playback.

You can input the period in the following interface to begin accurate search.

File type:R—regular record; A—external alarm record; M—Motion detect
record.
 Lock file. Click the file you want to lock and click the button to lock. The
file you locked will not be overwritten.

Search locked file: Click the button to view the locked file.
8
Playback
control
pane.
►/
Play/Pause
There are three ways for you to begin playback.
 The play button
 Double click the valid period of the time bar.
 Double click the item in the file list.
In slow play mode, click it to switch between play/pause.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
