355

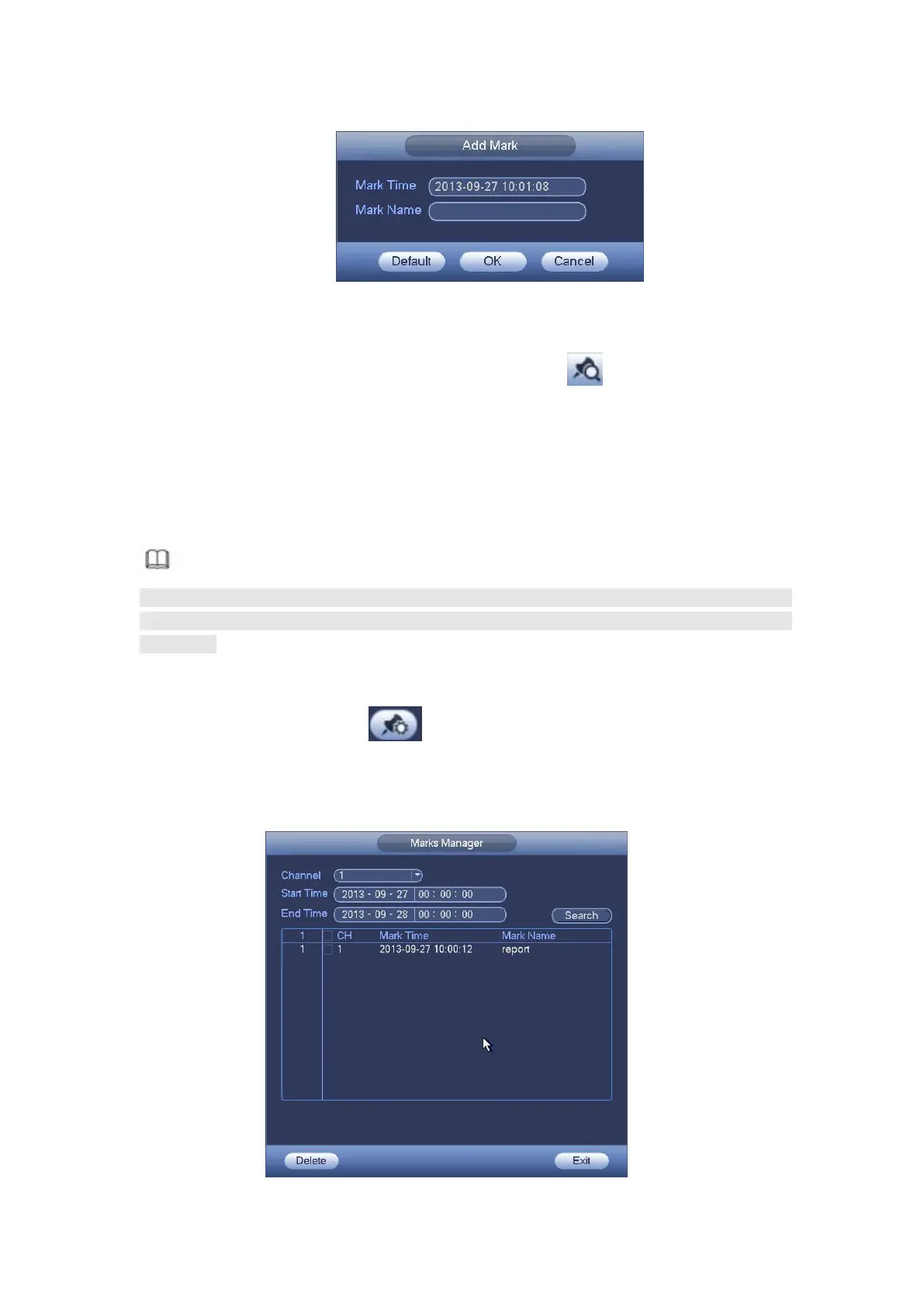

Figure 4- 74
Playback Mark
During 1-window playback mode, click mark file list button in Figure 4-71, you can
go to mark file list interface. Double click one mark file, you can begin playback from the
mark time.
Play before mark time
Here you can set to begin playback from previous N seconds of the mark time.
Note
Usually, system can playbacks previous N seconds record if there is such kind of record
file. Otherwise, system playbacks from the previous X seconds when there is such as kind
of record.
Mark Manager
Click the mark manager button on the Search interface (Figure 4- 71); you can go
to Mark Manager interface. See Figure 4- 75. System can manage all the record mark
information of current channel by default. You can view all mark information of current
channel by time.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR4108HS and is the answer not in the manual?

Dahua XVR4108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
USB2 USB 2.0
Power SupplyDC12V/2A
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
HDCVI Camera1080p@25/30 fps, 720p@25/30 fps
AHD Camera1080p@25/30 fps, 720p@25/30 fps
TVI Camera1080p@25/30 fps, 720p@25/30 fps
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output1 HDMI, 1 VGA
Display Split1/4/8/9
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart PhoneiPhone, iPad, Android
HDD1 SATA Port, up to 6TB
Video Input8 channels
IP Camera Input8+2 channel, each channel up to 5MP
Recording Resolution1080N, 720P, 960H, D1, HD1, CIF
Record RateMain Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate32 Kbps–6144 Kbps per channel
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution1920×1080, 1280×1024, 1280×720
Network InterfaceRJ-45 port (10/100M)
InteroperabilityONVIF
Working Environment-10°C to +55°C / 10% to 90% RH
Weight0.75kg (without HDD)
Two-way TalkReuse audio input/output channel 1
