Dahua XVR4108HS User Manual

390

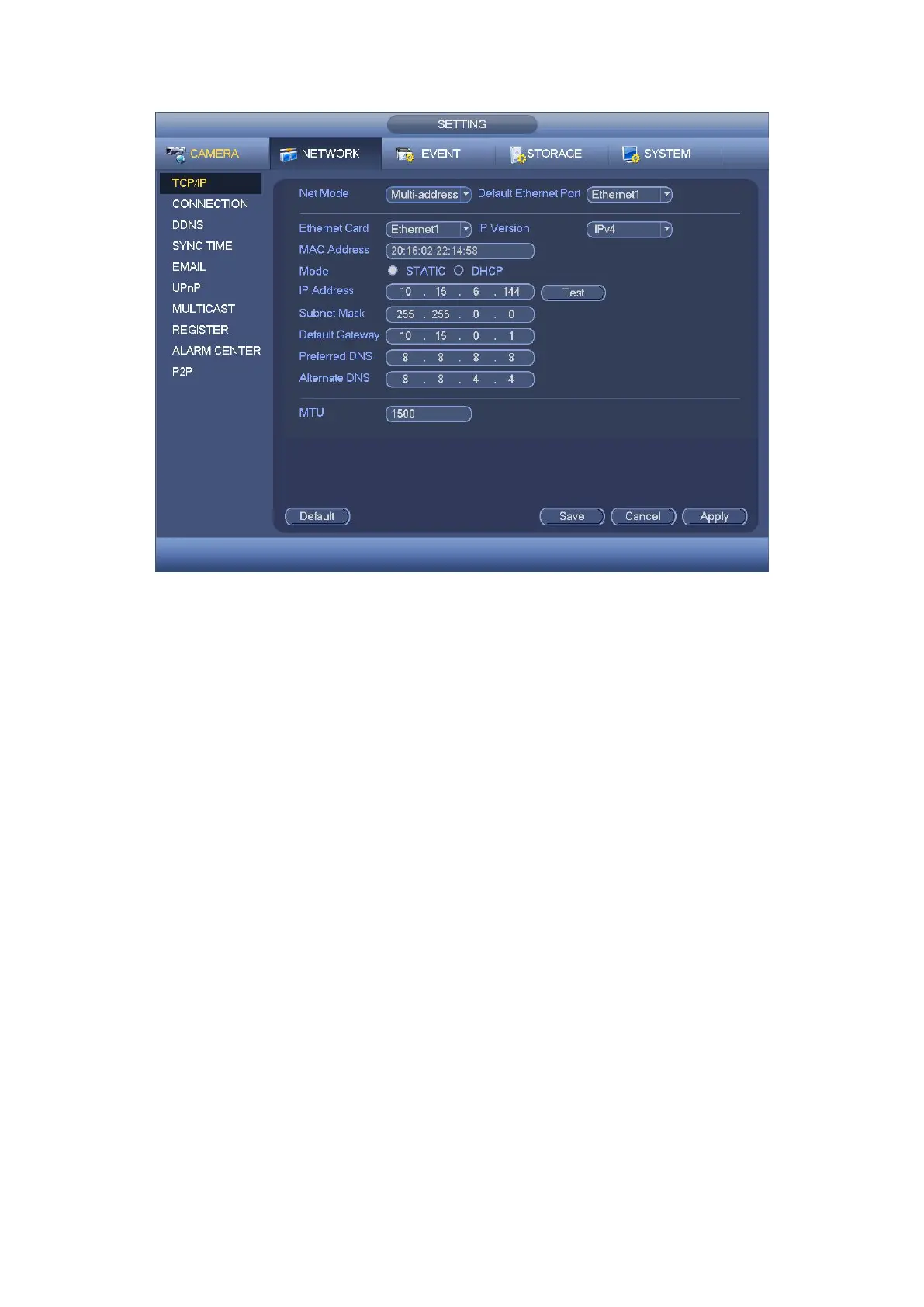

Figure 4- 119
4.9.2.2 Connection
The connection setup interface is shown as in Figure 4- 120.

Max connection: The max login client amount (WEB, platform, cellphone and
etc.).The value ranges from 1 to 128. The default setup is 128.

TCP port: Default value is 37777.

UDP port: Default value is 37778.

HTTP port: Default value is 80.

HTTPS port: Default value is 443.

RTSP port: Default value is 554.
Important: System needs to reboot after you changed and saved any setup of the
above five ports. Please make sure the port values here do not conflict.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
