Dahua XVR4108HS User Manual

393

3G/4G module: It is to display current wireless network adapter name.

3G/4G Enable/Disable: Check the box here to enable 3G/4G module.

Network type: There are various network types for different 3G/4G network modules.
You can select according to your requirements.

APN: It is the wireless connection server. It is to set you access the wireless network
via which method.

AUTH: It is the authentication mode. It supports PAP/CHAP.

Dial number: Please input 3G/4G network dialup number you got from your ISP.

User name: It is the user name for you to login the 3G/4G network.

Password: It is the password for you to login the 3G/4G network.

Pulse interval: You can set dialup duration. Once you disable the extra stream, the
connection time begins. For example, if you input 5 seconds here, then 3G/4G
network connection period is 5 seconds. The device automatically disconnect when
time is up. If there is no extra stream, 3G/4G network connection is valid all the time.
If the alive time is 0, then the 3G/4G network connection is valid all the time.

Dial: Here you can enable or disable 3G/4G network connection/disconnection
manually.

3G/4G wireless network: Here is to display wireless network status, SIM card status,
dial status. If the 3G/4G connection is OK, then you can see the device IP address
the wireless network automatically allocates.

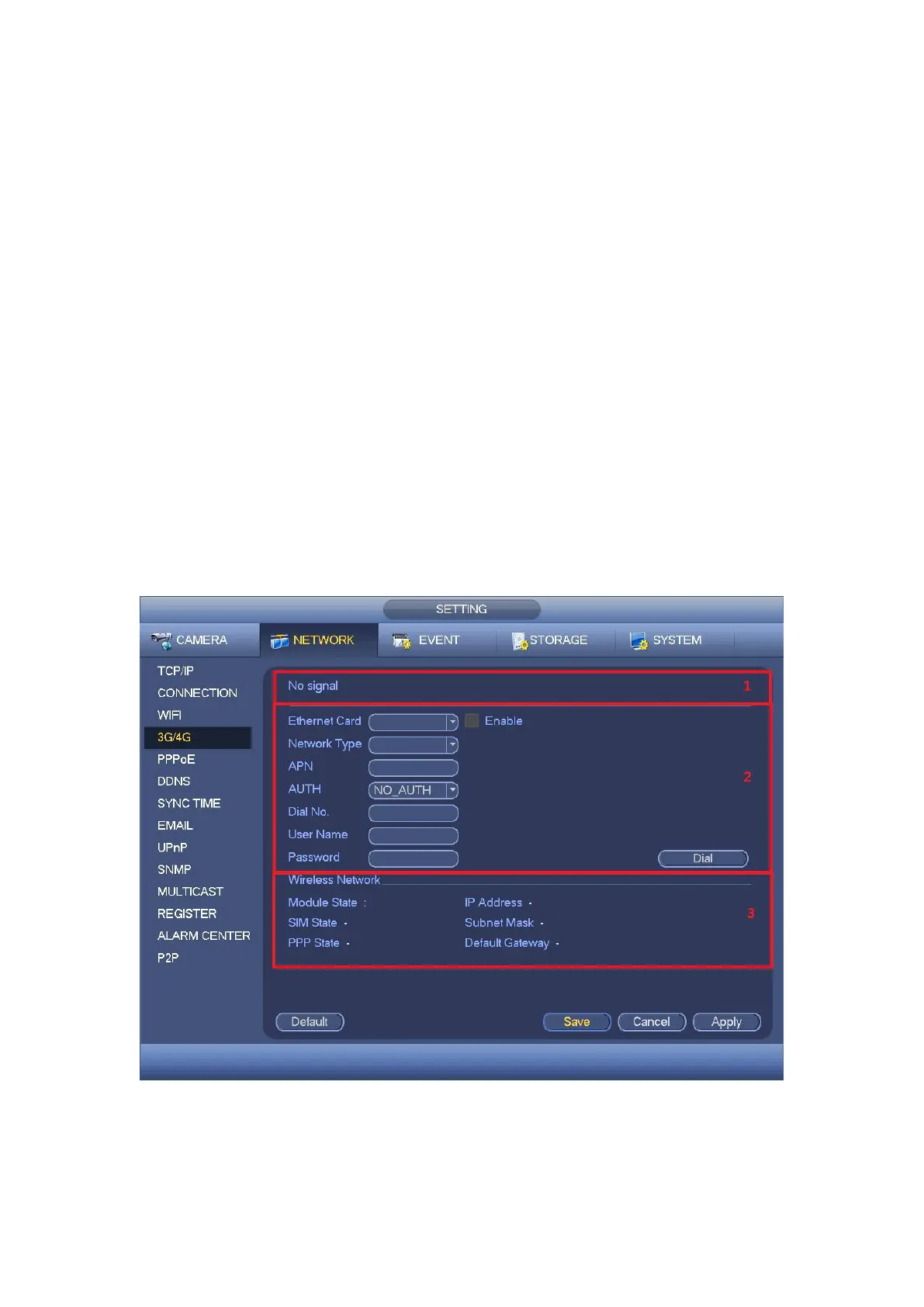

Figure 4- 122
Step 3 Click Apply or Save to complete setup.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
