443
Please follow the steps listed below to enable the activation snapshot function. After
you enabled this function, system can snapshot when the corresponding alarm
occurred.

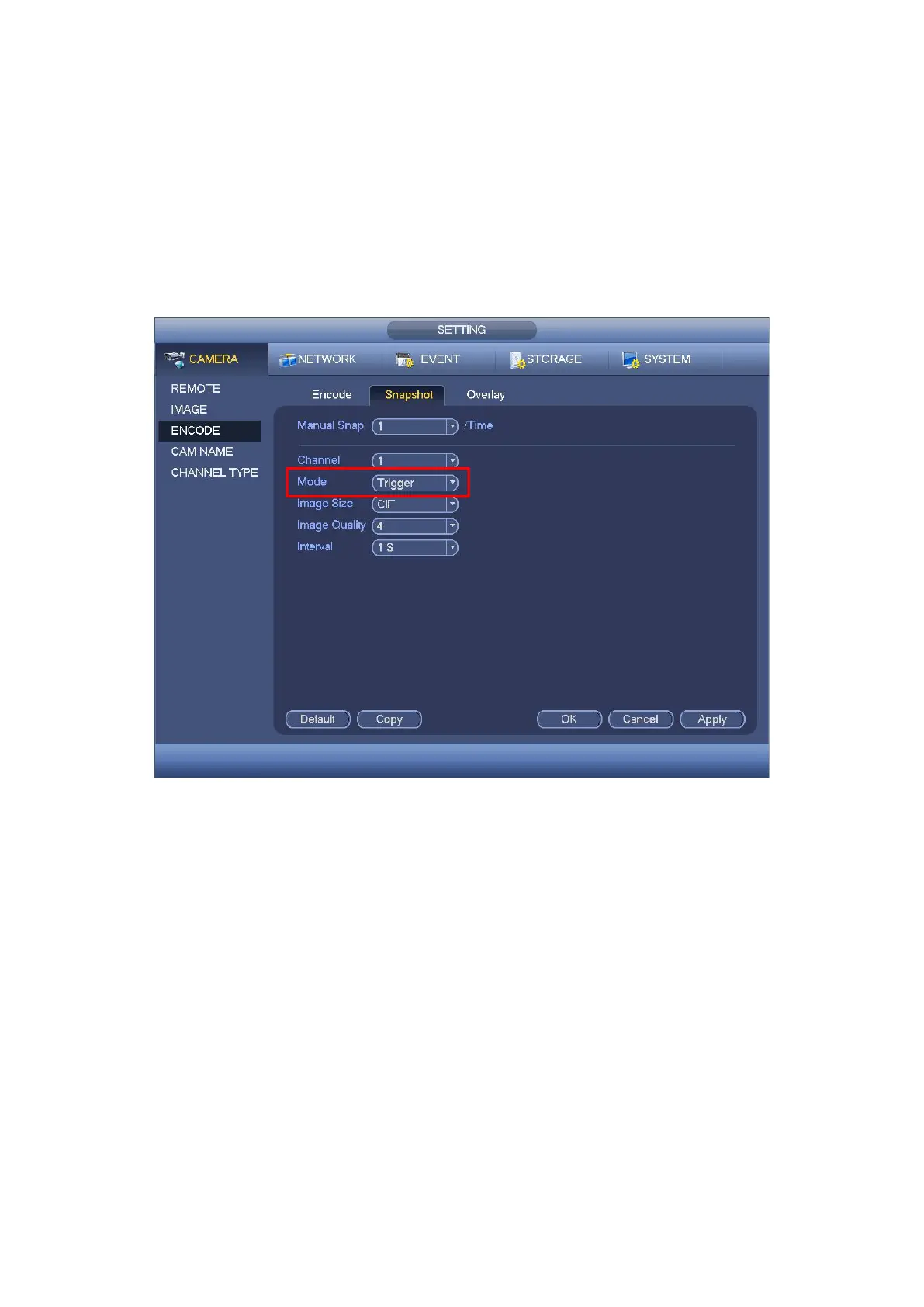

In main menu, from Setting->Camera->Encode->Snapshot interface, here you can
input snapshot mode as trigger, size, quality and frequency. See Figure 4- 179.
In main menu, from Setting->Event->Detect, please enable snapshot function for
specified channels (Figure 4- 180). Or in main menu, from Setting->Event->Alarm
(Figure 4- 181) please enable snapshot function for specified channels.
Figure 4- 179

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR4108HS and is the answer not in the manual?

Dahua XVR4108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
USB2 USB 2.0
Power SupplyDC12V/2A
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
HDCVI Camera1080p@25/30 fps, 720p@25/30 fps
AHD Camera1080p@25/30 fps, 720p@25/30 fps
TVI Camera1080p@25/30 fps, 720p@25/30 fps
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output1 HDMI, 1 VGA
Display Split1/4/8/9
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart PhoneiPhone, iPad, Android
HDD1 SATA Port, up to 6TB
Video Input8 channels
IP Camera Input8+2 channel, each channel up to 5MP
Recording Resolution1080N, 720P, 960H, D1, HD1, CIF
Record RateMain Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate32 Kbps–6144 Kbps per channel
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution1920×1080, 1280×1024, 1280×720
Network InterfaceRJ-45 port (10/100M)
InteroperabilityONVIF
Working Environment-10°C to +55°C / 10% to 90% RH
Weight0.75kg (without HDD)
Two-way TalkReuse audio input/output channel 1
