Dahua XVR4108HS User Manual

590

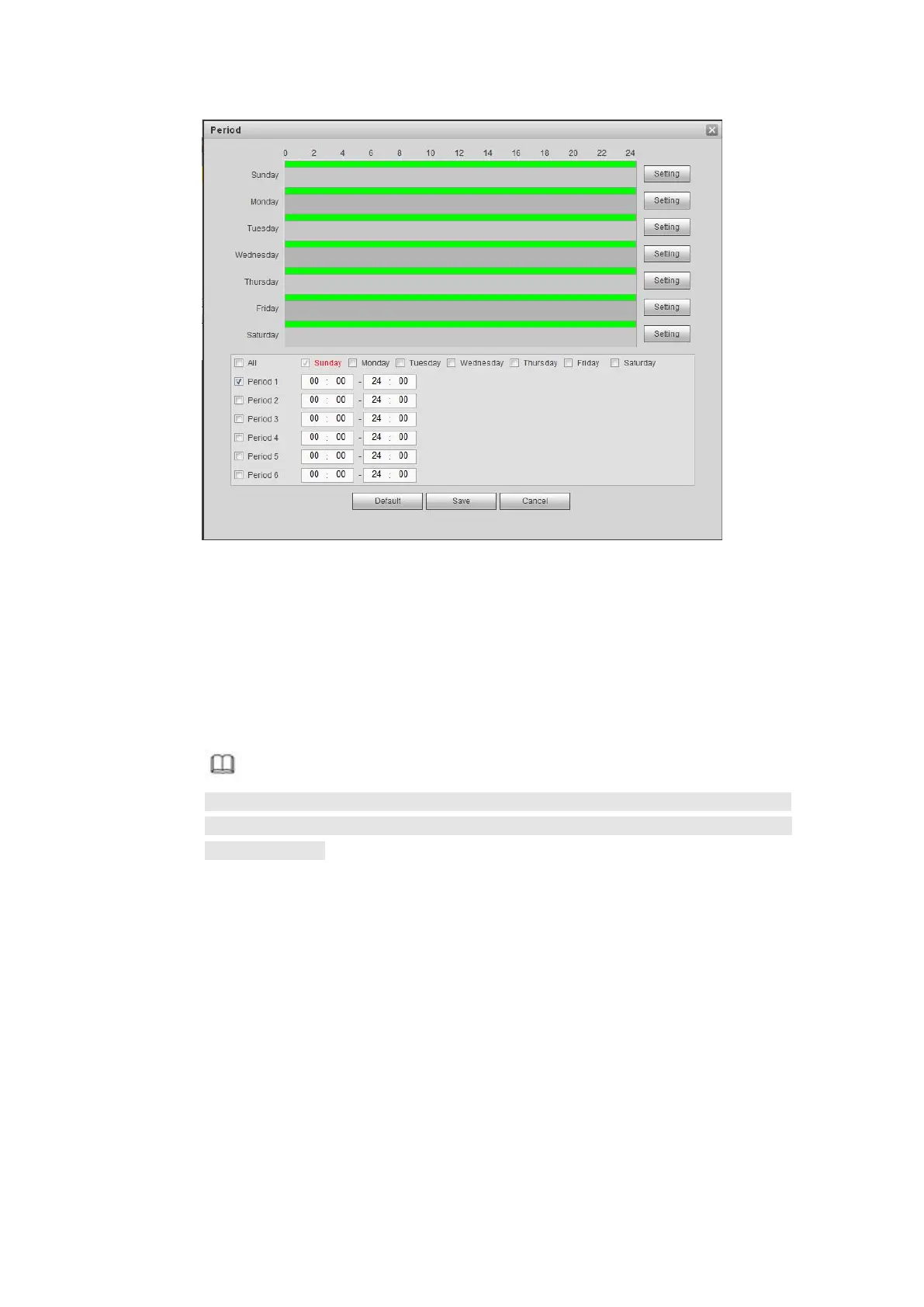

Figure 5- 135

Click Setting to set the periods. Or you can draw on the interface directly.
There are six periods in one day. Or you can input start time and end time
directly.

Check the box before the date, the settings are for the selected date(s).

Check the box before the period1-6, it is to enable the period function.
Step 4 Click Save to complete the setup.
Note
Please note the user rights shall not exceed the group right setup. For
convenient setup, please make sure the general user has the lower rights setup
than the admin.
Modify user
It is to modify the user property, belonging group, password and rights. See Figure 5- 136.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
