Dahua XVR4108HS User Manual

595

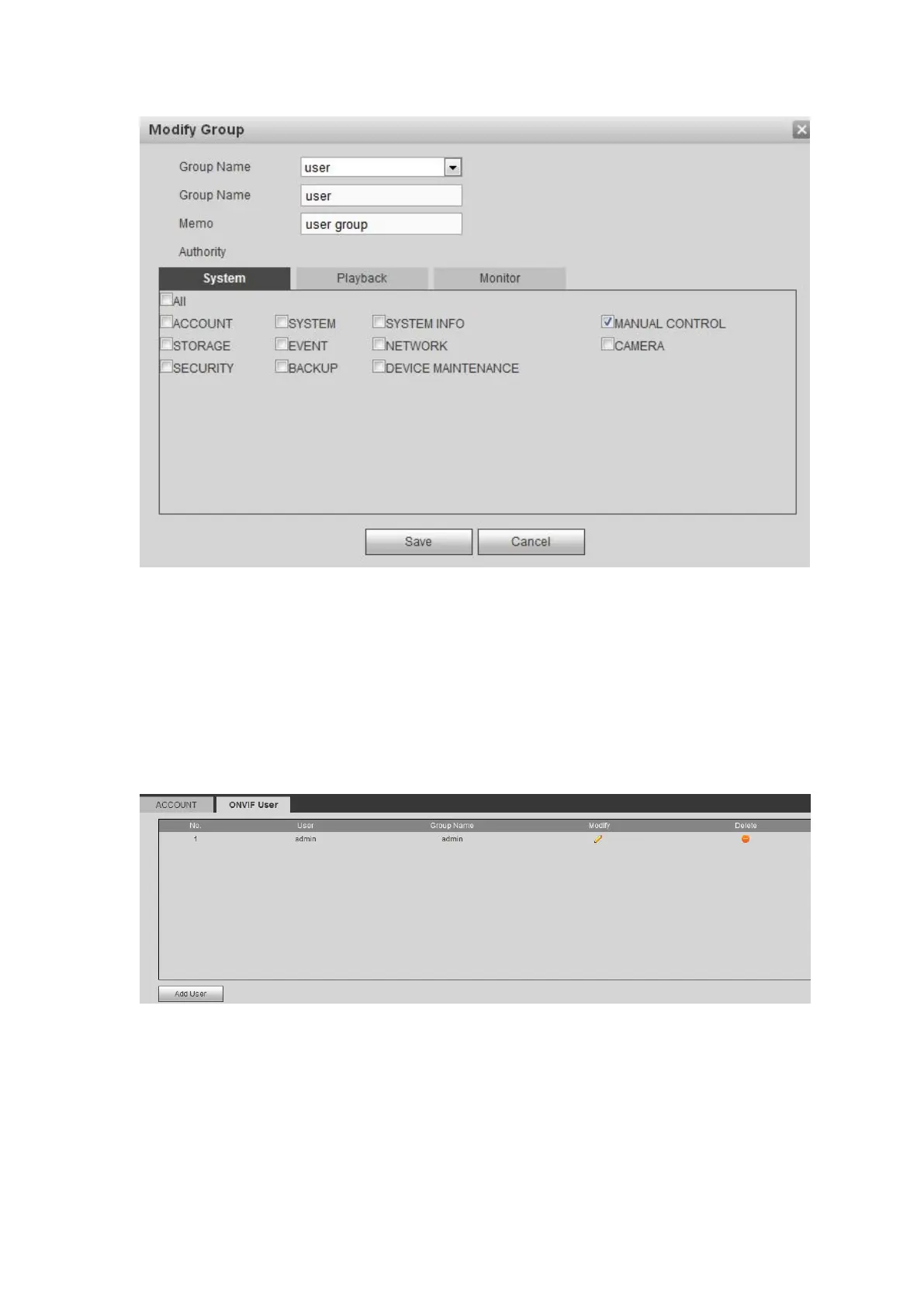

Figure 5- 141
Step 2 Change corresponding information and then click Save button.
5.10.5.9.3 ONVIF User
When the camera from the third party is connected with the DVR via the ONVIF user,
please use the verified ONVIF account to connect to the DVR.
Step 1 From main menu->Setting->System->Account->ONVIF User.
Enter ONVIF user interface. See Figure 5- 142.
Figure 5- 142
Step 2 Click Add user button.
Enter add user interface. See Figure 5- 143.

Dahua XVR4108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
USB	2 USB 2.0
Power Supply	DC12V/2A
Main Processor	Embedded Processor
Operating System	Embedded LINUX
HDCVI Camera	1080p@25/30 fps, 720p@25/30 fps
AHD Camera	1080p@25/30 fps, 720p@25/30 fps
TVI Camera	1080p@25/30 fps, 720p@25/30 fps
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart Phone	iPhone, iPad, Android
HDD	1 SATA Port, up to 6TB
Video Input	8 channels
IP Camera Input	8+2 channel, each channel up to 5MP
Recording Resolution	1080N, 720P, 960H, D1, HD1, CIF
Record Rate	Main Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate	32 Kbps–6144 Kbps per channel
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution	1920×1080, 1280×1024, 1280×720
Network Interface	RJ-45 port (10/100M)
Interoperability	ONVIF
Working Environment	-10°C to +55°C / 10% to 90% RH
Weight	0.75kg (without HDD)
Two-way Talk	Reuse audio input/output channel 1
