606
Check the file(s) you want to download and there are two options for you to save the
file(s).
Download to local

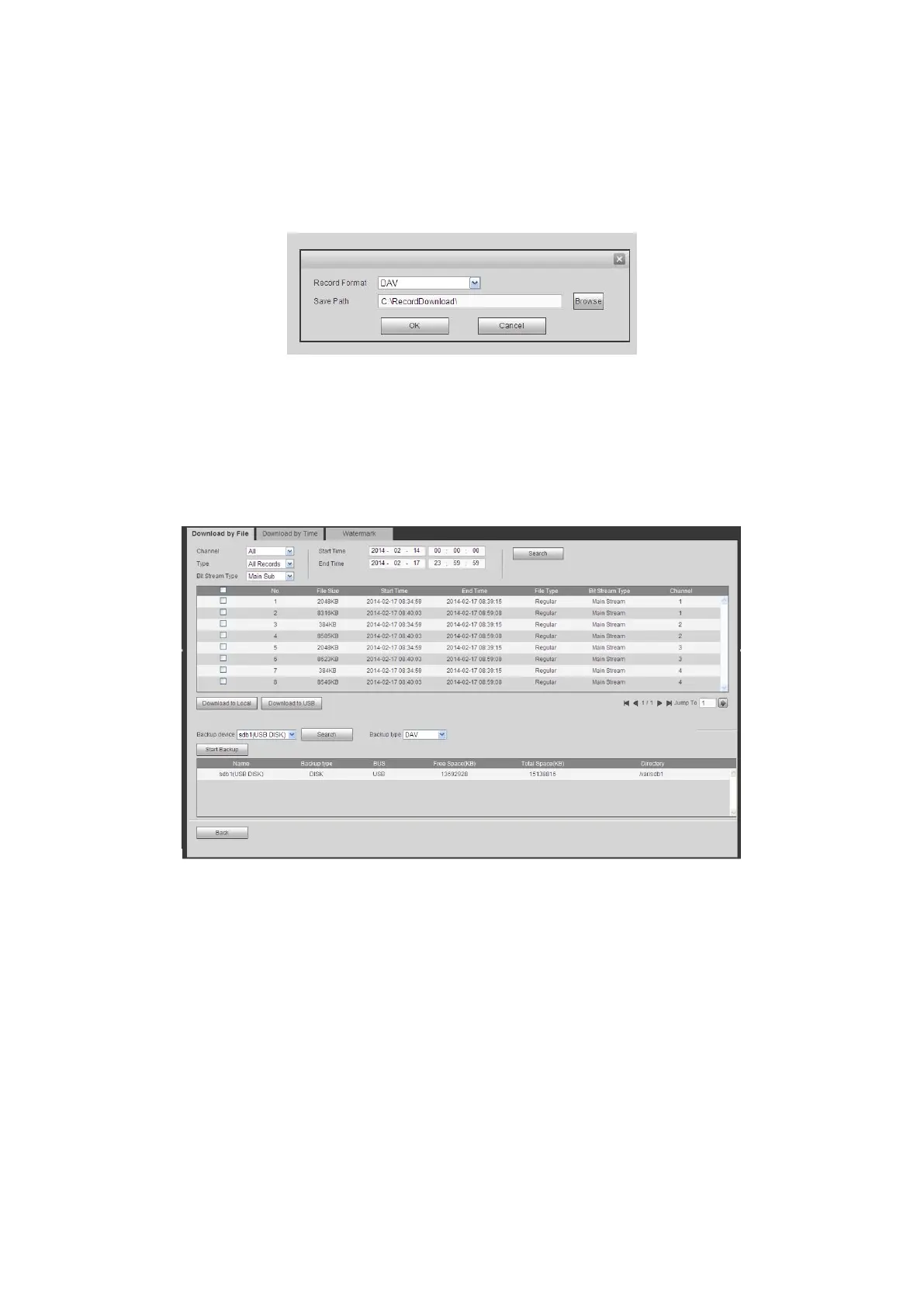

Click Download to local, system pops up the following interface for you to set record
format and saved path. See Figure 5- 160.
Figure 5- 160
You can click OK to download and view the download process. After the download
operation, you can see corresponding dialog box.
Download to USB
Connect the corresponding p peripheral device, and then click Download to USB button,
you can see the following interface. See Figure 5- 161.
Figure 5- 161
Select Backup device and backup type first and then click Start backup button.
After the download operation, you can see corresponding dialogue box.
5.12.6.2 Download by Time
Select channel, bit stream type, start time and end time.
Click Download to Local button, you can see download by time interface is shown as in
Figure 5- 162.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR4108HS and is the answer not in the manual?

Dahua XVR4108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
USB2 USB 2.0
Power SupplyDC12V/2A
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
HDCVI Camera1080p@25/30 fps, 720p@25/30 fps
AHD Camera1080p@25/30 fps, 720p@25/30 fps
TVI Camera1080p@25/30 fps, 720p@25/30 fps
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Video Output1 HDMI, 1 VGA
Display Split1/4/8/9
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Smart PhoneiPhone, iPad, Android
HDD1 SATA Port, up to 6TB
Video Input8 channels
IP Camera Input8+2 channel, each channel up to 5MP
Recording Resolution1080N, 720P, 960H, D1, HD1, CIF
Record RateMain Stream: 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Bit Rate32 Kbps–6144 Kbps per channel
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Resolution1920×1080, 1280×1024, 1280×720
Network InterfaceRJ-45 port (10/100M)
InteroperabilityONVIF
Working Environment-10°C to +55°C / 10% to 90% RH
Weight0.75kg (without HDD)
Two-way TalkReuse audio input/output channel 1
