3.3 Editing Using an External Personal Computer
3-16

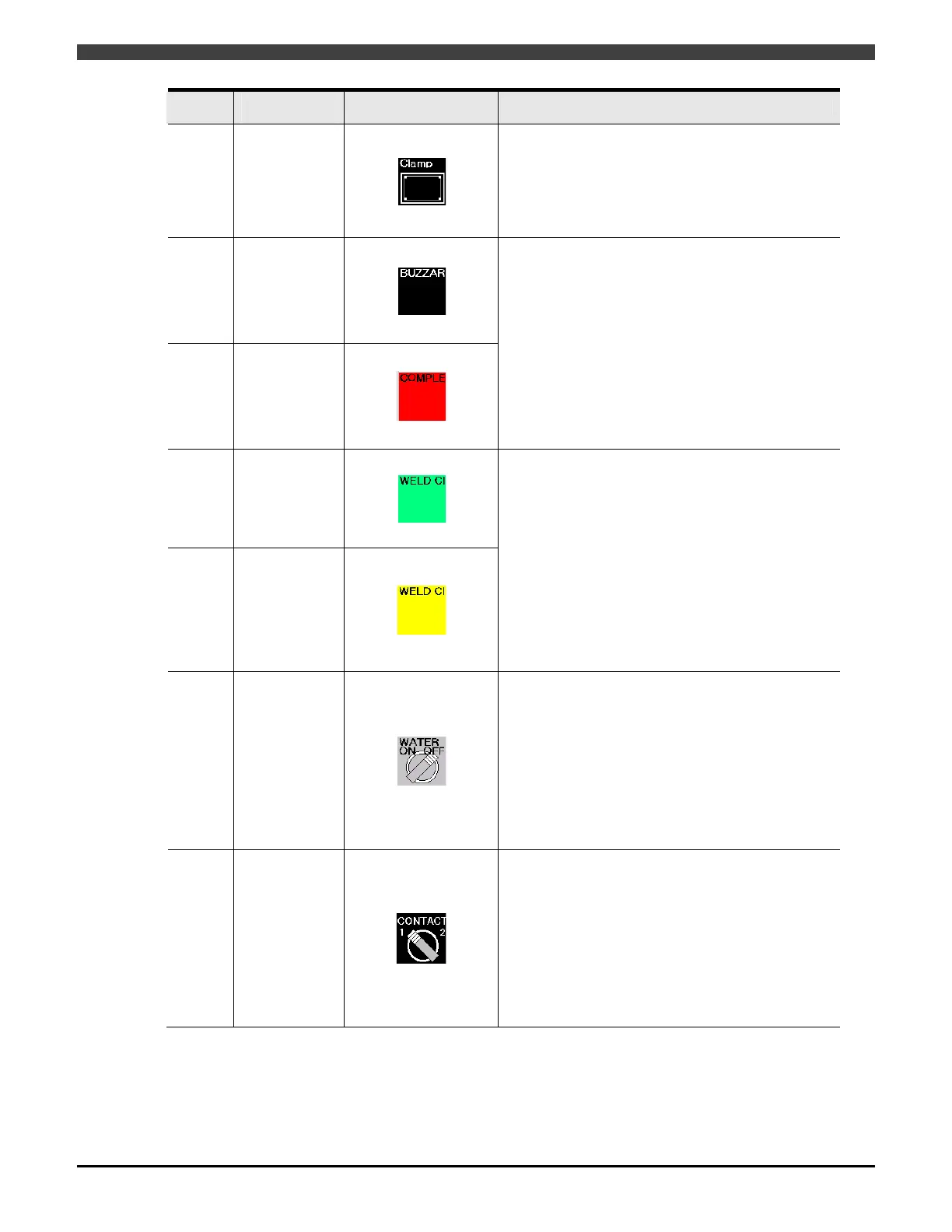

Description of
Code External appearance Format
function
3001 Square lamp
4: Input signal to be displayed
5: Output signal to be displayed
6:
! mark display (0: don't show/1: When ON/2: When OFF)
7: “0”
No descriptions are required for all parameters from
8 onward.
3002 Push Button
(alternation
type)
3003 Push Button
(momentary
type)
In sequence from the first parameter:
1: Color when ON
2: Color when OFF
3: Output signal
4: Operation method (0: Standard/1: Enable)
5:
! mark display (0: don't show/1: When ON/2: When OFF)
6: Operation inhibit (0: Enabled / 1: Disabled)
7: Touch panel button (0: Enabled / 1: Disabled)
8: “0”
No descriptions are required for all parameters from
9 onward.
3004 Flash Push
Button
(alternation
type)
3005 Flash Push
Button
(momentary
type)
In sequence from the first parameter:
1: Color when ON
2: Color when OFF
3:
Display data selection (0: Input signal/1: Output signal)
4: Input signal to be displayed
5: Output signal to be displayed
6: Output signal
7: Operation method (0: Standard/1: Enable)
8:
! mark display (0: don't show/1: When ON/2: When OFF)
9: Operation inhibit (0: Enabled / 1: Disabled)
10: Touch panel button (0: Enabled / 1: Disabled)
11: “0”
No descriptions are required for all parameters from 12
onward.
3010 Selector switch
(ON/OFF)
In sequence from the first parameter:
1: Base color
2: Lever color
3: ON position (0: Left/1: Right)
4: Output signal
5: Operation method (0: Standard/1: Enable)
6: Operation inhibit (0: Enabled / 1: Disabled)
7: “0”
No descriptions are required for all parameters from
8 onward.
3011 Contacts
switch (two
contacts)
In sequence from the first parameter:
1: Base color
2: Lever color
3: Output signal 1
4: Output signal 2
5: Operation method (0: Standard/1: Enable)
6: Operation inhibit (0: Enabled / 1: Disabled)
7: “0”
No descriptions are required for all parameters from
8 onward.
To Next Page
