4.1 Basic Operation
4-3
4.1.2 Using operation switches
＋
1
First, operations on the interface panel screen must be enabled.
Press the Operation Disable/Enable switch at the upper right-hand corner
(Position 1H) once. If the “Common switch operation method” is set to “Enable
simultaneous”, operate the switch while pressing the [ENABLE] key.
>> The selector switch for enabling/disabling operations turns to "Enabled".
Now operations of all switches on the interface panel screen are enabled.
2
Operate the operation switches.

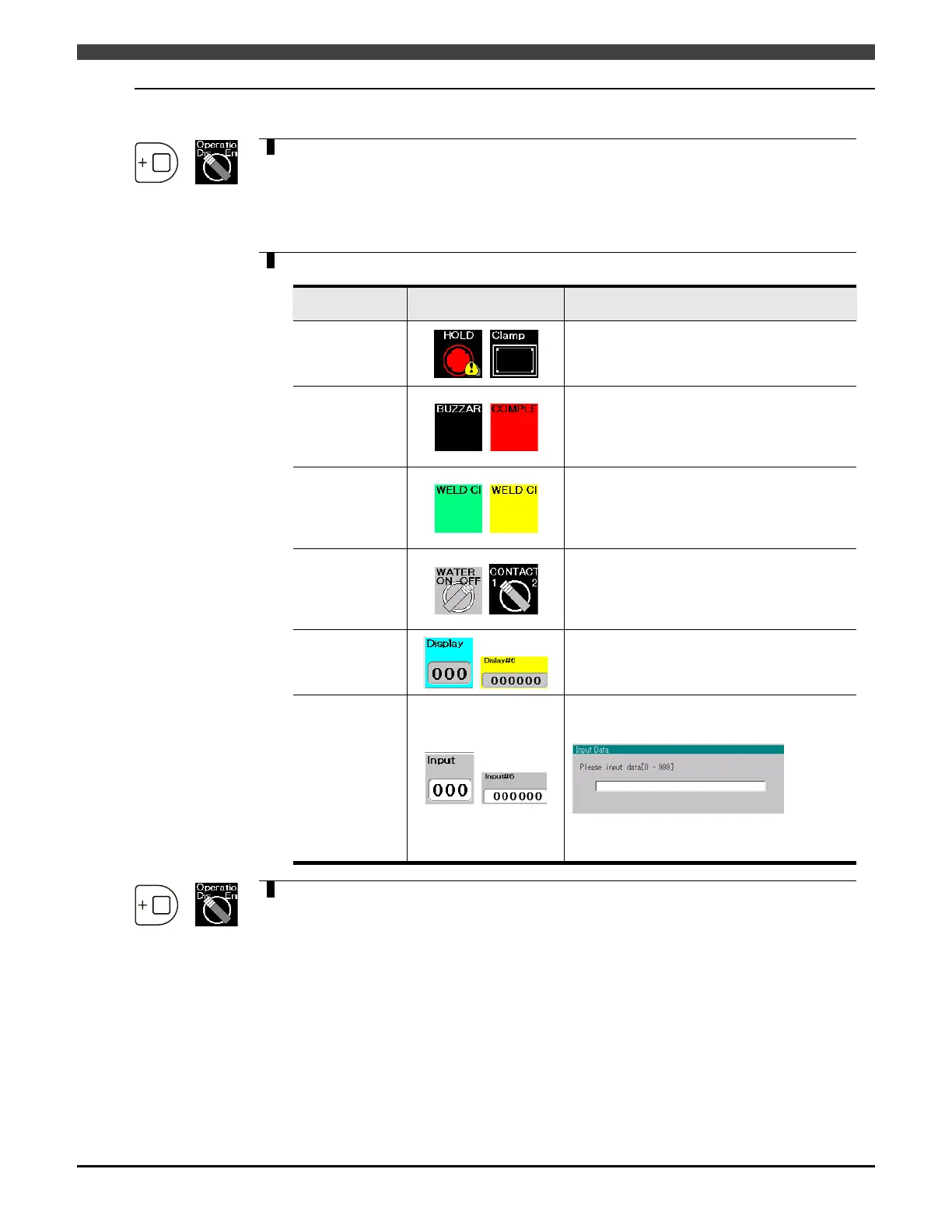

Description of
function
External appearance Operation
Lamp
(No operation performed)
Push button
Pressing this key switches the status
between ON/OFF in the alternation or
momentary mode.
(Operation with [ENABLE] also available)
Flash push
button
Pressing this key switches the status
between ON/OFF in the alternation or
momentary mode.
(Operation with [ENABLE] also available)
Selector switch
Pressing this key switches the position
between right and left.
(Operation with [ENABLE] also available)
Display
(No operation performed)
Digital switches
(data input)
When touched, an input dialog box
shown below is displayed. Input the
desired data in this box and press [Enter].
If no data is to be set, press [RESET/R] to
close the dialog box.
＋
3
If no operation is to be performed, to ensure safety disable all operations on the
interface panel. Press the Operation Disable/Enable switch at the upper
right-hand corner (Position 1H) once. If the “Common switch operation method” is
set to “Enable simultaneous”, operate the switch while pressing the [ENABLE]
key.
>> The selector switch for enabling/disabling operations turns to "Disabled".
Now operations of all switches on the interface panel screen are disabled.
To Next Page
