4.Press the .
To cancel the setting, press the “”.
Ex.: For the zone of the figure 1 you can set the operation mode
to “Fan”, “Cool”, “Heat”, “Set Point”, or “Auto”. When one or
more air conditioners in the zone do not have Cool/Heat
option, you can select only Fan or “Set Point” mode.
6-6 Changing the Temperature Setting
■
■■
■ Procedure for changing the temperature setting
Change the temperature setting of air conditioners.
On the Monitoring screen, operation is allowed with either Icon
or List as the display type.
In the figure (Screen 1) the devices are displayed in the Icon dis-
play mode.
The temperature setting can be switched by zone or by group.
When all the air conditioners in the selected group or zone
are in the Fan mode, the temperature setting cannot be
changed.
[Procedure]
1.On Screen 1 Monitoring, select a zone or a group from the
pull-down menu (1).
Select a zone or a group of which the temperature setting is
to be changed (2).
To change the setting for all the devices in a group, select the
zone including the group from the zone tree area (1), and
select the group from the main display area (2).
2.Press the . Screen 2 Operation appears.
3.Select the Set checkbox (3) in the Set temperature frame,
and set the integral and decimal parts using the pull-down
menus (4).
In a zone setting, the pull-down menus are pre-populated
with allowable temperature values for the air conditioners
in the zone. See the following example.
4.Press the .
To cancel the setting, press the “”.
Ex.: For the zone setting in the figure 1, the temperature settings
available are between 20°C and 30°C inclusive.
When the temperature setting is 30°C, the actual temperature
settings for air conditioners are as shown in the figure 2.
NOTE
Range of temperature settings available is the range specified in
accordance with the following.
• Range of temperature settings inherent to the air conditioner
main unit.
• Range of temperature as a result of the restriction by temper-
ature setting limit set on the intelligent Touch Controller con-
sole.
For more information refer to the intelligent Touch Controller
manual.

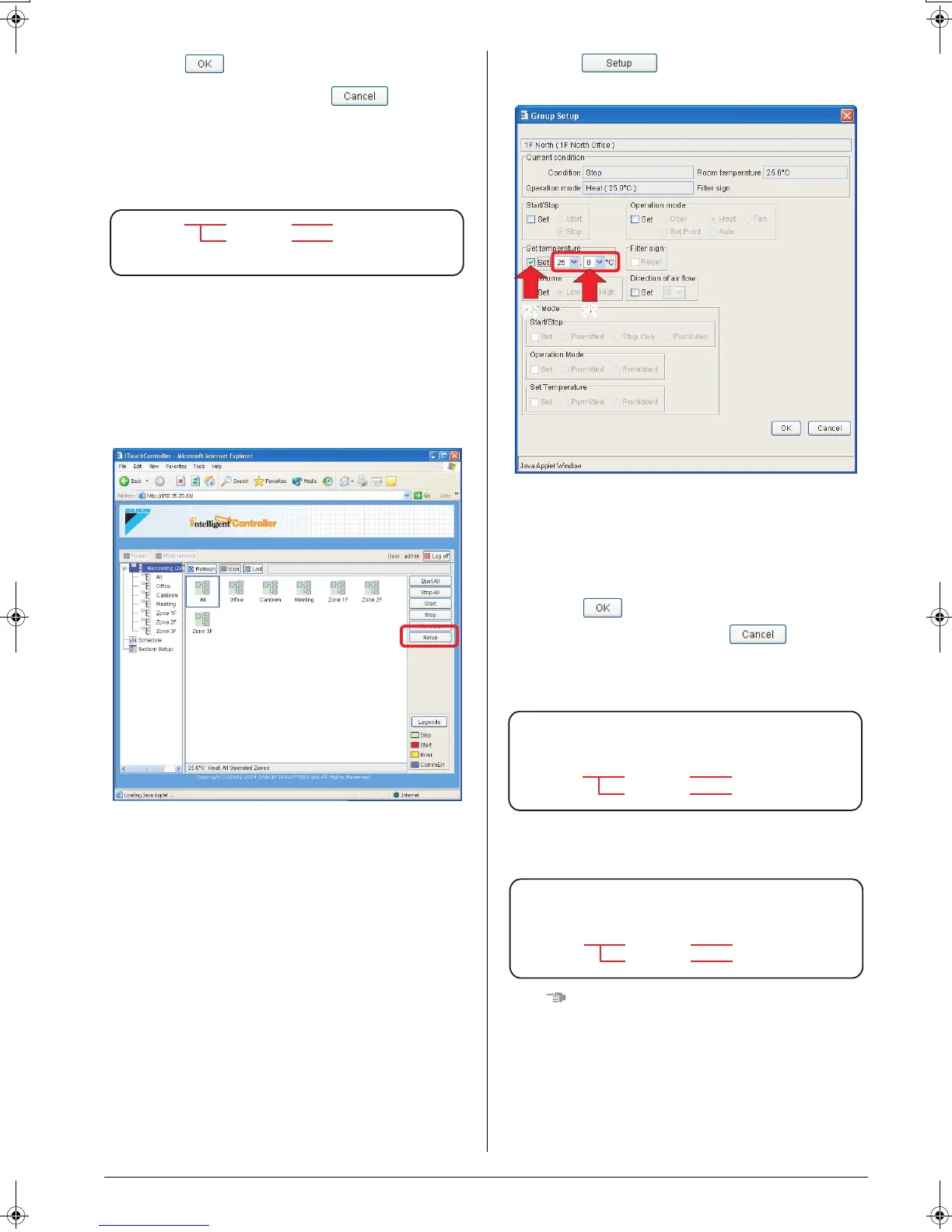

Canteen 1F North [Set Point] [Fan]
1F West [Cool] [Heat]
[Auto] [Fan]
Figure 1
(1)
(2)
Screen 1: Main screen
(3) (4)
Screen 2: Setup screen
Canteen 1F North 25 - 30˚C
1F West 20 - 25˚C
Zone name Group name Range of temperature
settings available
(see NOTE)
Figure 1
Canteen 1F North 30˚C
1F West 25˚C
Zone name Group name Range of temperature
settings available
(see NOTE)
Figure 2
