Daikin DCS004A51 - Using the Schedule Menu; Creating Regular Schedule Patterns

42 English

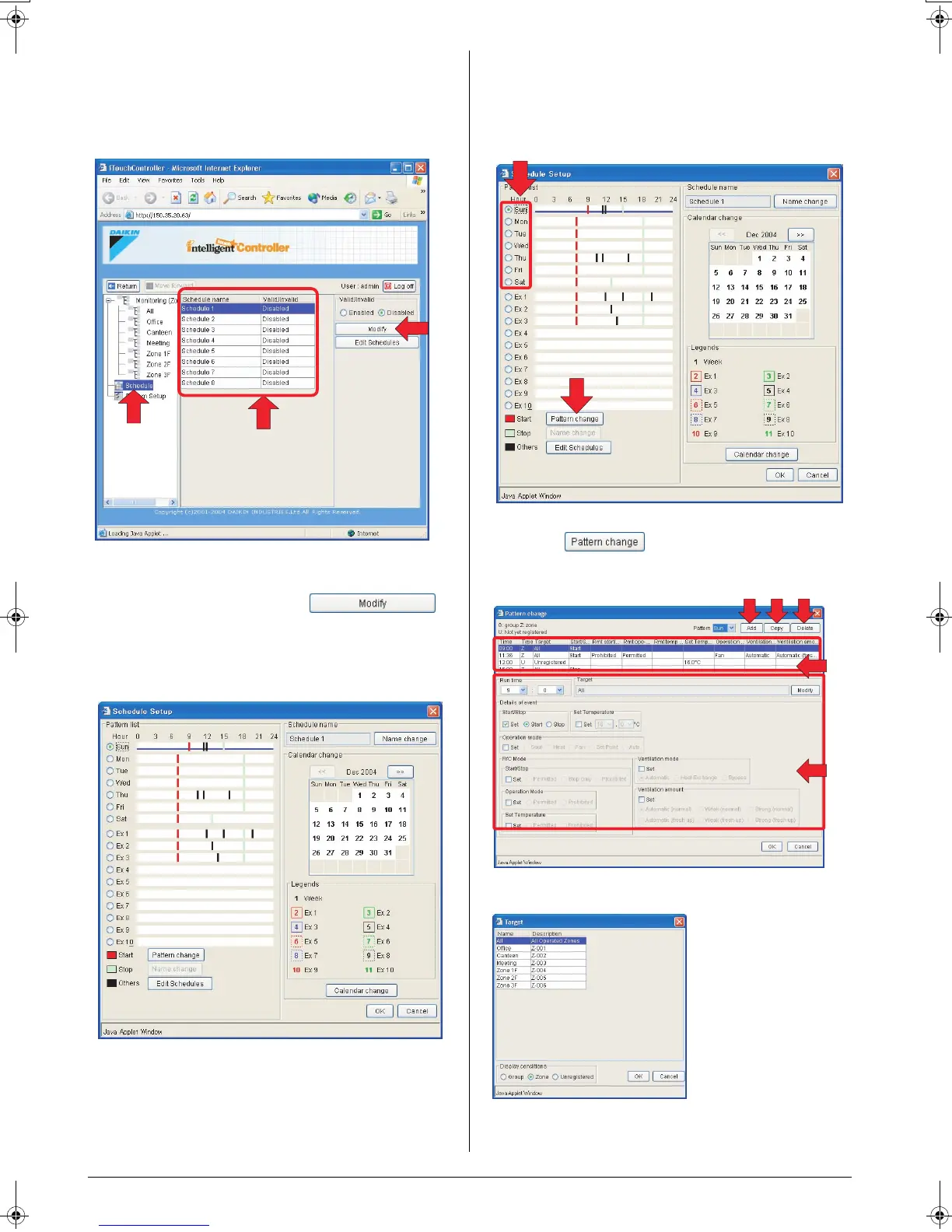

8-3 Using the Schedule Menu
■
■■
■ To edit a schedule program
[Procedure]
1.Select the Schedule node (1) from the zone tree area.
2.The schedule program list (2) appears. You can create up to
8 schedule programs. Select the schedule program you want
to set up or change, and click the “”
(3) button.
3.The Schedule Setup dialog box (Screen 2) appears where
you can set up or change the schedule program.
See the following pages for the instructions.
• Regular schedule pattern: (This page)
• Ex schedule pattern: (See page 44)
8-4 Creating Regular Schedule Patterns
■
■■
■ To create regular schedule patterns
1.To create regular schedule patterns (Sun to Sat), select a tar-
get day of the week by clicking an appropriate pattern radio
button (1).
2.Click the “” button (2) to display the Pattern
change dialog box (Screen 2).
(1)
(2)
(3)
Screen1: Main scheduling screen
Screen 2: Schedule Setup dialog box
(1)
Screen1: Schedule Setup screen
(1)
(2)
Screen 2: Pattern change dialog box
(3) (4) (5)
(6)
(7)
Screen 3: Target dialog box
