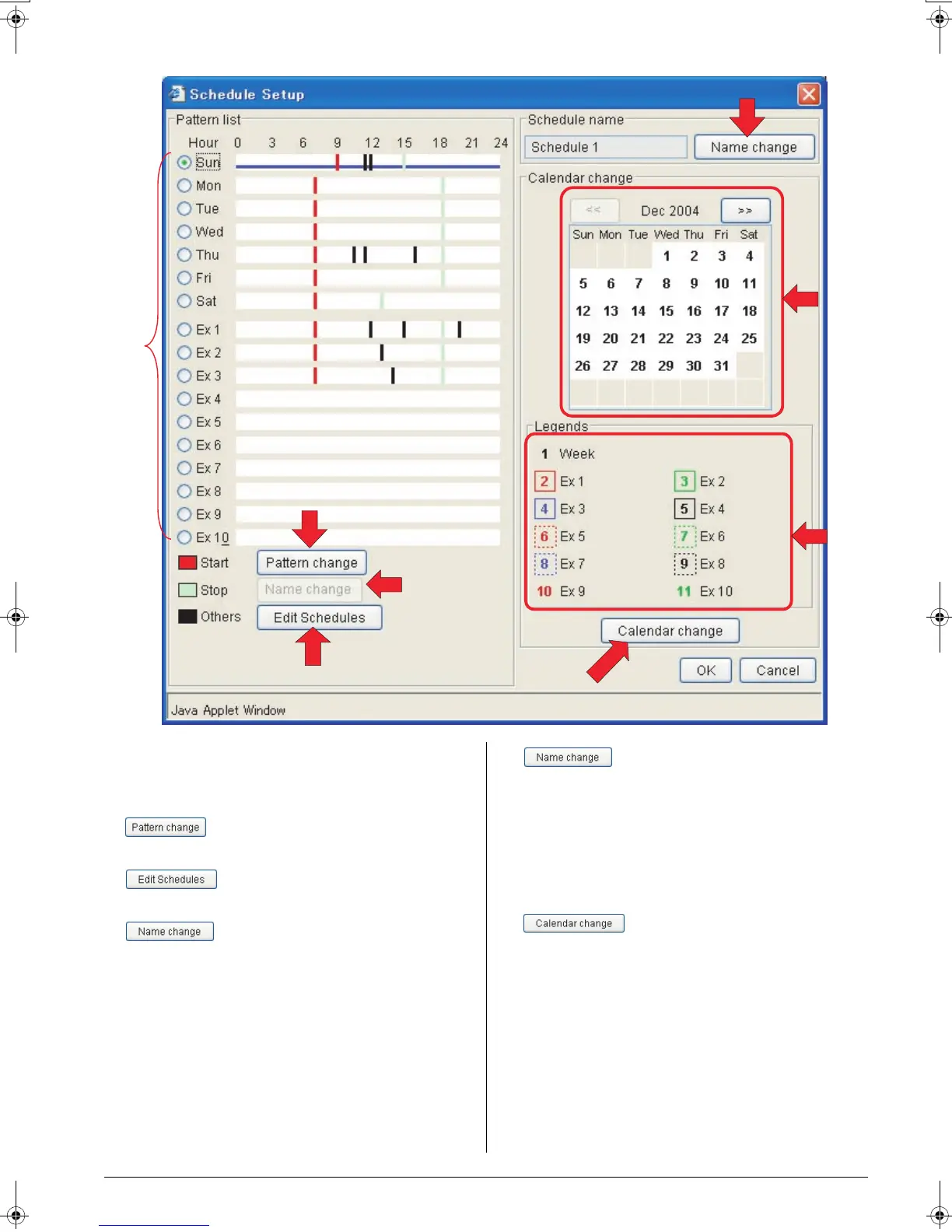

8-2 Schedule Setup dialog box
(1) Pattern radio buttons and Pattern bar
A Pattern bar displays various operations to be performed
for each day. Pattern radio buttons are used to select the
schedule pattern to be edited. (See page 43)
(2)
Changes schedule patterns. (See page 42)
(3)
Copies or deletes schedule patterns. (See page 46)
(4)
Renames Ex schedule patterns. (See page 47)
(5)
Renames schedule programs displayed on the main sched-
uling screen. (See page 47)
(6) Schedule Calendar area
Renames schedule programs displayed on the main sched-
uling screen. (See page 45)
(7) Legends area
Describes the symbols representing each schedule pattern.
(8)
Used to assign one or more dates to an Ex schedule.
(See page 45)
