www.DaikinApplied.com 11 CAT 258 • REBEL APPLIED ROOFTOP
• Outside air intake hood constructed from painted
galvanized steel for longer equipment life with moisture
eliminator lters to prevent water from entering the unit
promoting better IAQ
• Low Leak Dampers with 1.5 cm per square foot at
1" pressure
• Factory installed thermal dispersion Ebtron outdoor
airow measuring stations, independently calibrated
using NIST traceable standards to control ventilation with
an accuracy of +/- 5% at occupied ventilation rates

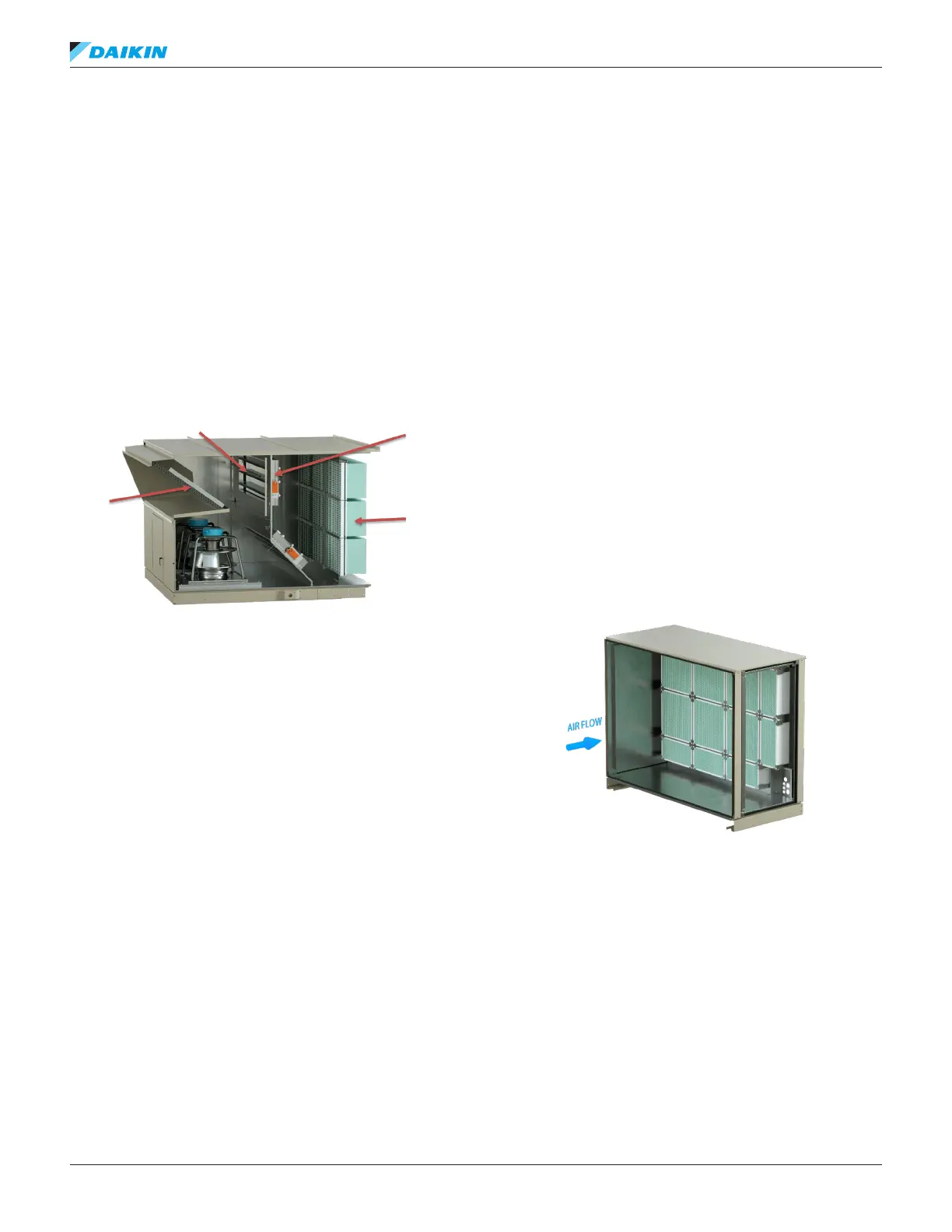

Figure 11: Rebel Applied Outside Air Control
• Standard draw-through lter section and an optional nal
lter section with dirty lter alarm
• An optional electronic pressure transducer measures
dirty lter status and can be monitored through the unit
controller or building automation system in accordance
with ASHRAE Standard 170 for Ventilation of Healthcare
Facilities
• An optional Magnahelic
®
pressure gauge is available on
each lter rack
• Draw-through lter options:
— 2" MERV 8
— 2" MERV 8 + 4” MERV 13
— 2" MERV 8 and a 4” MERV 15 cartridge lter
— 2" MERV 8 and a 12” MERV 11, or 14,16 and carbon
cartridge lters
• Blow-through Final Filter Options:
— 12" MERV 14 cartridge lter – side load
— 97% ecient BioCell MERV 16 – face load
— 99.9% ecient HEPA lter – face load
• Special lters available upon request
Figure 12: Face Load Filters
