Daikin DPSA - CURB DRAWINGS; Roof Curb Drawings and Dimensions

CAT 258 • REBEL APPLIED ROOFTOP 28 www.DaikinApplied.com



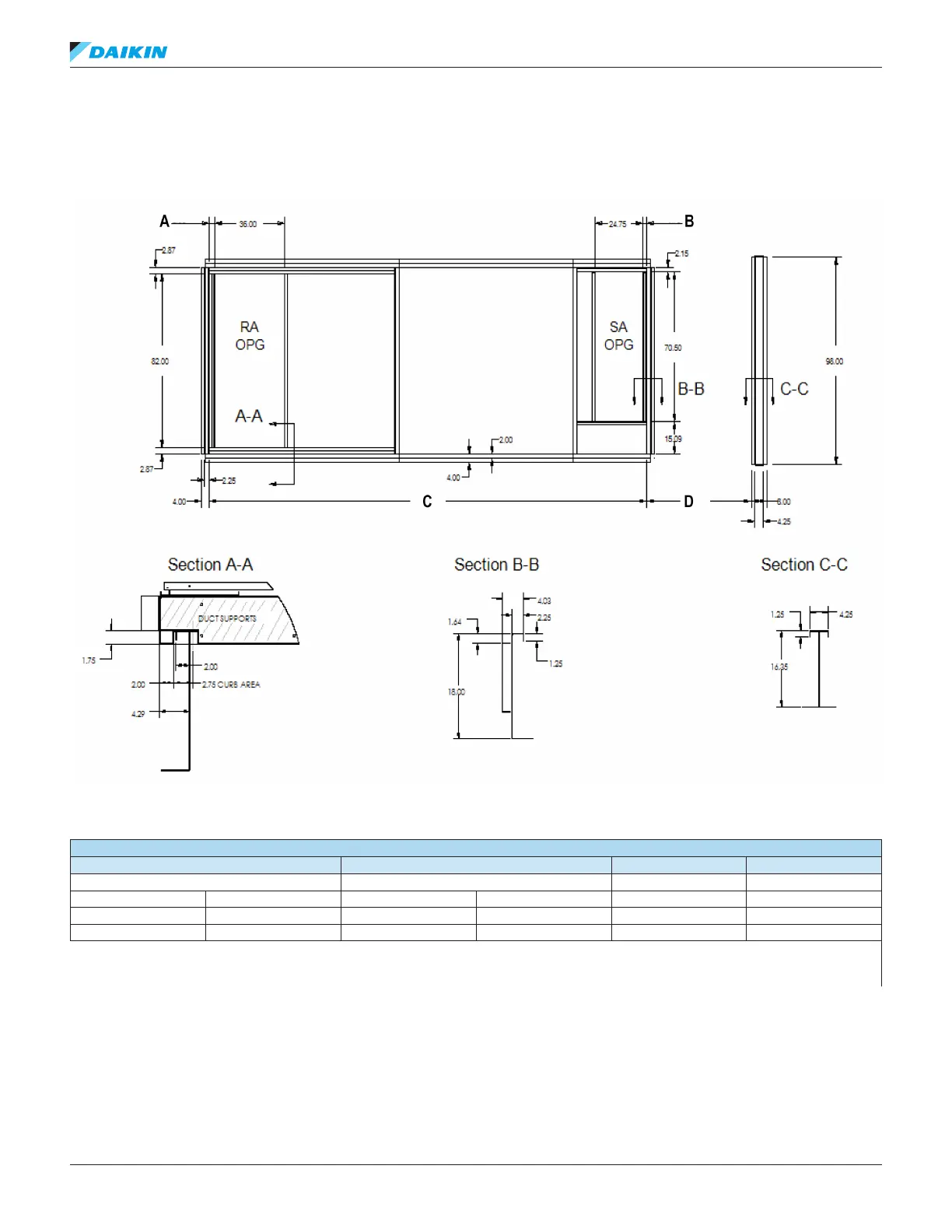

Figure 25: Example of Rebel Applied Roof Curbs
This roof curb drawing is representative and may not be correct for your application; drawings for a specic application need to be
generated by your Daikin Sales Representative using the DaikinTools
™
selection software.
Table 9: Roof Curb Variable Dimensions

 B  
Return End Conguration Out of Air Stream Vestibule AHU Length - 8" Condenser Size
Standard Return² 2.93 48" Section 49.78 Congured¹ 54"
High Static Exhaust 30.11 72" Section 73.78
Energy Recovery 56.11

1. The unit length is congured based on the application and selection. For exact job specic curb drawings, talk with your Daikin Sales Representative.
2. Standard Return Includes, 0-30% OA, 100% OA, Economizer with Low Pressure Exhaust, Economizer with Return Fan, Economizer with O󰀨set Return Fan
