www.DaikinApplied.com 15 CAT 258 • REBEL APPLIED ROOFTOP
• The Rebel Applied fan array can be sized to oer
redundant operation in the event of a fan failure
• Each fan communicates to via Modbus
®
and speed, and
alarm are reported through the MicroTech 4 controller. In
the event of a fan failure, the other fans can be sped up
to keep the rooftop unit operational
• Optional backdraft dampers are available on the supply
fan array to prevent recirculation during a fan failure

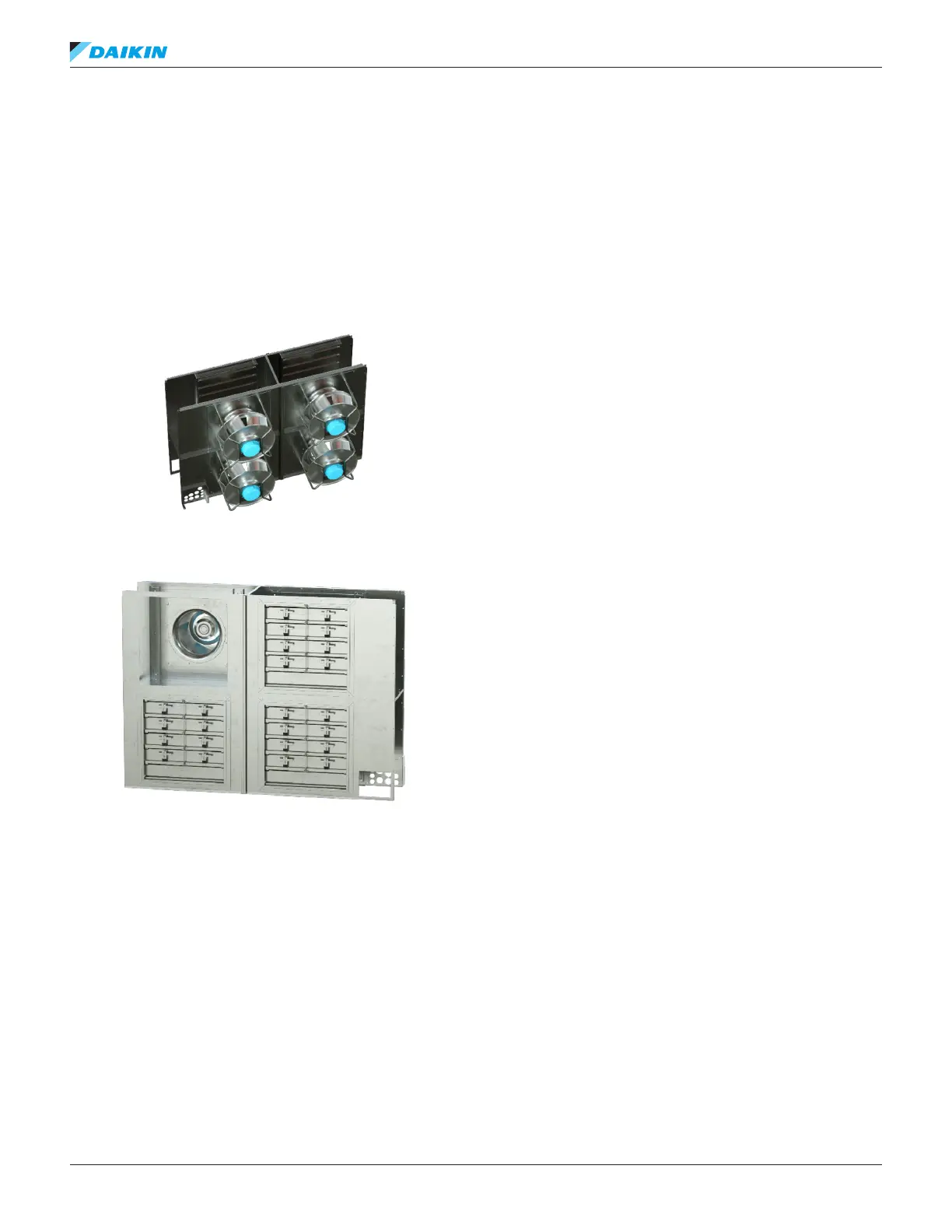

Figure 19: ECM Fan Array with Backdraft Dampers
Figure 20: Backdraft Dampers
Sound
• EC plenum fans oer industry leading quiet operation
• Rebel Applied fan array congurability allows for sound
application optimization
• High and low voltage wiring separated in the main control
panel and throughout the unit
• Units are completely wired and tested at the factory, with
control wiring routed in an accessible, protective wire
raceway at the base of the unit
• Wiring complies with NEC requirements and all applicable
UL standards
• For ease of use, wiring and electrical components are
number coded and labeled according to the electrical
diagram
• Units have an optional 115V convenience receptacle
• Supply and return air fan motors, compressor motors,
and condenser fan motor branch circuits have individual
short circuit protection
• All units are provide with a single point power connection
with a power block or disconnect switch
• A unit-mounted disconnect includes a service handle on
the exterior of the control panel door
• Electrical power feeds inside the perimeter roof curb
through factory provided knockouts in the bottom of the
main control panel
• Dual disconnects are available to satisfy emergency
power requirements. Supply and return fan motors and
controls are on the emergency power circuit and the
balance of the unit is on the other
• Phase-failure/under-voltage protection is available
to protect equipment function from abnormal power
conditions
• Standard unit SCCR (Short Circuit Current Rating) is
10 KAIC and high SCCR protection is available up to
65 KAIC
