6 Electrical installation
Installation manual
22
EBSH/X(B)11+16P50D
Daikin Altherma 3 R ECH₂O
4P759878-1 – 2024.01
Item Description
Human Comfort
Interface
See:
▪ Installation and operation manual of
the Human Comfort Interface
▪ Addendum book for optional
equipment
Wires: 2×(0.75~1.25mm²)
Maximum length: 500m
[2.9] Control
[1.6] Room sensor offset
WLAN module See:
▪ Installation manual of the WLAN
module
▪ Addendum book for optional
equipment
Use the cable delivered with the
WLAN module.
[D] Wireless gateway
for room thermostat (wired or wireless):
In case of… See…
Wireless room thermostat ▪ Installation manual of the wireless
room thermostat
▪ Addendum book for optional
equipment
Wired room thermostat
without multi-zoning base
unit
▪ Installation manual of the wired room
thermostat
▪ Addendum book for optional
equipment
Wired room thermostat
with multi-zoning base unit
▪ Installation manual of the wired room
thermostat (digital or analogue) +
multi-zoning base unit
▪ Addendum book for optional
equipment
▪ In this case:
▪ You need to connect the wired
room thermostat (digital or
analogue) to the multi-zoning base
unit
▪ You need to connect the multi-
zoning base unit to the outdoor unit
▪ For cooling/heating operation, you
also need to implement a relay
(field supply, see addendum book
for optional equipment)

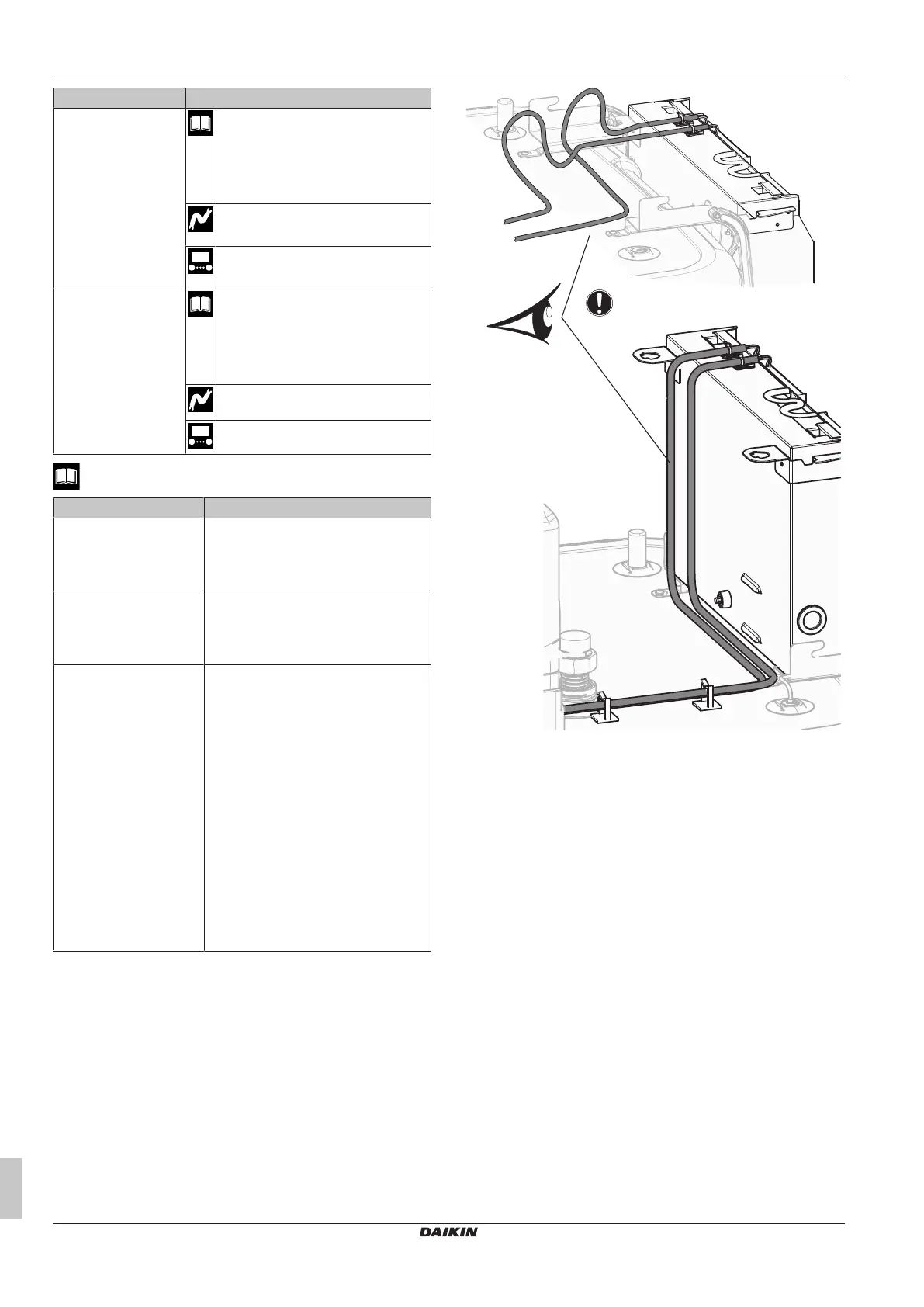

6.3.1 To connect the electrical wiring to the
indoor unit
Remark: All cables which will be connected to the switch box of the
ECH
2
O must be fixed by strain relief.
To have easier access to the switch box itself and the routing of
cables the switch box can be lowered (see "4.2.1To open the indoor
unit"[413]).
If the switch box is lowered in service position while the electrical
installation is done, additional cable length has to be taken into
account adequately. The cable routing in normal position is longer
than in service position.
All cables which will be connected to the switch box of the ECH
2
O
must be fixed by strain relief.
