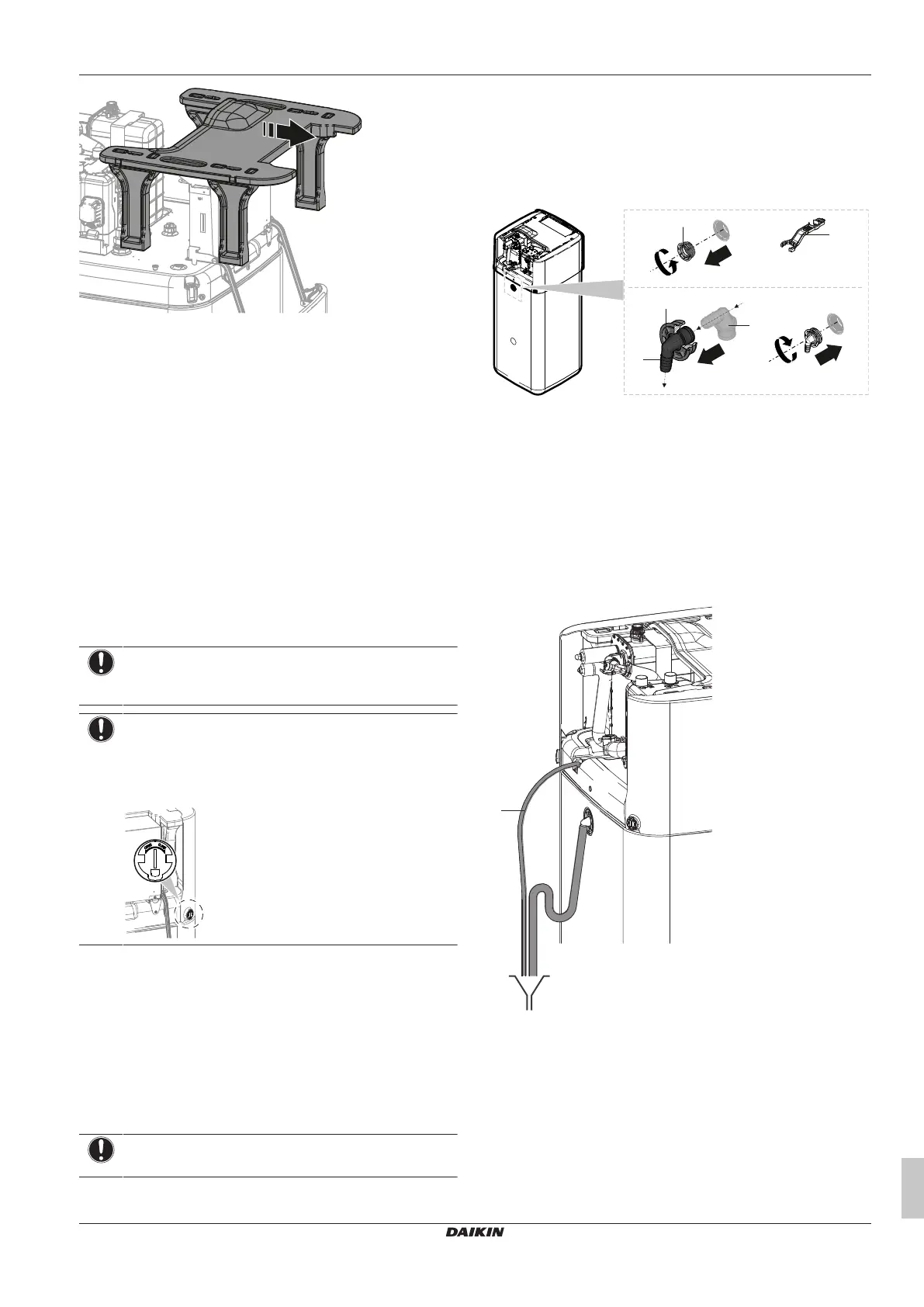

4.2.2 To close the indoor unit
1 Reconnect the ground connection to the top cover of the switch
box.
2 Close the cover of the switch box.
3 Place the top cover on the top of the unit.
4 Check that the front legs of the top cover are correctly fitted on
the mounting.
5 Hang the side panels into the top cover.
6 Check that the hooks of the side panel slide correctly into the
cut-outs in the top cover.
7 Check that the locking parts of the side panels slide onto the
plugs of the tank.
8 Close the locking parts of the side panels.
9 Put the switch box back into place.
10 Close the user interface panel.
NOTICE
When closing the indoor unit, make sure that the tightening
torque does NOT exceed 4.1N•m.
NOTICE
Close at least one locking part per side panel. If you
cannot reach the locking parts on the back of the indoor
unit, it is sufficient to close only the locking parts on the
front.
4.3 Mounting the indoor unit
4.3.1 To install the indoor unit
1 Lift the indoor unit from the pallet and place it on the floor. Also
see "3.1.2To handle the indoor unit"[45].
2 Connect the drain hose to the drain. See "4.3.2To connect the
drain hose to the drain"[415].
3 Slide the indoor unit into position.
NOTICE
Level. Make sure the unit is level.
4.3.2 To connect the drain hose to the drain
Spillover water from the water storage tank as well as water
collecting in the drain pan must be drained. You must connect the
drain hoses to an appropriate drain according to the applicable
legislation.
1 Open the screw plug.
a
a
c
c
b
1
3
2
a Screw plug
b Assembly wrench
c Spillover connector
2 Insert the spillover connector into the screw plug.
3 Mount the spillover connector.
4 Attach a drain hose to the spillover connector.
5 Connect the drain hose to an appropriate drain. Ensure the
water can flow through the drain hose. Ensure that the water
level cannot mount above the overspill.
6 Connect the drain pan hose to the drain pan connection and
connect to an appropriate drain.
a
a Drain pan hose
7 Connect the pressure relief valve to an appropriate drain in
accordance with the applicable legislation. Ensure that any
steam or water that may escape is drained in a frost-protected,
safe and observable manner.
